Industrial Gigabit Non-PoE Media Converter Switch – RJ45 + SFP/Dual Fiber

AED 875.00

In stock

Product Model

FOE-IMC-GB-1E1S-4E1S-1E2F-4E2F

Astel Industrial Media Converter and Switch is an ideal solution for IP Surveillance, wind, electricity, assembly automation, subway PIS,
power SCADA, sewage treatment, metallurgy, intelligent transportation, rail transportation, military and other
industries.

Model: AST-IMC-GB-1E1S / AST-IMC-GB-4E1S / AST-IMC-GB-1E2F / AST-IMC-GB-4E2F

MAIN FEATURES:

1/4x10/100/1000 Base-T RJ45 port, 1*1000 Base-X fiber port (SFP/SC/ST/FC optional)

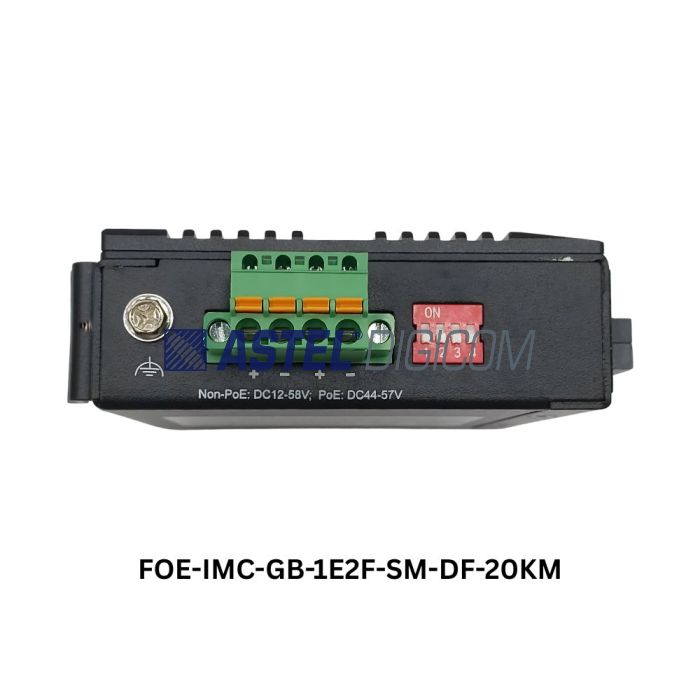

Redundant DC12-58V power input with polarity reverse protection
Powerful DIP switch function(on the top panel)
Support 10K bytes jumbo frame
Support 4KV surge protection and ESD: Air-15KV, Contact-8KV protection
IP40 fan-less and Din-rail design
Operation temperature: -40°C~+75°C

Details

Model: AST-IMC-GB-1E1S / AST-IMC-GB-4E1S / AST-IMC-GB-1E2F / AST-IMC-GB-4E2F

MAIN FEATURES:

1/4x10/100/1000 Base-T RJ45 port, 1*1000 Base-X fiber port (SFP/SC/ST/FC optional)
Redundant DC12-58V power input with polarity reverse protection
Powerful DIP switch function(on the top panel)
Support 10K bytes jumbo frame
Support 4KV surge protection and ESD: Air-15KV, Contact-8KV protection
IP40 fan-less and Din-rail design
Operation temperature: -40°C~+75°C

Technical specification

More Information

Technical specification

Application:

Any network utilizing a mixture of copper and fiber
IP connectivity and communication
CCTV system such as network camera, access control

Product Name	Industrial Media Coverter Ethernet Switch
Port	1/4*10/100/1000M Ethernet + 1 port 1000M Fiber
Network Medium	10BASE-T: Cat3, 4, 5 or above UTP(≤100 meters)
	100BASE-TX: Cat5 or above UTP(≤100 meters)
	1000BASE-TX: Cat5 or above UTP(≤100 meters)
Network Protocol	IEEE 802.3 10Base-T Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet
Fiber Option	Hot Plug-able Module (LC) or 1*9 Fixed Module (SC/ST/FC), 1000M based
	SM: 1310nm/1550nm, 20Km; 1490nm/1550nm, 40~100Km
	MM: 1310nm, 2Km; 850nm, 500-meter
	Remark: It is NOT supporting 100M SFP Module
Switching Capacity	10Gbps
Throughput	14.88Mpps
Packet Buffer	3M
MAC Address	2K
VLAN	4K
Jumbo Frame	10Kbytes
Transfer Mode	Store and forward, forwarding delay<5us
MDX/MIDX	Support
Watchdog	Support
Network Topology	Star topology
	Bus topology
	Tree Topology
MTBF	200,000 hours
Input Voltage	DC12-58V, Redundant Input, Typically DC12V/DC24V/DC48V
	Removable 4 PIN Industrial Terminal Block
Input Current	0.5A Max
Total Power Consumption	Full loading≤5W
Reverse Polarity Protection	Support
Industry Standard	Surge protection of power: IEC 61000-4-5 Level 3(4KV/2KV)(8/20us)
	Surge protection of Ethernet ports: IEC 61000-4-5 Level 3(4KV/2KV)
	(10/700us)
	DIP: IEC 61000-4-11 Level 3(10V)
	ESD: IEC 61000-4-2 Level 4(8K/15K)
	Shock: IEC 60068-2-27
	Free fall: IEC 60068-2-32
	Vibration: IEC 60068-2-6
	Protection Level IP40
Installation	Din Rail or Wall Mounted(1pc mounting hanger is offered)
Certification	CE/FCC/RoHS/Reach/UKCA
Working Environment	Working Temperature: -40°C~+75°C
	Storage Temperature: -40°C~+85°C
	Relative Humidity: 5%~95%, non-condensing
DIP	1. Port Isolation
	2. Flow control
	3. QoS(1-2 ports)
	4. Broadcast storm restrain
Certification	CE/FCC/RoHS/Reach/UKCA
Working Environment	Working Temperature: -40°C~+75°C
	Storage Temperature: -40°C~+85°C
	Relative Humidity: 5%~95%, non-condensing
DIP	1. Port Isolation
	2. Flow control
	3. QoS(1-2 ports)
	4. Broadcast storm restrain
LED Indicators	PWR(Power indicator), Green Color
	On: power status is normal
	Off: power off or power connection failure
	S(System indicator), Red Color
	On: the chip read/write is abnormal
	Off: the chip is normally operating
	Ethernet Port
	1. Green Indicator
	On: port link up
	Off: port link down
	Blinking: data is in normal transmission
	2. Yellow Indicator
	On: port speed is 1000M
	Off: port speed is 10/100M
	Fiber port, Green Color
	On: port link up
	Off: port link down
	Blinking: data is in normal transmission

Ordering Information:

Industrial Ethernet Switch (Non-PoE & Unmanaged Series), DC12V~DC58V, Din Mounted
AST-IMC-GB-1E2F	1*1000M Fiber + 1/100/1000M RJ45
AST-IMC-GB-4E2F	1*1000M Fiber +4x10/100/1000M RJ45
AST-IMC-GB-1E1S	1*1.25G SFP+1x10/100/1000 M RJ45
AST-IMC-GB-4E1S	1*1.25G SFP+4x10/100/1000 M RJ45
Industrial Din Power Adapter(-40°C~+75°C)
AST-PSU-20W-12V1.67A	90-264VAC Input, 12VDC Output, 1.67A, 20W, Plastic Case,Din Mounted
AST-PSU-20W-24V0.83A	90-264VAC Input, 24VDC Output, 0.83A, 20W, Plastic Case,Din Mounted

Remark

Power adapter is NOT included in the packing box, need to purchase individually
Listed power adapter specifications are COMMONLY used for this device

Packing List:

Product size:	130x98x30mm
Inner box size:	184x150x50mm
Product weight:	0.55Kg
Packing weight:	0.7Kg
Master box size:	385x330x320mm
Packing quantity:	24Pcs
Packing weight:	17Kg

Remark

Accessories (optical module, power supply, patchcord etc.) are NOT included in the packing box

Disclaimer:

1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
