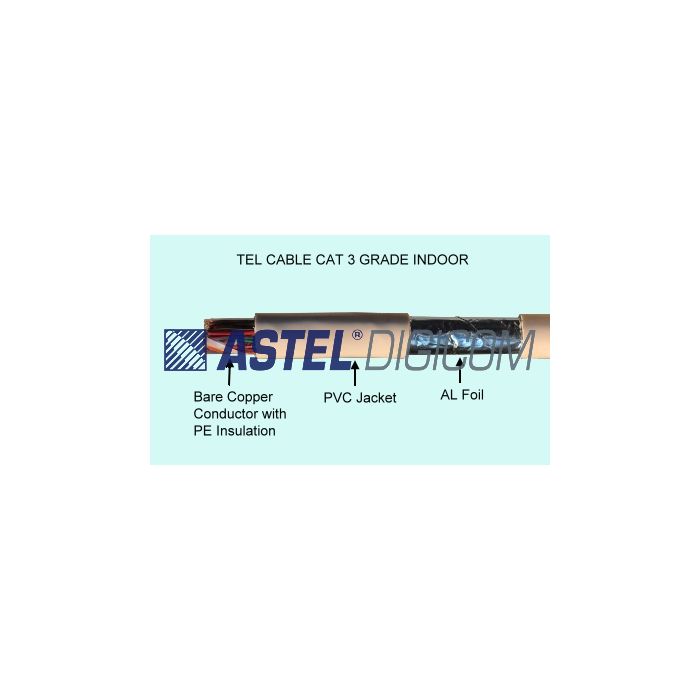

Astel Shielded Indoor cable series consist of 10P to 100P CAT3 grade Cables with 100 ohms impedance. These cables are used for Horizontal and Vertical installation for interconnection of Voice and Data networks in between buildings, villa compounds, housing complex. All cables fully conform to and provide a substantial margin above CAT3 EIA/TIA 568B2 requirements.
Astel Shielded Indoor cable series consist of 10P to 100P CAT3 grade Cables with 100 ohms’ impedance. These cables are used for Horizontal and Vertical installation for interconnection of Voice and Data networks in between buildings, villa compounds, housing complex. All cables fully conform to and provide a substantial margin above CAT3 EIA/TIA 568B2 requirements
Two insulated wires twisted together. The twist length specially esigned to minimize the capacitance unbalance and cross talk.
Individual Pair Shielding
NO
Twisted wires are assembled to form substantially cylindrical groups
of ten pairs (called unit). Super units that assembled with suitable
Cable Core
number of units, which are banded with durable coloured tapes
and cables to complete the cable core.
1 st
Shielding
AL-Foil
1 st Shielding Coverage
1P0V0C%
2 nd Shielding
NO
2 nd
Shielding Coverage
5.0N0±A0.3
Jelly Filled
NO
Jacket Material
PVC
Jacket Thickness
mm
See Table 1
Outer Dia
mm
See Table 1
Rip Cord
Yes
Drain Wire
BC, 0.5mm
Color
Black
Jacket Tensile Strength
Mpa
≥13.5 Mpa (as per IEC 60332-1 requirements)
Jacket Elongation
%
≥150% (as per IEC 60332-1 requirements)
Short Term Bending Radius XD
8 x OD
Long Term Bending Radius XD
4 x OD
Electrical and MechanicalParameters:
Impedance
Ohms
100 ± 15 (@ 1-16 MHz)
Frequency Range
MHz
1-16 MHz
DC Resistance for Conductor
Ohms/Km
93
DC Resistance Unbalance
%
5 %
gCraopuancditance Unbalance to
pf /1000m
3300 pf/KM @ 1 KHz
Velocity of propagation
%
67.7 %
Delay Skew
ns/100m
≤45ns
Dielectric Strength (pair to pair)
KV/min
1.5
Dielectric Strength (pair to ground)
KV/min
6.0
Insulation Resistance
MOhms.km
5000 Mega Ohms. KM Min at 500 VDC
Operating Temp Range
°C
-20°C to +65°C
FrequencyMHz
Insertion dB/100mMax
NEXTdB Min
PS NEXTdB Min
SRLdB Min
Prop Delay ns/100m Max
PSNEXT (≥dB)
ELFEXT (≥dB)
PSELFEXT (≥dB)
0.772
2.2
41.0
43.0
12.0
575
1.00
2.6
41.0
41.0
12.0
570
41.3
39.0
39.0
4.00
5.6
32.3
32.3
12.0
552
32.3
26.9
26.9
20.9
8.5
27.8
27.8
12.0
546
27.8
20.9
20.9
10.0
9.7
26.3
26.3
12.0
545
26.3
19.0
19.0
16.00
13.1
23.3
23.3
10.0
543
23.3
14.9
14.9
HCS P/N
Description
Jacket( thickness)
OD (mm)
Weight (Kg/KM)
Packaging
FTP-CAT3-BC-10PVC
C10AxT23x 2B4C FPTVPC
0.9±0.2mm
9.00±0.1mm
305m
FTP-CAT3-BC-20PVC
C20AxT23x 2B4C FPTVPC
1.0±0.2mm
11.0±0.2mm
305m
FTP-CAT3-BC-30PVC
C30AxT23x 2B4C FPTVPC
1.1±0.2mm
13.1±0.3 mm
305m
FTP-CAT3-BC-50PVC
C5A0xT23 xB24C FPTVPC
1.2±0.2mm
20.5±0.4 mm
305m
FTP-CAT3-BC-100PVC
1C0A0Tx32 xB2C4 PFVTCP
1.2±0.2mm
24.0±0.4mm
305m
Disclaimer 1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted)
