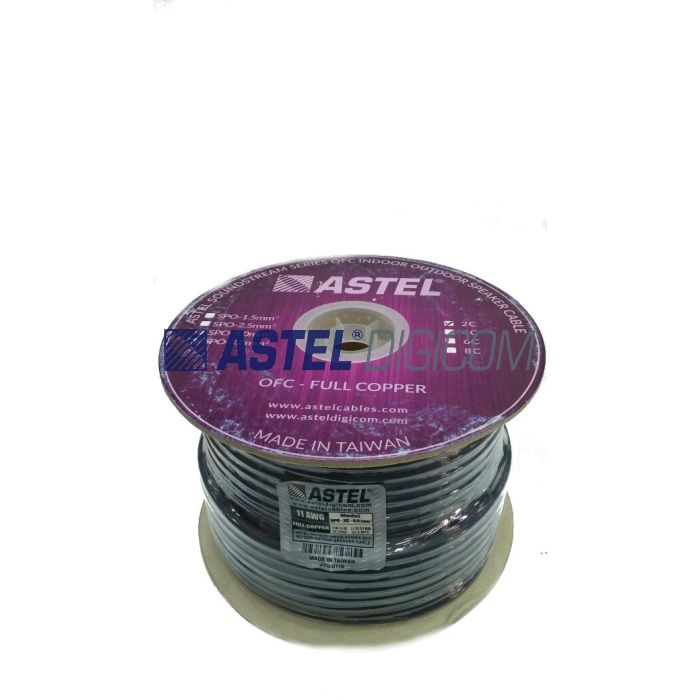

ASTEL Indoor & Outdoor 2 Core OFC Speaker Cable – SPO Series
Available in 2C × 3.00mm² (12 AWG) and 2C × 4.00mm² (11 AWG), the cable features a PVC outer jacket, flexible stranded copper construction and an integrated ripcord. It is suitable for shopping malls, conference halls, school auditoriums, garden speaker systems, stage shows and outdoor light and sound installations.
Key Features
-
Product series: SPO-2C-XX
-
2-core indoor and outdoor speaker cable
-
High-purity 99.99% Oxygen Free Copper (OFC)
-
Stranded copper conductor construction
-
Available sizes: 2C × 3.00mm² and 2C × 4.00mm²
-
Conductor size: 12 AWG (3.00mm²) and 11 AWG (4.00mm²)
-
Conductor structure: 399 × 0.10mm (3.00mm²)
-
Conductor structure: 511 × 0.10mm (4.00mm²)
-
Insulated conductor diameter: 3.50mm / 4.00mm
-
PVC outer jacket
-
Overall cable diameter: 9.00mm / 10.50mm
-
Unshielded cable construction
-
Integrated ripcord
-
Dielectric strength: 2000V/5m (as specified)
-
Nominal conductor DC resistance: 5.65Ω/km (3.00mm²)
-
Nominal conductor DC resistance: 4.55Ω/km (4.00mm²)
-
Conductor-to-conductor capacitance: 147.93pF/m / 170.20pF/m
-
Jacket tensile strength: greater than 11 MPa
-
Jacket elongation: greater than 250%
-
Standard coil length: 100 yards (91.2 metres)
-
250-metre reel option listed for 3.00mm²
-
Sequential metre markings
-
Suitable for indoor speaker systems and wall-mounted speakers
-
Suitable for shopping malls, conference halls and school auditoriums
-
Ideal for garden speaker systems, stage shows and outdoor light and sound installations
| Technical specification |
* All measurements adjusted for ambient temp of 20 degC. * DC resistance changes at the rate of 0.393% / Deg C. * Sequential meter marking on all cables. * Smaller core sizes cables also available. Please see our series SPK-2C-XX (Speaker Twin Parallel OFC Cables) * Shielded Speaker Cables also available, please see ASTEL Series SPS-2C-XX * NA- Not available |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
