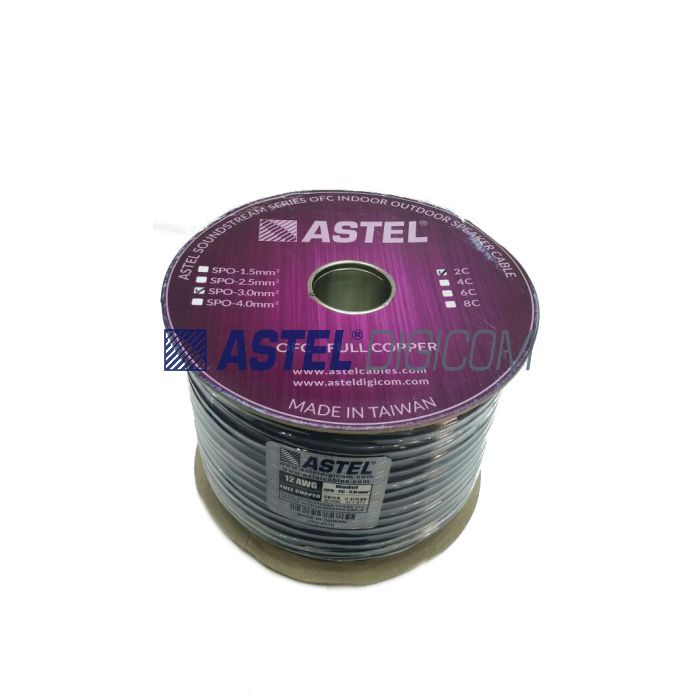

Indoor Outdoor Speaker Cable ASTEL Sound Stream Series OFC Speaker cables

AED 0.00
In stock
Product Model
SPO-2C-3.0mm2-STRIP

    • Astel lousdspeaker cables use high purity OFC (Oxygen free Copper 99.99% Purity) ad low contamination plastics to assure high precision music transmission and long operating life.

    Astel lousdspeaker cables use high purity OFC (Oxygen free Copper 99.99% Purity) ad low contamination plastics to assure high precision music transmission and long operating life.

    More Information
    Technical specification
    Main Applications

    1) Indoor speaker systems
    2) Shopping Malls
    3) Conference Hall
    4) School auditoriums
    5) Wall Mount Speakers
    6) Garden Speaker Systems
    7) Stage Shows
    8) Outdoor Light and Sound shows

    Model Product 2Cx3.00mm2 2Cx4.00mm2
    Conductor 1&2 OFC (Stranded Oxygen Free Copper) OFC (Stranded Oxygen Free Copper)
    Conductor Structure 399x0.10 511x0.10
    Conductor Cross Section
    Area    		 3.00 mm2 4.00 mm2
    Conductor AWG 12 AWG 11 AWG
    Dia with Insulation (mm) 3.50 mm 4.00 mm
    Jacket Material PVC PVC
    Outer Diameter 9.00 mm 10.50 mm
    Rip Cord YES YES
    Shielding Wires NA NA
    Electric Specifications
    Dielectric Strength 2000V/5m 2000V/5m
    Nominal DCR
    for BC (Ohms/Km)    		 5.65 4.55
    Nominal DCR
    for Shielding (Ohms/km)    		 NA NA
    Capacitance Conductor to Conductor (pf/M) 147.93 170.20
    Capacitance Conductor to Shielding (Pf/M) NA NA
    Tensile Strength of Jacket (Mpa) >11 Mpa >11 Mpa
    Elongation (%) >250% >250%
    Packing
    Length each coil 100Y (91.2mts) 100Y (91.2mts)
    Weight each coil 100Y 12.25 Kg 16.50 Kg
    Number of coils in 1 carton 2 1
    Weight of each carton 25.10 17.00 Kgs
    Size of each carton (cm) 0.024 cbm 0.026 cbm
    Weight each Reel 250 mts 35.40 NA
    Size each Reel 250 mts (cm) 0.049 cbm NA


    Notes:
    * All measurements adjusted for ambient temp of 20 degC.
    * DC resistance changes at the rate of 0.393% / Deg C.
    * Sequential meter marking on all cables.
    * Smaller core sizes cables also available. Please see our series SPK-2C-XX (Speaker Twin Parallel OFC Cables)
    * Shielded Speaker Cables also available, please see ASTEL Series SPS-2C-XX
    * NA- Not available
