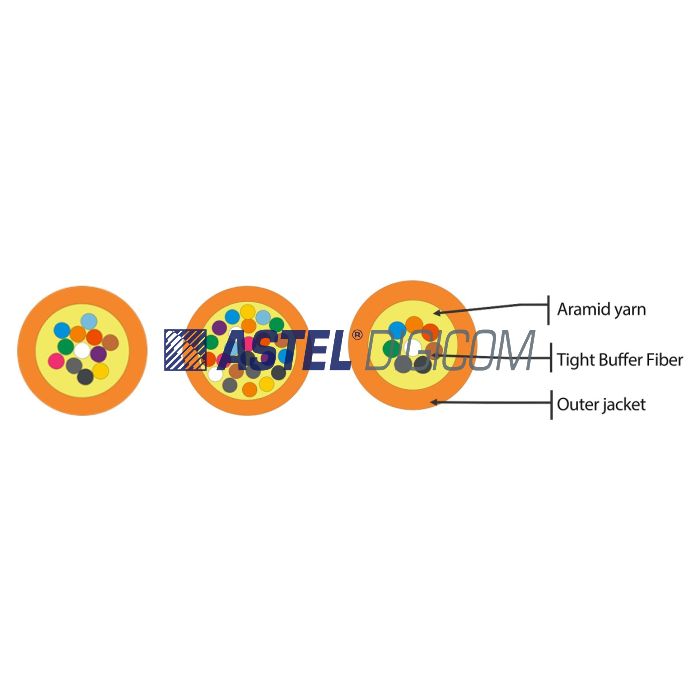

INDOOR FIBER OPTIC CABLE

AED 0.00

In stock

Product Model

GJFJV 2/4/6/8/12/24/48 CORES

These are indoor cables with higher tensile strength and crush resistance. Fiber Count: 2~12.

Details

These are indoor cables with higher tensile strength and crush resistance. Fiber Count: 2~12.

Technical specification

More Information

Technical specification

Applications

1) Used as pigtails for interconnection in high end communication equipments.

2) Building Interconnections.
3) PVC can be used along the wall, ceiling and between layers and in ducts.

Jacket Options

1) YELLOW: Single mode fiber G652D Q/125um.
2) ORANGE: Multimode fiber OM1 62.5/125um.
3) AQUA: Multimode fiber OM3 50/125um.
4) AQUA: Multimode fiber OM4 50/125um.
5) OTHER COLORS: Available on Request.
6) PVC Jacket - High Sheath PVC
7) LSZH: Low Smoke Zero Halogen (LSOH)

Model	NominalFiber Count OD(mm) Weight(kg/km)			Max. Tension (N) Max. CrushResistance (N/100)				Min. BendingRadius
				Short-term Long-term Short-term Long-term Installation					Static
GJFJV(Y)	2	4.1+-0.2	15	270	90	1000	300	20D	10D
GJFJV(Y)	4	4.8+-0.2	18	270	90	1000	300	20D	10D
GJFJV(Y)	6	5.2+-0.2	23	330	110	1000	300	20D	10D
GJFJV(Y)	8	6.2+-0.2	29	480	160	1000	300	20D	10D
GJFJV(Y)	12	6.8+-0.3	37	600	200	1000	300	20D	10D
GJFJV(Y)	24	8.4+-0.5	61	720	240	1000	300	20D	10D
GJFJV(Y)	48	12.5+-0.5	121	1600	520	1000	300	20D	10D

Parameter	Unit	9/125SMF-OS2	62.5/125MMF-OM1	50/125MMF-OM2	50/125MMF-OM3	50/125MMF-OM4
Attenuation (See Note 1)	dB/Km	1310nm≤0.351550nm≤0.22	850 nm≤3.01300 nm≤0.8	850 nm≤3.01300 nm≤0.7	850 nm≤2.31300 nm≤0.7	850 nm≤2.31300 nm≤0.7
Dispersion	Ps/nm.km	1285~1330nm≤3.51550nm≤18.0	_	_	_	_
Fiber diameter	um	9/125 um	62.5/125 um	50/125 um	50/125 um	50/125 um
Effective Modal Bandwidth	EMB		850 nm≥200	850 nm≥750	850 nm≥2000	850 nm≥4700
Zero dispersion wavelength	Nm	1300~1324	_	_	_	_
ZTeercoh ndiicsapl erSspioecni fsilcoaptieons	Ps/nm.km	≤0.095	_	_	_	_
Fiber cutoff wavelength	um	≤1260	_	_	_	_
Mode field diameter	um	@@11535100nnmm--190..24±±00..48	_	_	_	_
Mode field concentricity	um	≤0.8	_	_	_	_
Cladding diameter	um	125±1.0	125±2.0	125±1.0	125±1.0	125±1.0
Cladding non-circularity	%	≤1.0	≤2.0	≤1.0	≤1.0	≤1.0
cCoonactienngt/riccliatdy deirnrgor	um	≤12.5	≤12.5	≤12.5	≤12.5	≤12.5
Coating diameter	um	245±10	245±10	245±10	245±10	245±10

Note 1:Fiber attenuation for tight buffer cables is little higher than bare fibers.
Note 2:For more detailed specification on Fiber Core Characteristics, please write to us at asteldigicom@eim.ae or visit fiber core manufacturer’s website.

Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly
caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
