HP1G 1x3 Indoor Splitters 5-1000 MHz

AED9.00
In stock
Product Model
HP1G-3UB
    • Astel HP1G Series Indoor Splitters are designed with state of the art Components and Ferrite parts for usage in Digital and Analog SMATV, CATV, MATV Networks. These passives can be used in Analogue PAL as well as DVB-C, DTT (COFDM, DVB-T, DVVB-T2) signals. The enhanced performance of these series makes them suitable for all future CATV, MATV, One way or two way interactive networks.
    Splitter divide the input signal into equal parts. Signal is attenuated between Input and Output ports. Depending on the split (1x2, 1x3, 1x4, 1x6, 1x8, 1x12, 1x16), the signal is attenuated between the input and output ports. Higher the split, higher the attenuation. Typically every 1x2 split, attenuates the input by 3.0 dB.

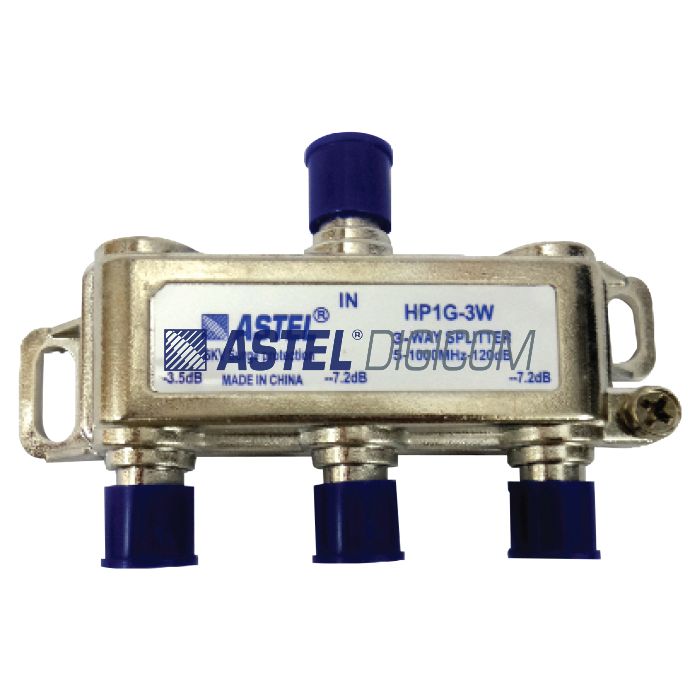

    main product photo
    Astel HP1G Series Indoor Splitters are designed with state of the art Components and Ferrite parts for usage in Digital and Analog SMATV, CATV, MATV Networks. These passives can be used in Analogue PAL as well as DVB-C, DTT (COFDM, DVB-T, DVVB-T2) signals. The enhanced performance of these series makes them suitable for all future CATV, MATV, One way or two way interactive networks.
    Splitter divide the input signal into equal parts. Signal is attenuated between Input and Output ports. Depending on the split (1x2, 1x3, 1x4, 1x6, 1x8, 1x12, 1x16), the signal is attenuated between the input and output ports. Higher the split, higher the attenuation. Typically every 1x2 split, attenuates the input by 3.0 dB.
    More Information
    Technical specification
    Main Features

    1) Excellent performance for CATV Networking with forward and reverse path (downstream and upstream networks).
    2) Frequency range 5 MHz up to 1.0 GHz
    3) Zinc die-cast housing with corrosion protection.
    4) High precision machine threaded F-ports
    5) Glass PCB microstrip design and HI-Q capacitors for consistency in specifications and excellent high frequency characteristics.
    6) Voltage blocking capacitors on all ports.
    7) Improved hum modulation and intermodulation specifications and protection against spikes and ferrite saturation due to high level upstream signals.
    8) Low intermodulation 18 dB.
    9) 6 KV surge protection.

    Frequency MHz 2 way HP1G-2W 3 way HP1G-3WUB 3 way HP1G-3W 4 way HP1G-4W 6 way HP1G-6W 8 way HP1G-8W 16 way SPL-1X16
    Insertion Loss (Input and Output) (Max dB)
    5-15 3.5±0.2 3.5/7.5±0.2 5.7±0.4 7.1±0.2 10.00 11.00 14.00
    15-40 3.5±0.2 3.5/7.4±0.2 5.8±0.3 7.0±0.2 10.50 11.00 14.50
    40-550 3.5±0.2 3.5/7.4±0.2 6.2±0.3 7.1±0.2 11.00 11.50 16.00
    550-110 3.5±0.2 3.5/7.5±0.2 6.5±0.3 7.5±0.3 11.50 12.00 16.50
    Isolation (Input and Output) (Min dB)
    5-15 22.00 22.00 22.00 22.00 25.00 25.00 22.00
    15-40 35.00 35.00 35.00 35.00 25.00 25.00 22.00
    40-550 23.00 23.00 23.00 23.00 22.00 22.00 22.00
    550-110 20.00 20.00 20.00 20.00 22.00 22.00 22.00
    Return Loss Input (Min dB)
    5-15 23.00 23.00 23.00 23.00 18.00 18.00 17.00
    15-40 26.00 26.00 26.00 26.00 20.00 20.00 18.00
    40-550 23.00 23.00 23.00 23.00 20.00 20.00 18.00
    550-110 20.00 20.00 20.00 20.00 18.00 18.00 18.00
    Return Loss Output (Min dB)
    5-15 23.00 27.00 27.00 27.00 20.00 20.00 18.00
    15-40 30.00 30.00 30.00 30.00 20.00 20.00 18.00
    40-550 22.00 22.00 22.00 22.00 20.00 20.00 18.00
    550-110 20.00 20.00 20.00 20.00 18.00 18.00 18.00


    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
