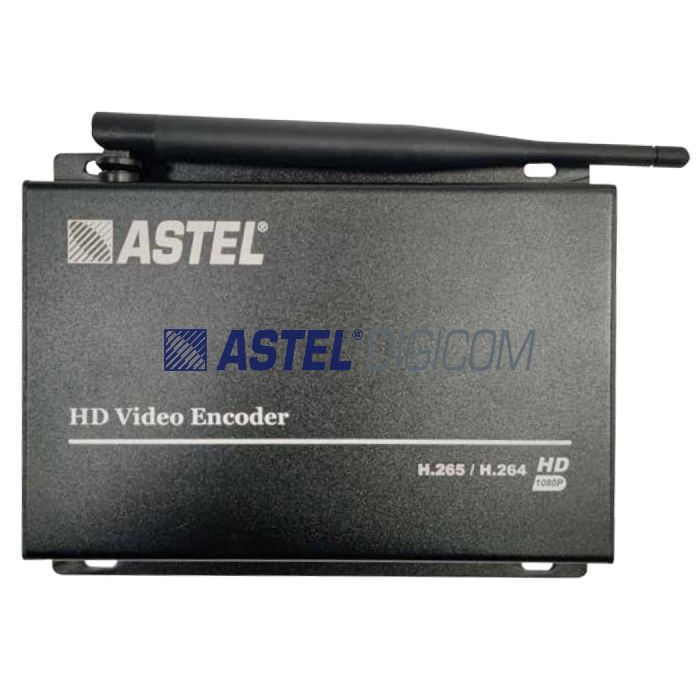

main product photo

HDMI to IP Encoder H264

AED 800.00
In stock
Product Model
AST-HDMI-IP-ENC-1080P-H264
    • AST-HDMI to IP Video Encoder H264 is a HD Audio and Video Encoding device with powerful functionality, which supports HDMI input with max resolution 1080P@ 60 fps and output stream resolution to 1080P @60 fps etc. This encoder works with HTTP / HLS / FLV / FTSP / RTMP (S)/ UDP/ FTP (Unicast and Multicast) stream protocols and ONVIF too. The encoder also works with online live broadcast live platform such as YouTube, Facebook, Upstream and Twitter etc.
    AST-HDMI to IP Video Encoder H264 is a HD Audio and Video Encoding device with powerful functionality, which supports HDMI input with max resolution 1080P@ 60 fps and output stream resolution to 1080P @60 fps etc. This encoder works with HTTP / HLS / FLV / FTSP / RTMP (S)/ UDP/ FTP (Unicast and Multicast) stream protocols and ONVIF too. The encoder also works with online live broadcast live platform such as YouTube, Facebook, Upstream and Twitter etc.
    More Information
    Technical specification
    Main Features:
    1) Adopts Professional Encoding Chip, embedded Hi Linux system, high stability and efficiency.
    2) User friendly web control UI, default IP is 192.168.168.
    3) Support HTTP / HLS / FLV / FTSP / RTMP (S)/ UDP/ FTP (Unicast and Multicast) stream protocols and ONVIF.
    4) Support output Multi RTMP (S) (Main stream and Sub Stream to different media streaming servers. Total of 4 streams can be uploaded to 4 different streaming servers.
    5) Mainstream suppot present resolution 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540 720x480, 720x404, 704x576, 640x480, 640x360, 480x270 etc.
    6) Support Text and Image insert as Stream  logo for Main stream and Sub stream.
    7) Automatic detect the input HDMI, output stream will show no signals when HDMi signals interrupted.
    8) Support Audio Digital gain.
    9) Support firmware upgrade.
    10) WIFI version for option.
    11) 3RU chassis available, max support 16 pcs Encoder installed.

    Main Applications:
    1) IPTV (Wowza, X stream Codes, Media Server etc).
    2) Online live broadcast (You Tube, Facebook, Upstream, Twitter).
    3) NVR (Network Video Recorder).
    4) Recording System
    5) Digital Signage
    6) Teaching / Campus Broadcast
    7) Hotel IPTV System
    8) Video Conference

    Technical Specifications AST-HDMI-IP-ENC-1080P
    Video Input HDMI Input, Max support 1920x1080P@60 fps
    Audio Input HDMI Embed Audio
    Ethernet 100 Mbps, RJ-45
    WIFI Option 2.4G/ 5G (option)

    Video Encoding
    Video format H264, AVC High/ Main/Baseline Profile MJPEG/ JPEG Baseline
    Video Resolution Max support 1920x1080P @ 60 fps
    Output total bitrate ≤800Mbps
    Video Bitrate 0.1 ~ 32 Mbps
    Video fps 5-60 fps

    HDMI Video Encoder
    Bit Rate Control VBR / CBR
    Streaming Protocols HTTP / HLS / FLV / RTSP / RTMP (s) / UDP /RTP / ONVIF / Unicast / Multicast
    Audio Encoding AAC/AAC+/AAC++/MP3/MP2/AC3/711
    Audio Sampling Rate 44.1 KHz  / 48 KHz
    Bitrate 12~640 kbps
    System
    Web Control Login 192.168.168.1
    Language English / Chinese
    Firmware update Ethernet Port for software update
    Power supply
    Input voltage 100~240V AC, 50 / 60 Hz, DC Output 12V/1A
    Environment
    Working temperature 10°C~70°C
    Storage temperature 10°C~85°C
    Work humidity 5%~90%, Non Condensing
    Physical characteristics
    Size(W x H x D) 170mm x 130mm x 30mm
    Weight <0.3Kg
