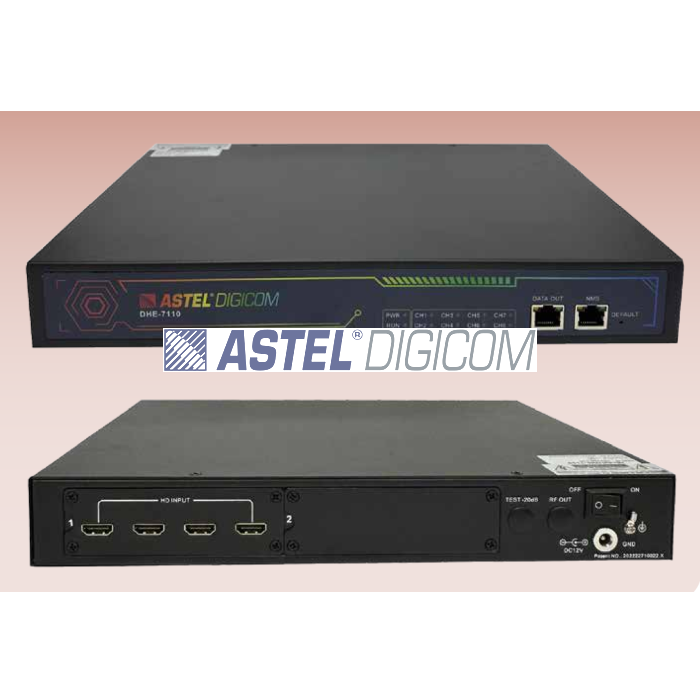

HDMI Streamer 4xHDMI input to IP DHE-7110

AED 2,425.00
In stock
Product Model
DHE7110-04
DHE-7110-04 is a HDMI Encoder Streamer and converts 4 HDMI signals to IP Out. It incorporates H.264 Encoding and after encoding it will output 8xSPTS over UDP or RTP Protocols. DHE-7110-04 can quickly roll out your IPTV systems providing a seamless and enjoyable viewing experience for IPTV susbcribers.
DHE-7110-04 is a HDMI Encoder Streamer and converts 4 HDMI signals to IP Out. It incorporates H.264 Encoding and after encoding will output 8xSPTS over UDP or RTP Protocols. DHE-7110-04 can quickly roll out your IPTV systems providing a seamless and enjoyable viewing experience for IPTV susbcribers.
More Information
Technical specification
Main Features:
1)  Video Encoding in H.264 and audio encoding in MPEG and AAC format.
2) Easy configuration with built in Web UI.
3) Offers 8 x IP output address via SPTS.
4) Supports all major resolutions  from 480i thru 1080Px60fps.

Technical Specifications DHE-7110
Model Number DHE-7110-04                DHE-7110-08
No of HDMI Inputs 4                                   8
Video
Video Encoding  H.264
Video Resolution

1920x1080P @ 60fps and 50 fps

1920x1080i @ 60 fps and 50 fps

1280x720P @ 60 fps and 50 fps

720x480p @ 60I

720x576 @ 50I

Video Bit Rate 2.000 ~ 19.000 Mbps
Audio
Audio Encoding  MPEG1, Layer II, AAC
Audio Sample rate 32/ 44.1/48 KHz
Audio Bit rate 64, 96, 128, 192, 25, 320, 384 Kbps

IP Output

Input Connector 1x100/1000 Mbps Port
Transport Protocol    UDP, RTP
Output Transport Stream SPTS
Broadcast Mode Unicast and Multicast
Power supply
Input voltage to Adapter 90~240V AC, DC 12V/5A
Input frequency 50/60Hz
Power Consumption (W) ≤60W
Environment
Work temperature 0°C~50°C
Storage temperature -10°C~80°C
Work humidity 10%~90%
Physical characteristics
Size(W x H x D) 482mm x 260mm x 44mm
Net Weight <2.75Kg
