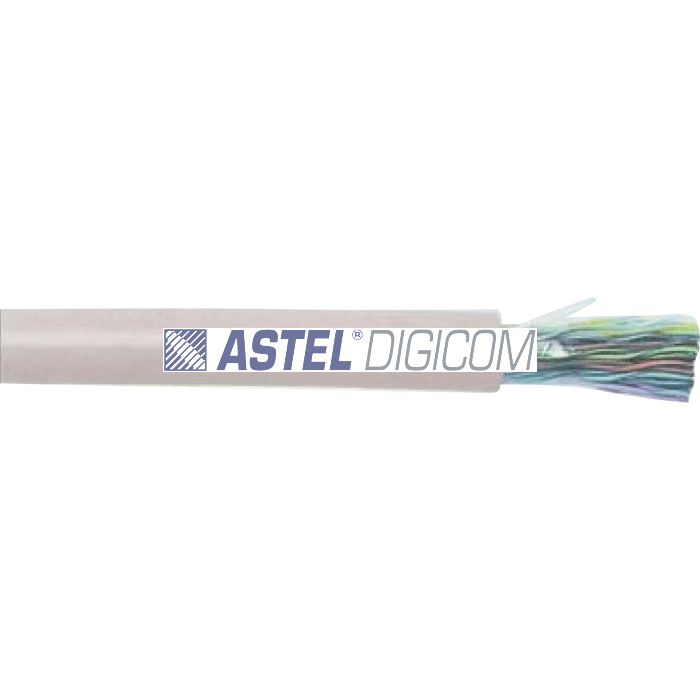

HCS Datalink indoor cable series consist of 4 to 100 pair UTP Cables with 100 ohms’ impedance for indoor horizontal and backbone installation in local area network (LAN). All cables fully conform to and provide a substantial margin above CAT3 EIA/TIA 568B2 requirements
HCS Datalink indoor cable series consist of 4 to 100 pair UTP Cables with 100 ohms’ impedance for indoor horizontal and backbone installation in local area network (LAN). All cables fully conform to and provide a substantial margin above CAT3 EIA/TIA 568B2 requirements
Two insulated wires twisted together. The twist length speciallyesigned to minimize the capacitance unbalance and cross talk.
Individual Pair Shielding
NO
Drain Wire
NO
1 stShielding
NO
1 st Shielding Coverage
PNVAC
2 nd Shielding
NO
2 ndShielding Coverage
5.0N0±A0.3
Jacket Material
PVC
Jacket Thickness
mm
See Table 1
Outer Dia
mm
See Table 1
Rip Cord
Yes
Color
Ivory
Jacket Tensile Strength
Mpa
as per IEC 60332-1 requirements
Jacket Elongation
%
as per IEC 60332-1 requirements
Short Term Bending Radius XD
8 x OD
Long Term Bending Radius XD
4 x OD
Flame test
As per IEC 60332-1
Electrical and MechanicalParameters:
Impedance
Ohms
100 ± 15 (@ 1-16 MHz)
Frequency Range
MHz
1-16 MHz
DC Resistance for Conductor
Ohms/Km
93
DC Resistance Unbalance
%
5 %
gCraopuancditance Unbalance to
pf /1000m
3300 pf/KM @ 1 KHz
Velocity of propagation
%
67.7 %
Delay Skew
ns/100m
≤45ns
Dielectric Strength (pair to pair)
KV/min
1.5
Insulation Resistance
MOhms.km
5000 Mega Ohms. KM Min at 500 VDC
Operating Temp Range
°C
-20°C to +65°C
FrequencyMHz
InsLeorstisondB/100mMax
NEXTdBMin
PS NEXTdBMin
SRLdBMin
Prop Delayns/100mMax
0.772
2.2
41.0
43.0
12.0
575
1.00
2.6
41.0
41.0
12.0
570
4.00
5.6
32.3
32.3
12.0
552
20.9
8.5
27.8
27.8
12.0
546
10.0
9.7
26.3
26.3
12.0
545
16.00
13.1
23.3
23.3
10.0
543
HCS P/N
Description
OD (mm)
Weight (Kg/KM)
Packaging
HCS-02501-DM
C2A5Tx32 xP2V4 CU GTrPey
11.2
180
500m, 1000m
HCS-05001-DM
50CxA2Tx23 4P UVTCP
14.2
320
500m, 1000m
HCS-10001-DMV
10C0xA2Tx32 4P VUCTP
21.0
630
500m
Disclaimer1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted)
