GYFXTCY-ADSS Optical Fiber Cable 4F to 24F Uni Tube All Dielectric Non Metal Armor
AED0.00
In stock
Product Model
GYFXTCY
Main Features: 1) All Dielectric Self Support Fiber Optic Cables
2) Non Metal Armor.
3) GYFXTCY model features good ability to shield from electromagnetism induced voltages or currents.
4) Suitable for Outdoor installation alongside MV/HV Electrical Transmission lines.
5) Long Distance fiber signals transmission for Cable TV, IP, Telecommunication, Security
6) Excellent AT performance. The maximum inductive at the operating point o AT Sheath can reach 25KV.
2) Non Metal Armor.
3) GYFXTCY model features good ability to shield from electromagnetism induced voltages or currents.
4) Suitable for Outdoor installation alongside MV/HV Electrical Transmission lines.
5) Long Distance fiber signals transmission for Cable TV, IP, Telecommunication, Security
6) Excellent AT performance. The maximum inductive at the operating point o AT Sheath can reach 25KV.
Product Applications 1) All Dielectric Self Support Fiber Optic Cables
2) Non Metal Armor.
3) GYFXTCY model features good ability to shield from electromagnetism induced voltages or currents.
4) Suitable for Outdoor installation alongside MV/HV Electrical Transmission lines.
5) Long Distance fiber signals transmission for Cable TV, IP, Telecommunication, Security
6) Excellent AT performance. The Maximum inductive at the operatinig point of AT sheath can reach 25KV.7) Large span lengths at the largest span is over 1000m8) Good performance of tensile strength and temperature withstand capablity.9) Suitable for Middle east in high ambient temperature
2) Non Metal Armor.
3) GYFXTCY model features good ability to shield from electromagnetism induced voltages or currents.
4) Suitable for Outdoor installation alongside MV/HV Electrical Transmission lines.
5) Long Distance fiber signals transmission for Cable TV, IP, Telecommunication, Security
6) Excellent AT performance. The Maximum inductive at the operatinig point of AT sheath can reach 25KV.7) Large span lengths at the largest span is over 1000m8) Good performance of tensile strength and temperature withstand capablity.9) Suitable for Middle east in high ambient temperature

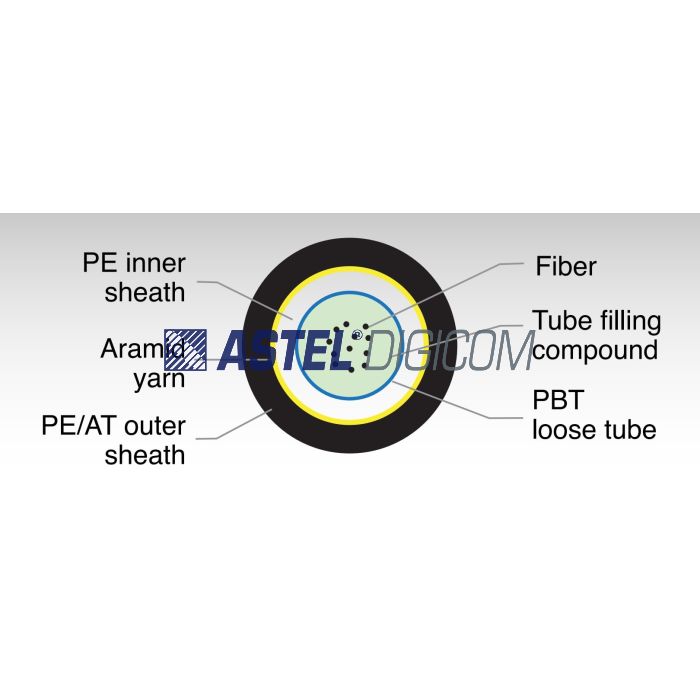

| Technical specification | GYFXTCY:4F to 24F (Uni Tube Model, Dual Sheath) Product Constructions details: 1) Loose Tube is made up of PBT (High Modulus Plastic) which has high capacity to withstand wide temperature fluctuations. 2) The tube is filled with Moisture Resistance GEL to prevent longitudinal moisture ingress. 3) The tube is covered togethers with cloth binder.7) After the cloth binder, a thin inner sheath is extruded. 8) After the inner sheath there is Aramid yarn (Dielectric Armor)- which provides crush resistance and tensile strength to the cable.9) After the dielectric armor- outer HDPE sheath is extruded. It also adds to the crush resistance and tensile strength of the cable. High quality HDPE provides good ultravoilet radiation property. Outer sheath can be PE or AT (Anti Tracking) sheath. For more detailed specs- please download the technical specs sheet. Fiber Core Specifications:
Note 2: For more detailed specification on Fiber Core Characteristics, please write to us at asteldigicom@eim.ae or visit fiber core manufacturer’s website. Disclaimer 1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted) |
|---|
