GYFTA53 Fiber Cable 24F to 144F Multi Tube Dual Sheath Dual Armor Direct Burial
AED 0.00
In stock
Product Model
GYFTA53
Product Features 1) FRP Central Strength Member
2) Dual Armor- APL & PSP
3) GYFTA53 model features-High Crush Resistance
4) Suitable for Underground and direct burial applications
5) Long Distance fiber signals transmission for Cable TV, IP, Telecommunication, Security6) Suitable for Middle east in high ambient temperature
2) Dual Armor- APL & PSP
3) GYFTA53 model features-High Crush Resistance
4) Suitable for Underground and direct burial applications
5) Long Distance fiber signals transmission for Cable TV, IP, Telecommunication, Security6) Suitable for Middle east in high ambient temperature
Product Features 1) FRP Central Strength Member
2) Dual Armor- APL & PSP
3) GYFTA53 model features-High Crush Resistance
4) Suitable for Underground and direct burial applications
5) Long Distance fiber signals transmission for Cable TV, IP, Telecommunication, Security6) Suitable for Middle east in high ambient temperature7) Good temperature withstand capability8) Good mechanical stress withstand capability9) Good moisture ingress protection10) Suitable for duct use, aerial and underground direct burial applications.
2) Dual Armor- APL & PSP
3) GYFTA53 model features-High Crush Resistance
4) Suitable for Underground and direct burial applications
5) Long Distance fiber signals transmission for Cable TV, IP, Telecommunication, Security6) Suitable for Middle east in high ambient temperature7) Good temperature withstand capability8) Good mechanical stress withstand capability9) Good moisture ingress protection10) Suitable for duct use, aerial and underground direct burial applications.

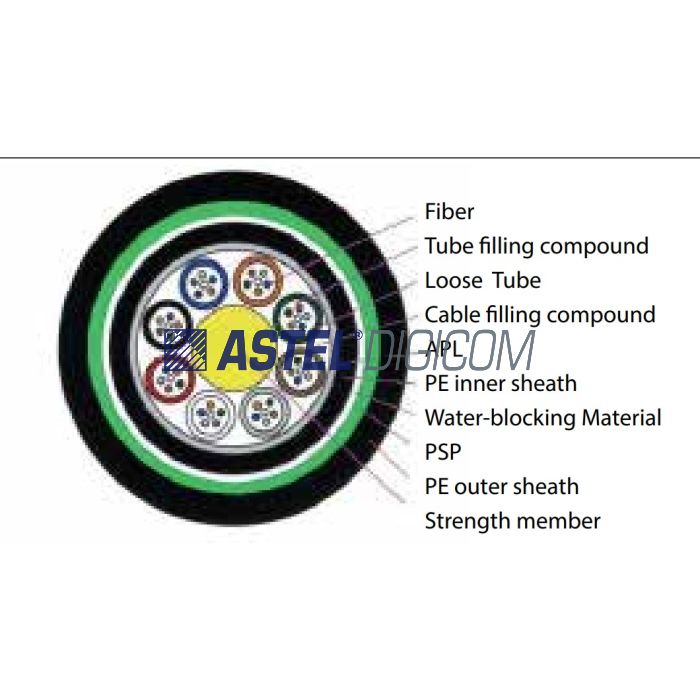

| Technical specification | GYFTA53:24F to 144F (Multi Tube Model, FRP Center, Dual Armor, Dual Sheath, Direct Burial) Product Constructions details: 1) A Fiber Reinforced Plastic (FRP Rod) in located in center of core as non-metallic strength member. 2) Loose Tubes are made up of PBT (High Modulus Plastic) which has high capacity to withstand wide temperature fluctuations. 3) The Tubes and all spaces betweent the tubes are filled with a water-resistant jelly compount for moisture ingress protection. 4) The Tubes and all spaces between the tubes are filled with Moisture Resistance GEL to prevent longitudinal moisture ingress. 5) Number of tubes depends on the number of fiber, For Multi-Tube Model, usually we have 12 to 24 fiber per tube. For 24 fiber cable- we shall use 4 Tubes with 6 Fibers each. For a 48 fiber cable, 4 Tube Model, we shall have 12 fibers each tube, For a 96 fiber cable, we shall have 6 Tubes with 16 fibers each tube, for 144 fiber model, we shall have 6 Tubes with 24 fibers each etc. 6) The tubes are bound togethers with cloth binder so the FRP and the loose tubes retains its position and the circular shape of cable is maintained.7) After the cloth binder, there is APL (Aluminium Plastic Lamination Tape). This is inner armor- Inner armor is Aluminium Tape to maintain the flexibility of the cable. 8) Over the APL a thin inner sheath is extruded.9) After the inner sheath there is PSP armor- Plastic Steel Plastic- Tape Armor ensures cable has high radial moisture resistance and high crush resistance.10) After the PSP, outer HDPE Sheath is extruded. Outer sheath and PSP acts as a barrier for rodent and insect protection. It also improves the crush resistance and tensile strength of the fiber optic cable. High quality HDPE provides good ultravoilet radiation property. For more detailed specs- please download the technical specs sheet. Technical Specifications:
Note 2: For detailed specification on Fiber Core Characteristics, please write to us at asteldigicom@eim.ae or visit fiber core manufacturer’s website. Disclaimer 1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted) |
|---|
