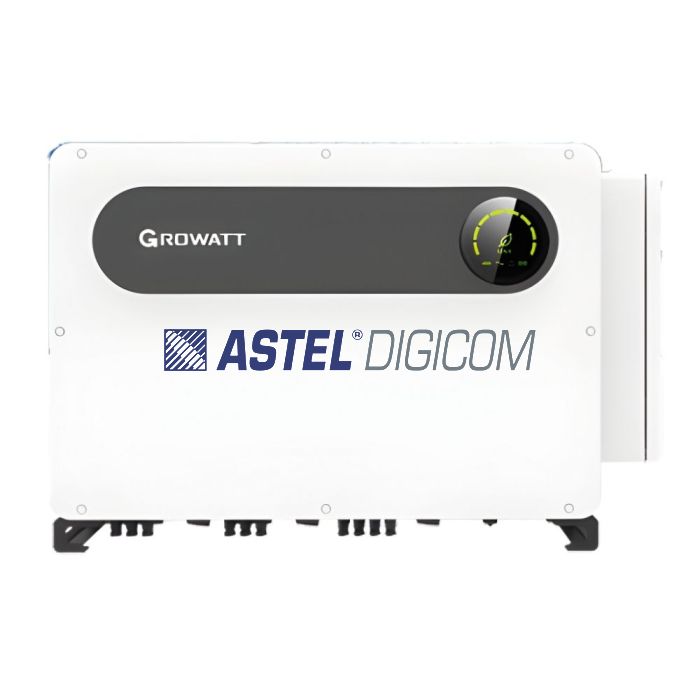

Growatt Inverter 100KW MAX 100KTL3-X LV On Grid type

AED 10,775.00

In stock

Product Model

MAX100KTL3XLV

MAX100KTL3-X LV

1) 8 MPPTs fusefree design

2) Max. string current up to 22.5A

3) Smart I/V scan and diagnosis

4) Intelligent string monitoring

5) AC&DC type II SPD

6) IP66 protection

Details

MAX100KTL3-X LV

1) 8 MPPTs fusefree design

2) Max. string current up to 22.5A

3) Smart I/V scan and diagnosis

4) Intelligent string monitoring

5) AC&DC type II SPD

6) IP66 protection

Technical specification

More Information

Technical specification

Datasheet	MAX100KTL3-XLV
Input data (DC)
Max. DC voltage	1100V
Start voltage	195V
Nominal voltage	600V
MPP voltage range	180V-1000V
No. of MPP trackers	10
No. of PV strings per MPP tracker	2
Max. input current per MPP tracker	32A
Max. short-circuit current per MPP tracker	40A
Output data (AC)
AC nominal power	100000W
Max. AC apparent power	110000VA
Nominal AC voltage (range*)	220V/380V, 230V/400V (340-440V)
AC grid frequency (range*)	50/60 Hz(45~55Hz/55-65 Hz)
Max. output current	158.8A @400V 167.1A@380V
Adjustable power factor	0.8leading ...0.8lagging
THDi	<3%
AC grid connection type	3W/N/PE
Efficiency
Max.efficiency
European efficiency	98.4%
MPPT efficiency
Protection devices
DC reverse polarity protection	Yes
DC switch	Yes
AC/DC surge protection	Type II / Type II
Insulation resistance monitoring	Yes
AC short-circuit protection	Yes
Ground fault monitoring	Yes
String detection	Yes
Anti-PID function	Optional
Arc fault detection (AFCI)	Optional
General data
Dimensions (W / H / D)	970/640/345mm
Weight	84kg
Operating temperature range	–30°C ... +60°C
Nighttime power consumption	< 1W
Topology	Transformerless
Cooling	Smart air cooling
Protection degree	IP66
Relative humidity	0~100%
Altitude	4000m
DC connection	H4/MC4 (Max.6mm2)
AC connection	OT Terminal (Max. 240mm2)
Display	LED/WIFI+APP
Interfaces: RS485/USB/ PLC/GPRS/4G/WiFi	Yes/Yes/Optional/Optional/Optional/Optional
Warranty: 5 years / 10 years	Yes /Optional
CE, IEC62116, IEC61727

Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)

5. Growatt is registered trade mark of Shenzhen New Energy Co Ltd, China.
