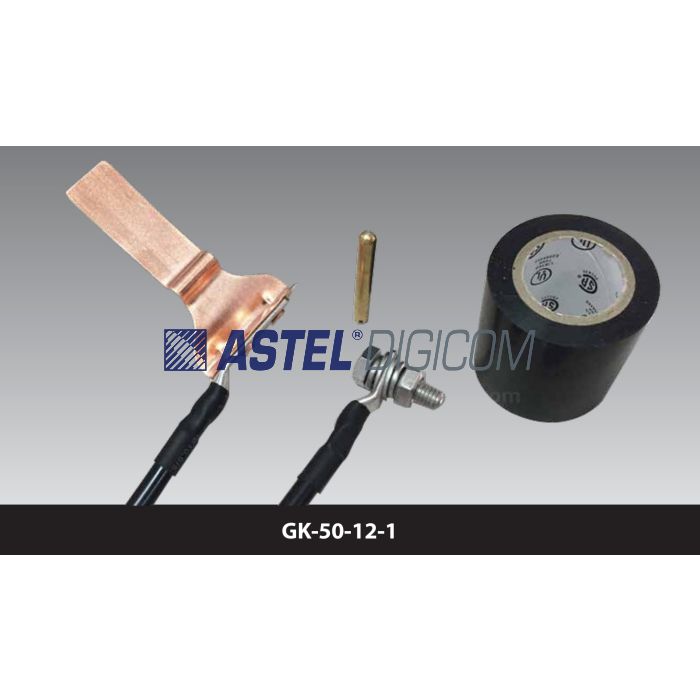

Grounding Kit for 1/2 Inch Feeder Cable

AED 0.00
In stock
Product Model
GK-50-12-1
Grounding kit is designed for outdoor cable's grounding to provide reliable lightning protection Its main features are:

1. Compact Structure
2. Faster and easy installation
3. Weatherproof IP67
4. UV and Corrosion Resistant

Grounding kit is designed for outdoor cable's grounding to provide reliable lightning protection. Its main features are:

1. Compact Structure
2. Faster and easy installation
3. Weatherproof IP67
4. UV and Corrosion Resistant

More Information
Technical specification
Main features:

1. Grounding kit is designed for outdoor coaxial cable's grounding to provide reliable lightning protection.
2. Compact Structure.
3. Faster and easy installation.
4. Contact resistance <4mΩ
5. Current handling >50KA.
6. Weatherproofing IP67
7. UV and Corrosion resistant

Technical Characteristics Parameters
Model No. GK-50-12-1
Size 1/2 Inch
Compatiable dia max 18.5mm / 0.73"
Compatiable dia min 16.3mm /0.65"
Includes AWG6 Grounding Cable, Spring Grounding Card, Single Hole Terminal for Grounding cable, Heat Shrink Tube, Hex Nuts, Flat Gasket, Spring Gasket, M8 Hex Nuts, Black PVC Wide Tape, Butyl Tube
Material of metal part Stainless Steel SS304, Copper, Butyl Tape
Grounding Wire Size 16mm2, AWG 6
Grounding Wire length 0.6m
Tape Size 0.19x48x6000mm
Gooey Size 1.5x60x600mm
Application Telecom cable Installation
Warranty 1 year
Working Temp Range -40°C ~ +85°C
Storage Temp Range -40°C to +85°C
