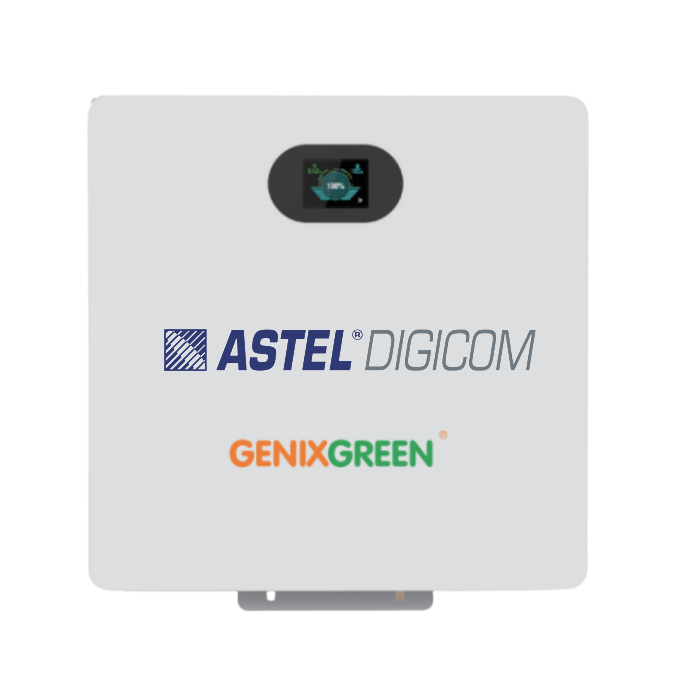

GENIXGREEN 5.12 kWh LiFePO4 Solar Battery ES-BOX42

AED 0.00
In stock
Product Model
ES-BOX42
    • GENIXGREEN ES-BOX42 is a wall-mounted lithium iron phosphate battery designed for reliable home energy storage applications. It features 5.12kWh capacity, 8000+ cycle life, smart communication interfaces, and support for parallel expansion up to 16 units. With advanced LiFePO4 safety technology, touch screen monitoring, and optional remote access capabilities, it delivers efficient and long-lasting solar energy storage performance.

    Key Features and Functionality:

    • Display: Includes a 3.2-inch touch screen.
    • Dimensions: 485mm (L) * 480mm (W) * 155mm (H), excluding brackets.
      Weight: Less than 45KG.
    • Operating Range: Charging from 0 to 55°C and discharging from -20 to 55°C.
    • Protection: IP20 protection grade.
    • Remote Access: Optional WiFi cloud platform/remote monitoring and Bluetooth local control via a mobile app.
    • Warranty: Comes with a 5-year standard warranty (subject to terms).
    • Certifications: ROHS, UN38.3, and MSDS
    • Rated Power: 5.12kWh
    • Rated Voltage: 51.2V
    • Rated Capacity: 100Ah
    • Charging/Discharging: Features 0.5C rated current and a maximum current of 100A.
    • Cycle Life: Offers ≥8000 cycles (at 25°C±2°C, 0.5C, and 80% DOD).
    • Expandability: Supports parallel connection of up to 16 units.
    • Communication: Uses USB, RS485, and CAN (for parallel connection).
    More Information
    Technical specification
    Product Model ES-BOX42
    Rated Power 5.12 kWh
    Rated Voltage 51.2V
    Suggested Working Voltage Range 44.8V-56.8V
    Rated  Charge/Discharge Current 0.5C
    Max. Charge/Discharge Current 100A
    Rated  Capacity 100Ah
    Communication Method USB/RS485/CAN(CAN Parallel Connection)
    Working Temperature  Range Charging: 0-55°C/Dischage:-20-55°C
    Working Humidity Range 5-85%RH
    Discharge Depth 80-90%
    Cycle Life ≥8000 Cycles (25°C±2°C, 80%DOD@65% EOL)
    Protection Grade IP20
    Operating Altitude ≤3000m
    Overall Dimensions

    485mm (L) 480mm(W)  155mm(H)

    (Excluding hanging& wall brackets)
    Display 3.2-inch touch screen
    Net Weight ≤45KG
    No. Of Parallel Connection Supports 16PCS in parallel
    Certification ROHS/UN38.3/MSDS
    Optional WIFI/Bluetooth (optional)
    Warranty 5 Year(under warranty terms)
    Energy Throughput[1] 11MWh
    [1] Conditions apply; refer to the GENIXGREEN warranty letter.
