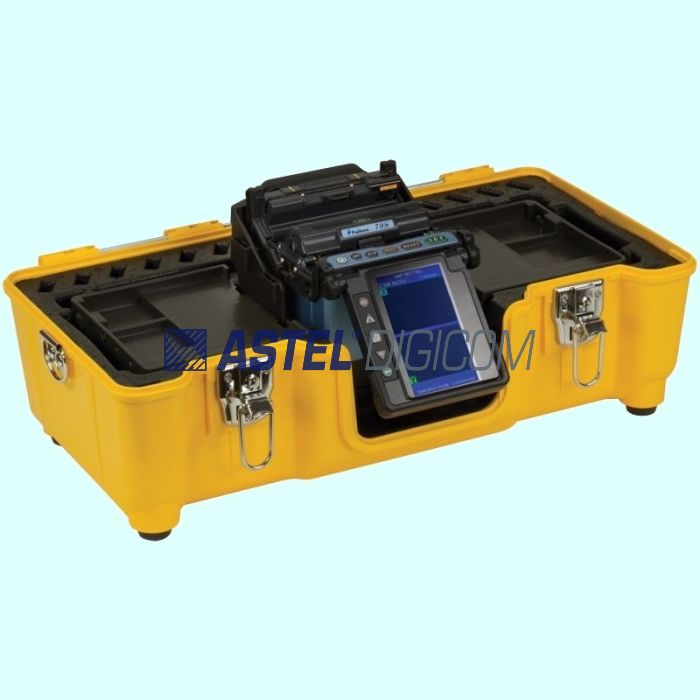

main product photo

Fujikura Splicing Machine FSM-90S Made in Japan

AED 0.00
In stock
Product Model
FSM-90S
    • Fujikura is world leader in Arc fusion Fiber Splice Machine. Fujikura latest model FSM-90S features World quickest splicing 7 sec and complete splice in 4 easy steps.
    1) World quickest splicing 7sec. / Tube-heating 14 sec.
    2) Made in Japan
    3) SMF (G.652/657), MMF (G.651), DSF (G.653), NZDSF (G.655)
    4) Total 100 splice modes / 30 heating modes
    More Information
    Technical specification
    Main Features

    1) Core Alignment technology
    2) World’s quickest Splice machine 7sec/ Tube heating 14 secs
    3) Multifunction carry case with integrated work station
    4) Robust – 6 face shock/dust/rain proof
    5) Improved battery life (200 cycles)
    6) Improved Electrode life (3000 Arcs)
    7) Better cleave length 5 – 16mm
    8) Bigger monitor 4.47 Inch
    9) Li-ion Battery
    10) Automated tube heater
    11) Working table as standard
    12) PC software upgrade
    Parameter FSM-90S
    Applicable Fibers SMF (G652S/657), MMF (G.651), DSF (6.653), NZDSF (G.655)
    Cladding diameter 8-150 um
    Cleave Length 5mm to 16mm with sheath clamp
    Splice Mode (heating mode) Total 100 splice modes / 30 heating modes
    Splice loss 0.02 dB (SM), 0.01 dB (M), 0.04 dB (DSF), 0.04 dB (NZDSF),Measured by cut back method relevant to ITU-T and IEC Standards
    Splice time/ tube heating time Typical 7 secs with SM, Typical 14 secs with FP-03 (60mm) sleeve
    Splice Result storage Last 2000 splices
    Viewing Method/Magnification 2 axis  cMPS Camera with 4.73” Color LDCX/Y (320X magnification) or both X and Y simultaneously (200X)
    Tension Test 1.96 to 2.25N
    Application Protection Sleeves 60mm, 40mm and Fujikura Micro Sleeves
    No of splice / heating per batter full charge Typical 200 splices with BTR-09
    Electrode life 3000 splice
    Size/Weight 146W x 159D x 150H / 2.7 kg (including battery)
    Operating Condition Altitude 0-5000m above sea levelWind 15m/secTemperature: -10 to 50 deg CHumidity: 0 to 95% RH, Non-Dew
    Other Features PC Software upgrade/ data management
    Terminals USB 2.0 (Mini-B type) connector for PC Communication6 pin Min DIN Connector for HJS-02 or HJS-03 PSU
