FLAT TRAVELLING CABLE for Power and Audio 4C x 1.5mm2
AED 0.00
In stock
Product Model
FECSPO4CX150ABCPVC

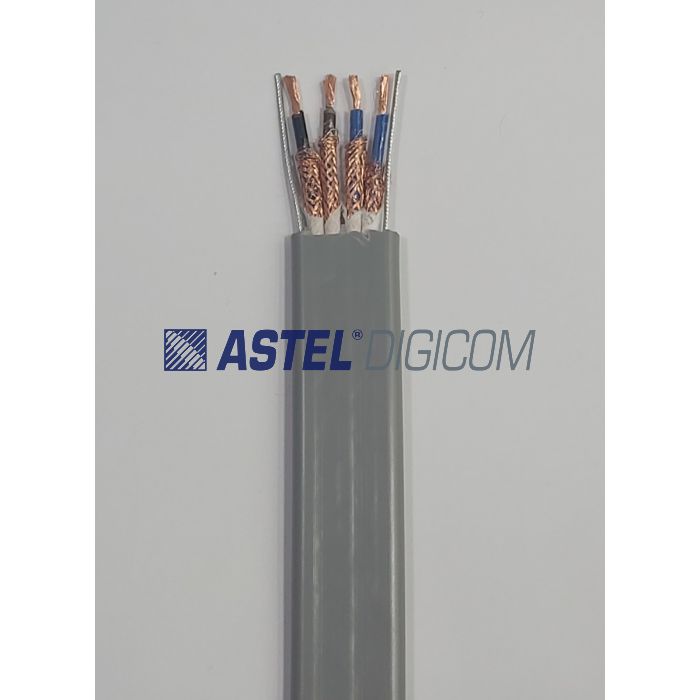

ASTEL Flat Travelling Cables are designed and manufactured to Ultra flexibility demand of CCTV Cameras, Speaker Systems and Powering of various sensors and other devices (WIFI Access Point, Alarm, Speaker) in Elevator or Crane applications. ASTEL FECSPO4CX150ABCPVC has Stranded Copper as a center conductor with PVC Insulation. Each core is wrapped with polyster tape and copper shielding for protection from interference and noise protection from other sources. Each conductor has cross section of 1.50mm2 which is suitable for powering of devices and for speaker systems. Four such cores are further enclosed in second overall PVC Jacket. It has two GI Steel Strength members on both sides of cable. All the cores are protected with Ultra Flexible PVC Jacket for repeated bending and traveling of elevators.
ASTEL Flat Travelling Cables are designed and manufactured to Ultra flexibility demand of CCTV Cameras, Speaker Systems and Powering of various sensors and other devices (WIFI Access Point, Alarm, Speaker) in Elevator or Crane applications. ASTEL FECSPO4CX150ABCPVC has Stranded Copper as a center conductor with PVC Insulation. Each core is wrapped with polyster tape and copper shielding for protection from interference and noise protection from other sources. Each conductor has cross section of 1.50mm2 which is suitable for powering of devices and for speaker systems. Four such cores are further enclosed in second overall PVC Jacket. It has two GI Steel Strength members on both sides of cable. All the cores are protected with Ultra Flexible PVC Jacket for repeated bending and traveling of elevators. Applications: 1) Elevator traveling cable for indoor and panoramic elevators.
2) Audio system in Elevators.
3) Powering requirements in elevators.
4) Maximum channel length 75m
2) Audio system in Elevators.
3) Powering requirements in elevators.
4) Maximum channel length 75m
| Technical specification | Technical Specifications:
The lugs or connectors for used for connecting the device to the cable should be crimped and soldered for reliable connectivity. Please check for any breakage or loose connection at regular intervals to avoid loss of any power or audion signals. Please be advised that these cables are suitable for maximum run of 75m. End to End cable in in the lift room should not be more than 75m. Due to heavy weight of the cable- if the cable run is more than 75m, the cores inside tend to break. FEC models is supported by 2x1.25mm² of Flexible GI Steel Wires on left and right side of the cable. Disclaimer 1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted) |
|---|
