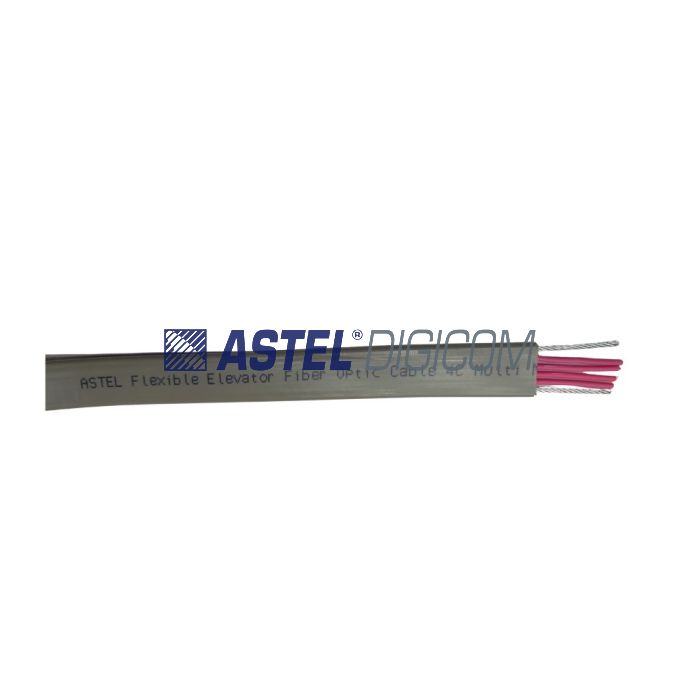

main product photo

FLAT ELEVATOR FIBER OPTIC CABLE 4C OM4

AED 1,650.00
In stock
Product Model
FEC-TGJFJV-4C-OM4
    • ASTEL Fiber optic cable exclusively for Elevator applications. For indoor usage, it has LSZH Jacket with Flame Retardant properties. Tight buffer fiber structure with enhanced fiber protection and flexibility. Special flexible grade thermoplastic elastonomer sheath with wear resistances, corrosion resistance, flame retardant performance. Fiber type, Multi Mode, OM4. 2xGI Steel Wires embedded in outer sheath for enhanced tensile strength, crush resistance and repeated bending and weight support of the elevator cable.
    ASTEL Fiber optic cable exclusively for Elevator applications. For indoor usage, it has LSZH Jacket with Flame Retardant properties. Tight buffer fiber structure with enhanced fiber protection and flexibility. Special flexible grade thermoplastic elastonomer sheath with wear resistances, corrosion resistance, flame retardant performance. Fiber type, Multi Mode, OM4. 2xGI Steel Wires embedded in outer sheath for enhanced tensile strength, crush resistance and repeated bending and weight support of the elevator cable.
    More Information
    Technical specification
    Technical Specifications:
    Tight Buffer Fiber Optic Colors:
    Fiber Type Tight Buffer Fiber Color Jacket
    Multi Mode OM4 Blue Purple
    Multi Mode OM4 Orange Purple
    Multi Mode OM4 Green Purple
    Multi Mode OM4 Brown Purple
     Fiber Optic Cable Structure Specifications:
     Parameter  Units  Specifications
    No of fiber per tube     1
    Total number of tubes   4
    Total fiber count    4
    Tight Buffer OD   mm  0.85±0.05
    Tight Buffer Material     PVC-FR-LSZH
    Strength members   Aramid Yarn
    Jacket thickness mm 0.3±0.05
    Jacket material   PVC-LSZH
    Jacket OD mm 2.0
    Net weight Kg/Km 4.6
    Short term tensile strength N 80
    Single Mode Fiber technical specifications:
    Parameter Units Specification
    Fiber type   Multi Mode, OM4, 50/125
    Core Dia Um 50±2.5
    Roundness % ≤6%
    Cladding Dia Um 125±1
    Cladding ovality % ≤2.0
    Outer Coating Dia Um 245±10
    Core Cladding Concentricity Um ≤1.5
    Number of fibers per tube   1
    Number of tubes   4
    Attenuation @ 850 nm dB/Km 850nm- 3.0
    Attenuation @ 1300 nm dB/Km 1300nm-1.5
    OFL @ 850 nm MHz.km ≥3500
    OFL @ 1300 nm MHz.km ≥500
    Maximum theoretical numerical aperture   0.200±0.015
    Cable Construction:
    Parameter Units Specification
    Outer Jacket Material   PVC-FR-LSZH
    FR Reference standard   IEC 60332-1
    Jacket OD Mm 4.0±1 x 18±1.5mm
    Strength member   2 x GI Steel, One on each side
    Steel Wire OD Mm 1.8±0.2
    Electrical and other Specifications:
    Parameter Units Specification
    Working Voltage V Not applicable as it has only Fiber
    Max Tensile Strength N 3000
    Crush Load N/mm 1500N / 100mm
    Travel speed m/s ≤7m/sec
    Lifting Height M ≤400m Max
    Natural Loop mm 350±80 approximate
    Min Bending radius Mm Operation: 20xW,
    Installation: 30xW
    Temperature Rating °C Operation: -20°C to +70°C
    Installation: -10°C to 55°C
    Ordering Information:
    Model Description Standard length
    FEC-TGJFJV-4C-OM4 Flat Elevator Fiber optic cable,1F per tube, Multi Mode,OM4, 50/125 300m

    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
