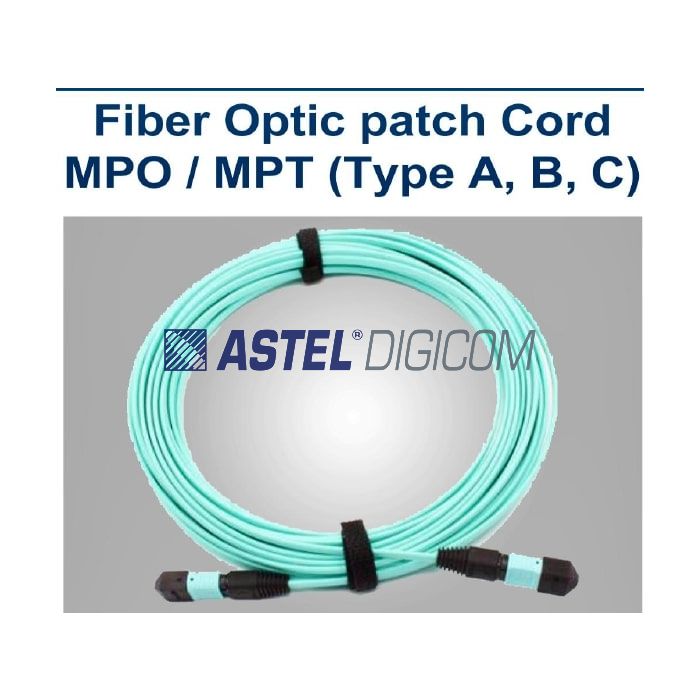

Fiber Patch Cord MPO MPT Series

AED 0.00

In stock

Product Model

FOC-PCX-MPO MPT

ASTEL Fiber patch Cords employ highest grade components, manufacturing processes and test methods that offer excellent performance for demanding telecommunications and data applications. ASTEL Fiber Patch Cord MPO MPT Series are available in High Fiber Density (Max 24 Fiber for OM3, OM4).

Details

1) ASTEL Fiber patch Cords employ highest grade components, manufacturing processes and test methods that offer excellent performance for demanding telecommunications and data applications.
2) ASTEL FO Patch cord can be directly deployed in Fiber Networks and Data Centres. It does not require any additional protection tubes.
3) ASTEL FO patch cords are manufactured in ISO 9002 approved plant and tested for Forward loss, Return loss Connection integrity and 3D spectrum tester for performance and quality.
4) ASTEL FO patch cords use LSZH Jacket cables (Low Smoke Zero Halogen).

5) Can be used in QSFP+, QSFP 28 Module

6) Three different type of polarities method available (Option A, B, C)

Technical specification

More Information

Technical specification

Applications

1) Data Center Applications

2) Test Equipments

3) Defence Industry

4) HFC Networks

5) Aerospace Industry

6) High Density Optical Laser

7) Control Networks

8) Video to Fiber Network

9) Security and Surveillance

10) Ethernet to Fiber Network

Parameter	Single mode	Multimode
Connector	MPO or MPT or LC	MPO, MPT, or LC
Fiber type	OS2 (G652D), G657A2	OM3, OM4
Fiber Dia	9/125um	50/125um
Standard Lengths	1m, 3m, 5m, 10m, as per customer option
Insertion/Pull test	500 times, Loss change < 0.5dB
Mechanical Specifications:
Insert and pull frequency	>500
Change in loss	≤ 0.50
Tensile strength	< 0.1
Oscillating test	< 0.1
Electrical Specifications
Insertion Loss (dB)	<0.3 dB	<0.5 dB
Fiber Dia (um)	9/125 um	50/125 um
Return loss (dB)	≥60	≥35
ROC	10-25mm
Apex Offset	≤50 um
Fiber Height	-50 nm to +50 nm
Compliance Standard	Telecordia
Operating temperature	-40 ±80°C
Storage temperature	-40 ±85°C

Fiber Characteristics:
Parameter	Unit	9/125SMF-OS2	62.5/125MMF-OM1	50/125MMF-OM2	50/125MMF-OM3	50/125MMF-OM4
Attenuation (See Note 1)	dB/Km	1310nm≤0.35 1550nm≤0.22	850 nm≤3.0 1300 nm≤0.8	850 nm≤3.01300 nm≤0.7	850 nm≤2.31300 nm≤0.7	850 nm≤2.31300 nm≤0.7
Dispersion	Ps/nm.km	1285~1330nm≤3.5 1550nm≤18.0	_	_	_	_
Fiber diameter	um	9/125 um	62.5/125 um	50/125 um	50/125 um	50/125 um
Effective Modal Bandwidth	EMB		850 nm≥200	850 nm≥750	850 nm≥2000	850 nm≥4700
Zero dispersion wavelength	Nm	1300~1324	_	_	_	_
Zero dispersion slope	Ps/nm.km	≤0.095	_	_	_	_
Fiber cutoff wavelength	um	≤1260	_	_	_	_
Mode field diameter	um	@@11535100nnmm--190..24±±00..48	_	_	_	_
Mode field concentricity	um	≤0.8	_	_	_	_
Cladding diameter	um	125±1.0	125±2.0	125±1.0	125±1.0	125±1.0
Cladding non-circularity error	%	≤1.0	≤2.0	≤1.0	≤1.0	≤1.0
Cladding no	um	≤12.5	≤12.5	≤12.5	≤12.5	≤12.5
Coating diameter	um	245±10	245±10	245±10	245±10	245±10

Note1:Above photograph feature SC type connectors

Note1:Pig Tails and Patch cords are available with SC,FC,ST,LC,E2000,MTRJ connectors as per Telcordia GR-326-CORE Specifications.
