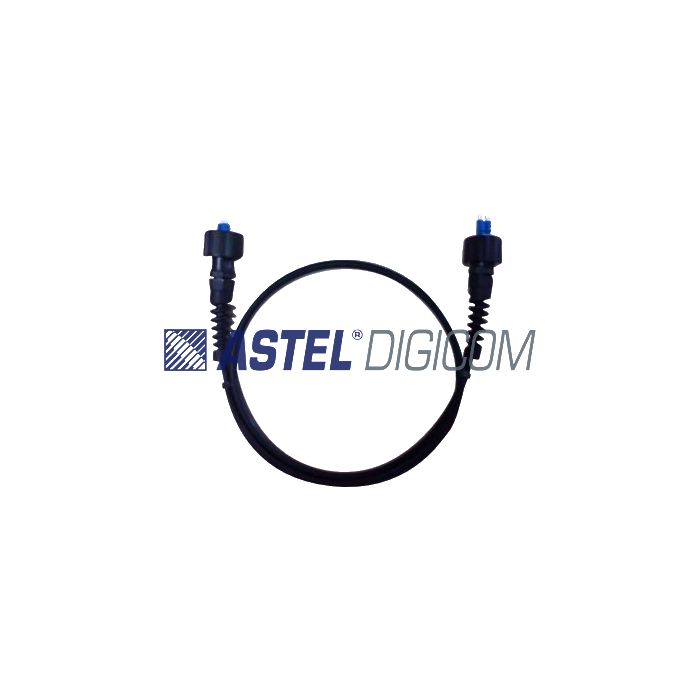

ASTEL Armoured Fiber Optic Patch Cords – Flexible Steel Tube Protection

AED 0.00
In stock
Product Model
Armoured Patch cords

    • ASTEL Fiber Optic Armoured Patch Cords are designed for optical connections in demanding industrial environments where conventional fiber patch cords may be exposed to mechanical stress, external pressure, oil and chemicals. Featuring flexible steel tube protection and an LSZH (Low Smoke Zero Halogen) cable jacket, these armoured patch cords provide enhanced crush resistance for fiber network installations in oil rigs, marine facilities, chemical processing plants, refineries and metal industries.
    The series supports single-mode OS2 (G.652D and G.657A2) and multimode OM1, OM2, OM3 and OM4 fiber types, with SC, FC, ST, E2000 and LC connector options. Connector combinations can be selected according to network requirements, including PC/UPC and APC configurations where applicable.
    ASTEL armoured patch cords offer typical insertion loss of ≤0.20dB, with return loss specifications of ≥55dB for single-mode PC/UPC, ≥60dB for single-mode APC and ≥35dB for multimode PC. Standard lengths range from 0.5m to 100m, while custom lengths from 0.3m to 250m are available on request.

    Key Features

    • Product series: ASTEL Fiber Optic Armoured Patch Cords

    • Flexible steel tube protection for enhanced mechanical durability

    • Higher crush resistance than conventional unarmoured patch cords

    • Protection against external pressure, oil and chemical exposure, as described by ASTEL

    • Flame-retardant construction stated by the manufacturer

    • LSZH (Low Smoke Zero Halogen) outer jacket

    • Designed for harsh industrial environments

    • Suitable for direct deployment in demanding fiber network installations

    • Available connector interfaces: SC, FC, ST, E2000 and LC

    • Mixed connector combinations available on request

    • Single-mode connector polish: PC/UPC and APC

    • Multimode connector polish: PC

    • Single-mode fiber types: OS2 (G.652D) and G.657A2

    • Multimode fiber types: OM1, OM2, OM3 and OM4

    • Single-mode fiber diameter: 9/125µm

    • OM1 multimode fiber diameter: 62.5/125µm

    • OM2, OM3 and OM4 multimode fiber diameter: 50/125µm

    • Typical insertion loss: ≤0.20dB

    • Maximum insertion loss: ≤0.30dB

    • Single-mode PC/UPC return loss: ≥55dB

    • Single-mode APC return loss: ≥60dB

    • Multimode PC return loss: ≥35dB

    • Connector mating durability: Greater than 1,000 cycles

    • Insertion loss change after mating cycles: ≤0.20dB

    • Radius of curvature (ROC): 10–25mm

    • Apex offset: ≤50µm

    • Fiber height: -50nm to +50nm

    • Operating temperature: -40°C to +75°C

    • Storage temperature: -40°C to +85°C

    • Telcordia compliance listed in the technical specifications

    • Manufactured in an ISO 9002-approved plant, according to ASTEL

    • Tested for insertion loss, return loss, connection integrity and 3D connector geometry

    • Standard lengths: 0.5m to 100m

    • Custom lengths: 0.3m to 250m on request

    More Information
    Technical specification
    Parameter Single mode PC/UPC Single mode APC Multimode PC
    Connector SC/FC/ST/E2000/LC
    (Any type of connector and any combination can be chosen)
    Fiber type OS2 (G652D), G657A2 OS2 (G652D), G657A2 OM1, OM2, OM3, OM4
    Standard Lengths 0.5m, 1m, 3m, 5m, 10m, 15m, 25m, 30m, 50m 60m, 70m, 100m
    Custom Length  Any length from 0.3m to 250m can be provided on request
    Mechanical Specifications:
    Insert and pull frequency  >1000
    Changeability  ≤ 0.20
    Tensile strength  < 0.1
    Oscillating test  < 0.1
    Electrical Specifications
    Typical Insertion Loss (dB)  ≤0.20
    Max Insertion loss (dB)  ≤0.30  ≤0.20
    Change in loss(dB)
    After 1000 mating
    Return loss (dB) ≥55 ≥60 ≥35
    ROC  10-25mm
    Apex Offset  ≤50 um
    Fiber Height  -50 nm to +50 nm
    Compliance Standard  Telecordia
    Operating temperature  -40 ±75 centigrade
    Storage temperature  -40 ±85 centigrade

    Parameter Unit 9/125SMF-OS2 62.5/125MMF-OM1 50/125MMF-OM2 50/125MMF-OM3 50/125MMF-OM4
    Attenuation (See Note 1) dB/Km 1310nm≤0.351550nm≤0.22 850 nm≤3.01300 nm≤0.8 850 nm≤3.01300 nm≤0.7 850 nm≤2.31300 nm≤0.7 850 nm≤2.31300 nm≤0.7
    Dispersion Ps/nm.km 1285~1330nm≤3.51550nm≤18.0 _ _ _ _
    Fiber diameter um 9/125 um 62.5/125 um 50/125 um 50/125 um 50/125 um
    Effective Modal Bandwidth EMB   850 nm≥200 850 nm≥750 850 nm≥2000 850 nm≥4700
    Zero dispersion wavelength Nm 1300~1324 _ _ _ _
    ZTeercoh ndiicsapl erSspioecni fsilcoaptieons Ps/nm.km ≤0.095 _ _ _ _
    Fiber cutoff wavelength um ≤1260 _ _ _ _
    Mode field diameter um @@11535100nnmm--190..24±±00..48 _ _ _ _
    Mode field concentricity um ≤0.8 _ _ _ _
    Cladding diameter um 125±1.0 125±2.0 125±1.0 125±1.0 125±1.0
    Cladding non-circularity % ≤1.0 ≤2.0 ≤1.0 ≤1.0 ≤1.0
    cCoonactienngt/riccliatdy deirnrgor um ≤12.5 ≤12.5 ≤12.5 ≤12.5 ≤12.5
    Coating diameter um 245±10 245±10 245±10 245±10 245±10

    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
