main product photo

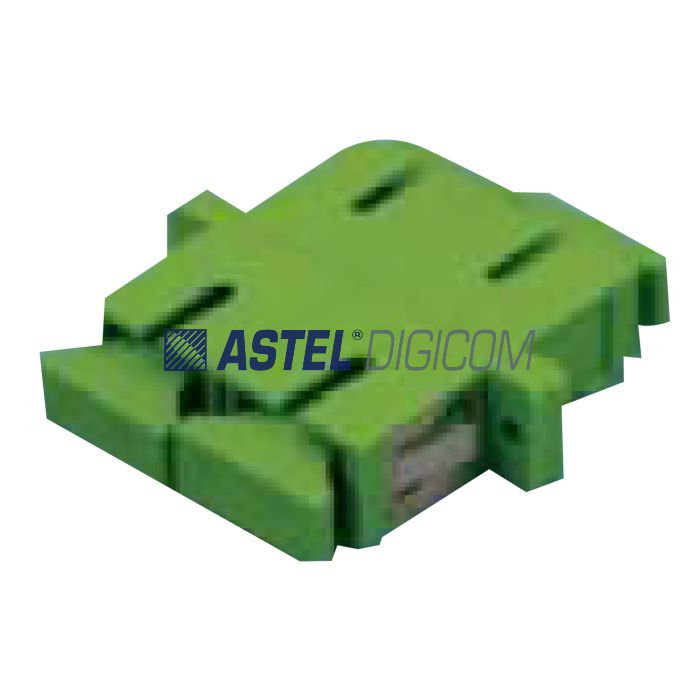

Fiber Optic Adapters SC Series

AED 0.00
In stock
Product Model
FO-ADP-SC-XX
    • ASTEL is a professional manufacturer of optical passive component ,fiber optic adapter products.
    We also produce ST,SC,FC,LC,MTRJ, and hybrid type fiber optic adapter.

    Main feature
    • Accurate mechanical dimensions compliant with international standards.
    • Telecordia, TIA/EIA Compliance.
    • Precise sleeve for excellent alignment.
    • Low insertion loss.
    • High performance and reliability.
    • Excellent exchangeability, repeatability and long life cycle.
    ASTEL is a professional manufacturer of optical passive component ,fiber optic adapter products.
    We also produce ST,SC,FC,LC,MTRJ, and hybrid type fiber optic adapter.



    More Information
    Technical specification
    Main Features

    1) Accurate mechanical dimensions compliant with international standards.
    2) Telecordia, TIA/EIA Compliance.
    3) Precise sleeve for excellent alignment.
    4) Low insertion loss.
    5) High performance and reliability.
    6) Excellent exchangeability, repeatability and long life cycle.

    Parameter APC PC UPC
    Nominal Fibre O/D 125μm ± 0.2μm 125μm ± 0.2μm 125μm ± 0.2μm
    Insertion Loss (Typical) 0.2dB 0.2dB 0.2dB
    Insertion Loss (Maximum) 0.3dB 0.4dB 0.4dB
    Return Loss (Typical) -65dB -50dB -55dB
    Mating Durability (500 cycles) ≤ 0.2dB ≤ 0.2dB ≤ 0.2dB
    Temperature Stability ≤ 0.3dB ≤ 0.3dB ≤ 0.3dB
    Operating Temperature °C -40°C to +80°C -40°C to +80°C -40°C to +80°C
    Storage Temperature °C -40°C to +85°C -40°C to +85°C -40°C to +85°C



    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
