RR Kabel Electrical Panel Wire – Tri-Rated 90°C

AED 1,150.00

In stock

Product Model

RRKPANELWIREHRXXX

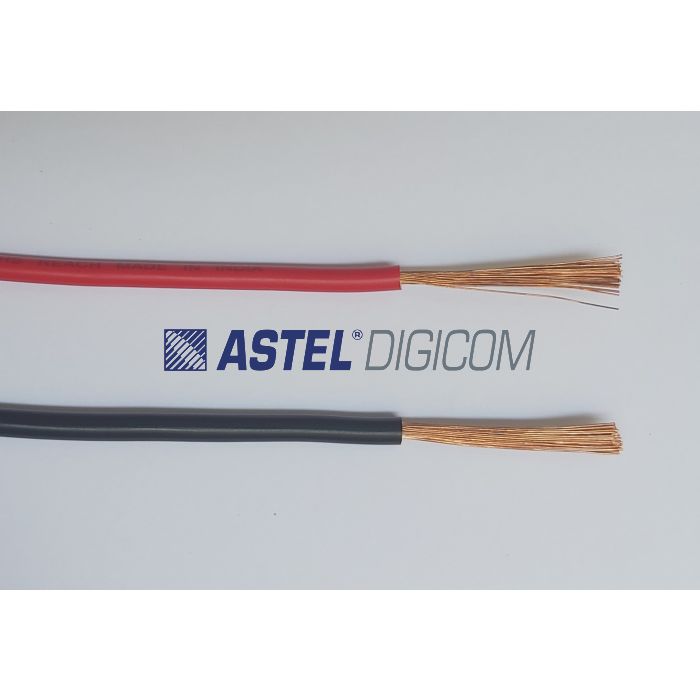

RR Kabel Electrical Panel Wire is a flexible, heat-resistant Tri-Rated wire designed for switch control, relay and instrumentation panels, power switchgear, rectifier equipment, motor starters and controllers. It features a Class 5 flexible plain copper conductor manufactured to BS EN 60228:2005 specifications with PVC insulation. The cable is rated at 600/1000V under BS 6231 and operates at 90°C, with capability up to 105°C for 15,000 hours.

Details

Key Features

Tri-Rated flexible electrical panel wire
Class 5 flexible plain copper conductor
Conductor specification: BS EN 60228:2005
PVC insulation
Voltage rating: 600/1000V
Temperature rating: 90°C
Up to 105°C for 15,000 hours
Minimum bending radius: 6 × OD
Designed for high-temperature applications
Flame-retardant cable construction
Suitable for switch control panels
Suitable for relay and instrumentation panels
Suitable for power switchgear
Ideal for motor starters and controllers
Suitable for internal connections in rectifier equipment
Available in multiple conductor sizes from 0.50 mm² to 240 mm²
Multiple insulation colors available for panel wiring identification

Technical specification

More Information

Technical specification

Technical specfications:

Technical Parameter	Specification
Conductor	Class 5 Flexible plain copper conductor to spec BS EN 60228:2005 (Previously BS6360)
Insulation	PVC
Insulation color	Black, Red, Blue, Yellow, Green/Yellow, Grey, Brown, Orange, White, Violet, Green, Pink
Voltage rating	BS6231: 600/1000V
Temperature Rating	BS6231: 90°C (105°C for 15000 hours)
Minimum Bending Radius	6xOD

Technical specifications (Dimensions):

No. of Cores x Nominal Cross Section Area (mm2)	AWG	Nominal thickness of insulation mm	Normal Overall Dia mm	Nominal Weight (Kg/Km)	UL Style Number
1x0.50	22	0.80	2.55	12	1015
1x0.75	20	0.80	2.75	15	1015
1x1.00	18	0.80	2.90	18	1015
1x1.50	16	0.80	3.15	23	1015
1x.2.50	14	0.80	3.60	34	1015
1x4.00	12	0.80	4.15	48	1015
1x6.00	10	0.80	4.70	67	1015
1x10.00	8	1.14	6.40	119	1015
1x16.00	6	1.52	8.45	187	1015
1x25.00	4	1.52	9.60	291	1015
1x35.00	2	1.52	10.85	406	1015
1x50.00	1	2.02	13.30	580	1015
1x70.00	2/0	2.02	15.30	780	1015
1x95.00	3/0	2.02	17.10	1055	1015
1x120.00	4/0	2.02	18.45	1175	1015
1x150.00	250MCM	2.41	21.00	1425	1015
1x185.00	350MCM	2.41	22.90	1735	1015
1x240.00	450MCM	2.41	25.60	2310	1015

Technical specifications (Conductors and Electrical):

No of Cores x Nominal Cross Section Area (mm2)	AWG	Max dia of wires in conductors	Nominal thickness of insulation mm	Normal Overall Dia mm	Maximum Resistance of plain wires at 20 degC Ohms/Km	Current Rating Amps	Voltage drop mV/A/m
1x0.50	22	0.21	0.80	2.55	39.0	11	46.00
1x0.75	20	0.21	0.80	2.75	26.0	14	31.00
1x1.00	18	0.21	0.80	2.90	19.5	17	22.00
1x1.50	16	0.26	0.80	3.15	13.3	31	15.00
1x.2.50	14	0.26	0.80	3.60	7.98	30	9.10
1x4.00	12	0.31	0.80	4.15	4.95	41	5.70
1x6.00	10	0.31	0.80	4.70	3.30	53	3.80
1x10.00	8	0.41	1.14	6.40	1.91	75	2.20
1x16.00	6	0.41	1.52	8.45	1.21	100	1.40
1x25.00	4	0.41	1.52	9.60	0.780	136	0.89
1x35.00	2	0.41	1.52	10.85	0.554	167	0.64
1x50.00	1	0.41	2.02	13.30	0.386	204	0.45
1x70.00	2/0	0.51	2.02	15.30	0.272	259	0.32
1x95.00	3/0	0.51	2.02	17.10	0.206	321	0.24
1x120.00	4/0	0.51	2.02	18.45	0.161	374	0.19
1x150.00	250MCM	0.51	2.41	21.00	0.129	418	0.16
1x185.00	350MCM	0.51	2.41	22.90	0.106	480	0.13
1x240.00	450MCM	0.51	2.41	25.60	0.0801	593	0.10

Technical Notes:

Table in accordance with BS EN 60228:2005 (Previously BS6360)

Current ratings are based on a conductor operating temperature of 85°C and ambient air temperature of 45°C and assumes single cable isolated in free air.

Correction factors (Ambient Temperature):

Ambient Temperature	45°C	50°C	55°C	60°C	65°C	70°C	75°C
Reduction factor	1.0	0.97	0.90	0.82	0.73	0.63	0.52

Correction factors (Cables grouped together or bunched together):

Number of cables in group	2	3	4	5	6	7	8
Reduction factor	0.80	0.70	0.65	0.60	0.56	0.53	0.50
