Used for indoor general purpose wiring, appliance wiring, extensions sockets. Suitable for all kinds of general electrical applications using 110V/220V/230V voltage supplies.

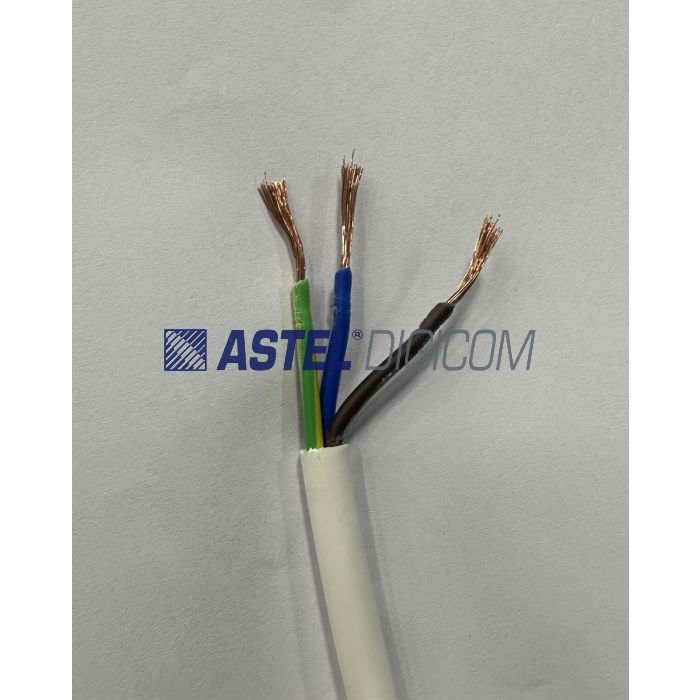

Electrical 3 Core PVC Insulated & PVC Sheated Circular Multicore Flexible Cable H05VVF BS6500Applications:Used for indoor general purpose wiring, electrical appliance wiring, extensions sockets. Suitable for all kinds of general electrical applications using 110V/220V/230V voltage supplies in public areas. Suitable for pendant lighting drops and as a general supply lead.Conductor: Plain Annealed Copper Flexible circular Conductor Class 5 Flexible plain copper conductor a per spec BS EN 60228:2005 (Previously BS6360)Insulation: PVC Insulation complyying with BS7655 Type T12Outer Sheath: PVC Insulation complying with BS7655 for Type TM2Sheath Color: Normally White, but other colors available on requestHarmonized code designation: H05VVFTemperature Rating: -15°C to 70°C
Class 5 Flexible plain copper conductor to spec BS EN 60228:2005 (Previously BS6360)
Insulation
PVC
Insulation color
Black, Blue, yellow-Green
Outer Sheath
PVC
Outer Sheath Color
Normally White, (Black also available)
Minimum Bending Radius
6X Cable OD
Voltage Rating
300/450V
Technical specifications (Dimensions):
No of Cores x Nominal Cross Section Area (mm2)
Conductor Dia (mm) (approx)
Conductor construction
Strands x Dia
Normal insulation thickess
mm
Mean Overall Dia
mm
Nominal weight (kg/Km)
3Cx0.75
1.14
24x0.21
0.60
6.6
58
3Cx1.00
1.31
32x0.21
0.80
7.0
69
3Cx1.50
1.59
30x0.26
0.70
8.2
96
3Cx2.50
2.05
50x0.26
0.80
9.7
144
3Cx4.00
2.60
56x0.31
0.80
11.3
210
Technical Notes:
Table in accordance with BS EN 60228:2005 (Previously BS6360)
Current ratings are based on a conductor operating temperature of 85°C and ambient air temperature of 45°C and assumes single cable isolated in free air.
Correction factors (Ambient Temperature):
Ambient Temperature
45°C
50°C
55°C
60°C
65°C
70°C
75°C
Reduction factor
1.0
0.97
0.90
0.82
0.73
0.63
0.52
