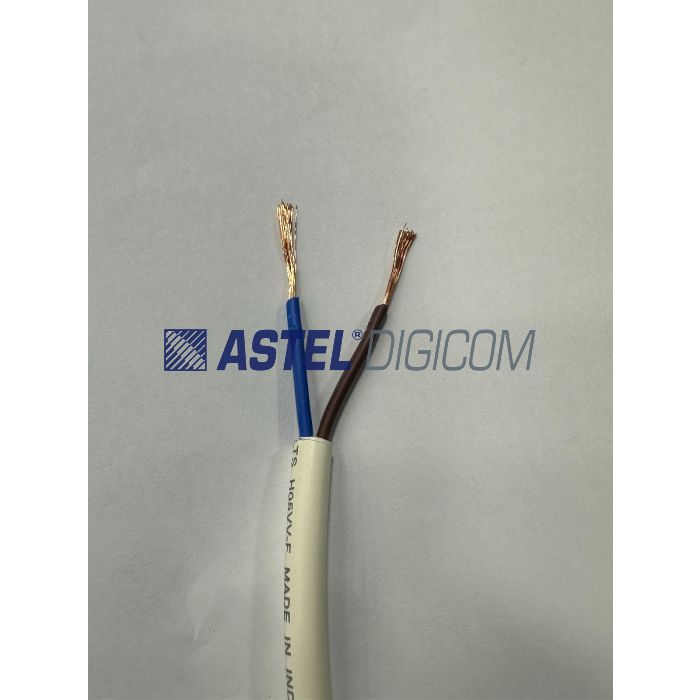

RR Kabel 2 Core H05VVF PVC Insulated Flexible Cable
RR Kabel 2 Core H05VVF is a circular multicore flexible electrical cable designed for indoor general-purpose wiring, electrical appliances, extension sockets, pendant lighting drops, and general supply leads. It features a Class 5 flexible plain annealed copper conductor with PVC insulation and a PVC outer sheath. Rated at 300/450V, the cable is suitable for general electrical applications using 110V, 220V, and 230V supplies.
Key Features
- 2 core multicore flexible electrical cable
- H05VVF harmonized code designation
- Class 5 flexible plain copper conductor
- Conductor compliant with BS EN 60228:2005
- PVC insulation compliant with BS 7655 Type T12
- PVC outer sheath compliant with BS 7655 Type TM2
- 300/450V voltage rating
- Temperature rating: -15°C to +70°C
- Minimum bending radius: 6 × cable OD
- Black and blue core insulation colors
- Outer sheath normally supplied in white
- Black outer sheath also available
- Suitable for 110V, 220V and 230V applications
- Suitable for indoor general-purpose wiring
- Suitable for electrical appliance wiring
- Ideal for extension sockets and supply leads
- Suitable for pendant lighting drops
- Available sizes: 2C × 0.50, 0.75, 1.00, 1.50, 2.50 and 4.00 mm²
| Technical specification |
Technical Notes: Table in accordance with BS EN 60228:2005 (Previously BS6360) Current ratings are based on a conductor operating temperature of 85°C and ambient air temperature of 45°C and assumes single cable isolated in free air. Correction factors (Ambient Temperature):
