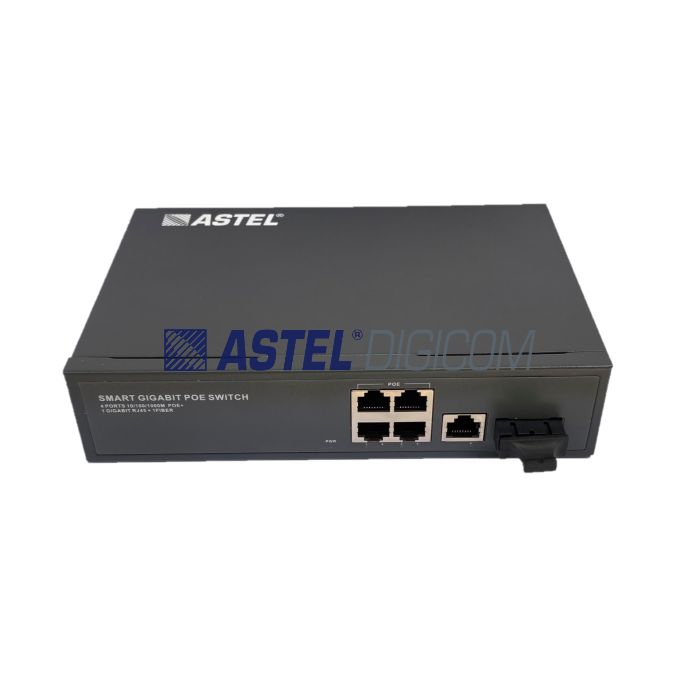

E2F-Ethernet to Fiber PoE type 4 Port
ASTEL E2F Ethernet to Fiber PoE Media Converter – 4 Port is designed to combine Gigabit Ethernet connectivity, Power over Ethernet (PoE) and fiber optic transmission in a compact networking device. It features four RJ45 Ethernet ports and one SC duplex fiber optic interface, supporting single-mode dual-fiber transmission up to 20km.
The converter supports IEEE 802.3af/at PoE standards to deliver network connectivity and power to compatible IP cameras, wireless access points and other PoE-enabled devices. It also provides selectable end-span and mid-span power pin assignments, lightning protection for network and power input ports, and fanless natural cooling.
Designed for professional fiber networking and IP surveillance installations, the ASTEL 4 Port PoE Media Converter is suitable for projects requiring centralized Ethernet connectivity and extended fiber transmission.
Key Features
-
Brand: ASTEL DIGICOM
-
Product type: Gigabit Ethernet to Fiber PoE Media Converter
-
Product model: AST-FO-MC-GB-4xPOE-SC-DF-20KM
-
4 × 10/100/1000Mbps RJ45 Ethernet ports
-
1 × Gigabit SC duplex fiber optic interface
-
Single-mode, dual-fiber transmission
-
Transmission distance: 20km
-
IEEE 802.3af and IEEE 802.3at PoE support
-
PoE power pin assignments: End-span and mid-span
-
Power supply support listed as 4 × 25.4W
-
Maximum listed PoE power: 100W
-
Lightning protection on network and power input ports
-
Fanless design with natural cooling
-
LED indicators for PoE status, speed, duplex and network link
-
Compact design for professional network installations
-
CE, FCC Part 15 Class B and RoHS listed in manufacturer specifications
| Technical specification | TECHNICAL SPECIFICATIONS:
|
|---|
