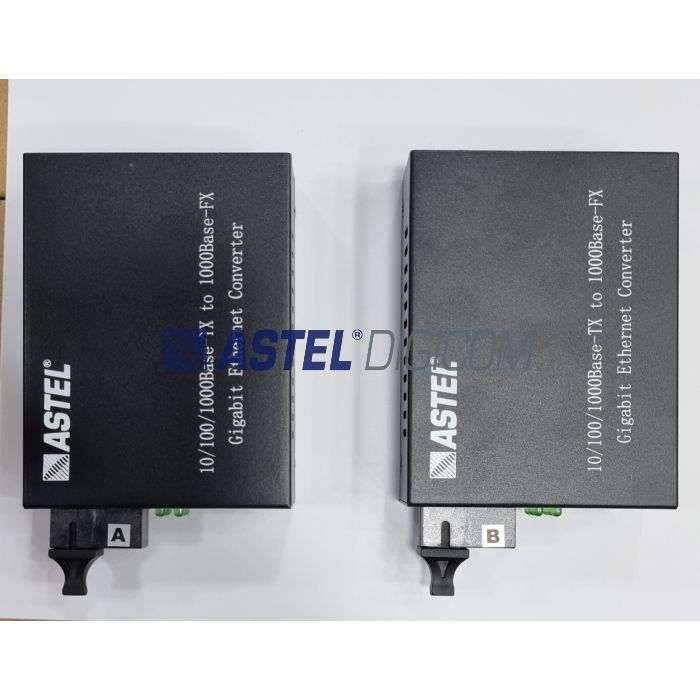

E2F-Ethernet to Fiber Media Converter GB Single Mode Single Fiber
AED 125.00
In stock
Product Model
AST-FO-MC-GB-SM-SF
It inter-converts electrical signals of 10/100/1000 Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 120 KM (Single Mode Fiber E9/125 Fiber) via fiber optical cables. It supports transmission in single-mode single fiber.
ASTEL- series 10/100/1000 MHz Ethernet media converter adopts switching technology to fulfill media conversion. It complies with IEEE802.3z and IEEE802.3ab standards, and supports two types of media network connections, 10/100/1000 Base-T and 1000Base-SX/LX. It inter-converts electrical signals of 10/100/1000 Base-T twisted pairs with optical signals of 1000Base-SX, extending the transmission distance of a network from 100m via copper cables to 120 KM (Single Mode Fiber E9/125 Fiber) via fiber optical cables.
| Technical specification | Main Features 1) Supporting inter-conversion between 10/100/1000 Base-TX and 1000Base-SX. 2) Supporting full-duplex and half-duplex and its auto-sensed. 3) Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation. 4) Supporting the transmission of extra-long VLAN packets. 5) Supporting Quality of Service (QoS) and ensuring the transmission of VoIP packets. 6) Supporting STP to form a redundant network.
|
|||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
