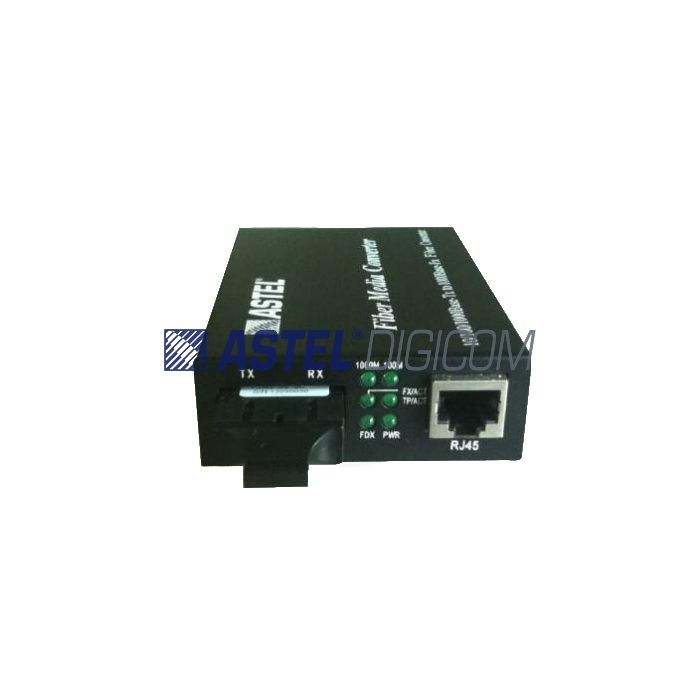

ASTEL Gigabit Ethernet to Fiber Dual Fiber Media Converter – Single Mode & Multimode
Available in single-mode dual fiber (AST-FO-MC-GB-SM-DF) and multimode dual fiber (AST-FO-MC-GB-MM-DF) configurations, the series supports SC fiber optic connections. The single-mode model offers listed transmission distance options of 25, 40, 60 and 80km, while the multimode model supports up to 220m over 62.5/125µm fiber and 550m over 50/125µm fiber.
The converter supports full-duplex and half-duplex operation with automatic sensing, automatic twisted-pair crossover, VLAN frame transmission, QoS and Spanning Tree Protocol (STP). It is suitable for Ethernet network extensions, fiber backbone connections and professional network infrastructure installations requiring copper-to-fiber media conversion.
Key Features
-
Product series: ASTEL E2F Gigabit Ethernet to Fiber Media Converter
-
Product models: AST-FO-MC-GB-SM-DF and AST-FO-MC-GB-MM-DF
-
Ethernet speed: 10/100/1000Mbps
-
Converts copper Ethernet signals to fiber optic signals
-
Copper network interface: 10/100/1000Base-T
-
Optical network interface: 1000Base-SX/LX
-
Dual fiber optical transmission
-
Single-mode and multimode versions available
-
SC fiber optic connector interface
-
Single-mode operating wavelengths: 1310nm / 1550nm
-
Multimode operating wavelength: 850nm
-
Single-mode transmission distances: 25km, 40km, 60km and 80km, depending on configuration
-
Multimode transmission distance: 220m over 62.5/125µm fiber
-
Multimode transmission distance: 550m over 50/125µm fiber
-
Supports full-duplex and half-duplex operation
-
Automatic duplex sensing
-
Automatic twisted-pair crossover
-
Supports transmission of extended VLAN packets
-
IEEE 802.1Q VLAN support
-
IEEE 802.1p Quality of Service (QoS) support
-
Supports VoIP traffic prioritization
-
IEEE 802.1D Spanning Tree Protocol (STP) support
-
IEEE 802.3ab and IEEE 802.3z Ethernet standards
-
Transmission delay: less than 10µs
-
Bit error rate (BER): less than 10⁻⁹
-
Mean Time Between Failures (MTBF): 100,000 hours
-
LED indicators for power, optical link, Ethernet link and data activity
-
Listed power options: AC 220V / DC -48V
-
Power consumption: 5W
-
Operating temperature: -10°C to +55°C
-
Operating humidity: 5%–90%
-
Storage temperature: -40°C to +70°C
-
External power supply version dimensions: 26 × 70 × 94mm
