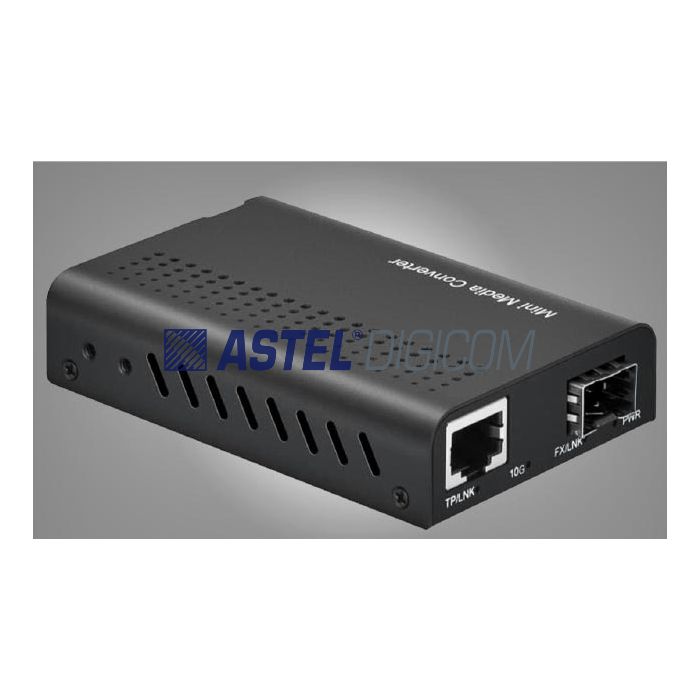

E2F-Ethernet to Fiber 10G SFP Media Converter LC Ports

AED 300.00
In stock
Product Model
AST-FO-MC-10G-SFP-XX
    • ASTEL MC-10G-SFP-XX is a high performance 10G Optical Media Converter.  Using Optical -Electrical conversion, optical signal amplification, clock extraction and optical regeneration with WDM (DWDM/CWDM) technology, we can transmit 10G Ethernet signals over long distance. On the existing fiber infrastructure, it can quickly improve the communication capacity, expand the BW while using low cost and high performance solutions. It is easy to install and maintain.
    ASTEL MC-10G-SFP-XX is a high performance 10G Optical Media Converter.  Using Optical -Electrical conversion, optical signal amplification, clock extraction and optical regeneration with WDM (DWDM/CWDM) technology, we can transmit 10G Ethernet signals over long distance. On the existing fiber infrastructure, it can quickly improve the communication capacity, expand the BW while using low cost and high performance solutions. It is easy to install and maintain.
    More Information
    Technical specification
    Main Features

    1) Support jumbo frame.
    2) Support ITU Prescribed DWDM/CWDM wavelength.
    3) Support LFP function, ALS function
    4) Standard hot plugging
    5) Auto-negotiating Ethernet port (Speed and Half/Full Duplex).
    6) The transmission of extra-long packets / jumbo frame over VLAN.
    7) Easy-to-view LED indicators provides status to easily monitor network activity.
    8) Auto-crossover ethernet port (Support Auot MDI/MDI-X)

    Parameter Specifications
    Access mode 10/100/1000/10G Mbps Gigabit Ethernet
    Standard

    IEEE802.3u 100Base-TX/FX Fast Ethernet,
    IEEE802.3ab 1000Base-T,
    IEEE802.3an (10Gbase-T, IEEE802.3ae (10G base SR/LR/ER/ZR)
    Wavelength Depends on the SFP
    Port

    One RJ45 connector, connected to STP/UTP category-5 twisted pair

    One SFP Port
    Conversion meanss storing and forwarding
    MAC address table 1K
    Bu er space 1Mbit
    Flow control Full duplex: flow control; Half duplex: back pressure mode
    Max packet forwarding rate 14,880,950/sec
    BER <1/1000000000
    MTBF 50,000 hours
    LED indicator
    POWER (power),
    FX LINK (fiber link action),
    TP LINK1000 (twisted pair connection1000M),
    TP LINK100 (twisted pair connection 100M),
    TP ACT (twisted pair packetforwarding action)
    DIP Switch LFP Function, ALS Function, Working mode switching, Rate matching mode
    Power DC 5V~12V, 0.24A
    Power consumption 5W
    Operating temperature 0°C~55°C
    Operating humidity 5%~90%
    Storage temperature -10°C~70°C
    Maintaining humidity 5% ~ 90% non-condensing
    Dimensions 90mm (H) * 60mm (W) * 20 mm (D) (external power supply)
