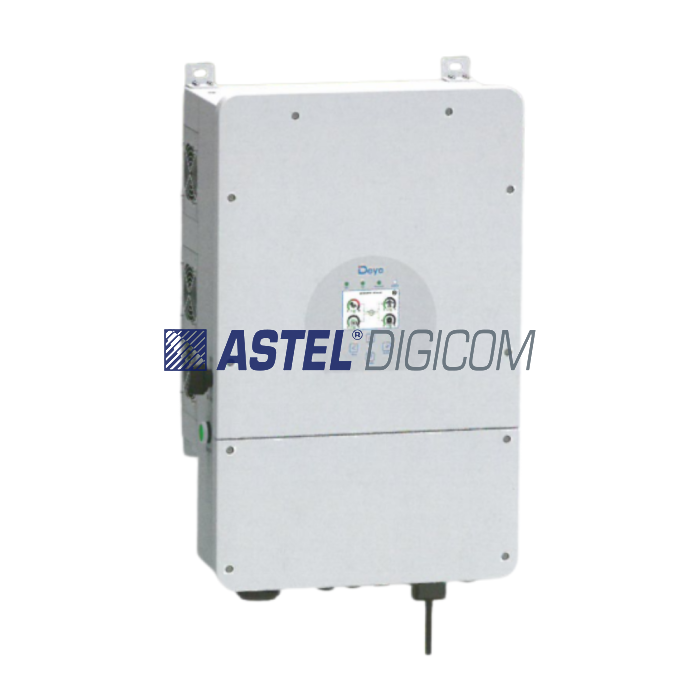

Deye Solar Hybrid Inverter Single Phase LV 8KW

AED 0.00

In stock

Product Model

SUN-8KSG05LP1-EU-SM2

Deye Hybrid Inverter Single Phase LV 8KW is a high-performance single-phase low-voltage hybrid inverter designed for residential and commercial solar energy systems. It supports lithium-ion and lead-acid batteries, smart energy management, and parallel operation for flexible on-grid and off-grid applications. Featuring IP65 protection, advanced cooling, high conversion efficiency, and intelligent monitoring options, it delivers reliable solar power performance for modern energy storage solutions.

Details

Key Features and Functionality:

Colorful touch LCD, IP65 protection degree
AC couple to retrofit the existing solar system
Max. 16 pcs parallel for on-grid and off-grid
operation; Support multiple batteries in parallel
Max. charging/discharging current of 250A
6 time periods for battery charging/discharging
Support storing energy from the diesel generator

Technical specification

More Information

Technical specification

Model	SUN-8K-SG05LP1 -EU-AM2
Battery Input Data
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40-60
Max. Charging Current (A)	190
Max. Discharging Current (A)	190
External Temperature Sensor	Yes
Charging Curve	3 Stages/Equalization
Charging Strategy for Li-ion Battery	Self-adaption to BMS
PV String Input Data
Max. DC Input Power (W)	10400
Rated PV Input Power (V)	370(125-500)
Start-up Voltage (V)	125
MPPT Voltage Range (V)	150-425
Full Load DC Voltage Range(V)	200-425
PV Input current (A)	26+26
Max. PV I_SC (A)	44+44
No. of MPP Trackers	3
No. of Strings MPP Tracker	2+2
AC Output Data
Rated AC Output Active Power (W)	8000
Max AC Output Active Power (W)	88000
AC Output Rated Current (A)	36.4/34.8
Max. AC Output Current (A)	40/38.3
Max. Continuous AC Passthrough (A)	50
Peak Power (off-grid)	2 times of rated power, 10s
Power Factor Adjustment Range	0.8 leading to 0.8 lagging
Power Factor	1
Output Frequency and Voltage	50/60HZ: L/N/PE 220/230Vac
Grid Type	Split Phase:2/3 Phase; Single Phase
Total Harmonic Distortion THDi	<3% (of nominal power)
DC Current Injection	<0.5% In
Efficiency
Max. Efficiency	97.60%
Euro Efficiency	97.00%
MPPT Efficiency	99.90%
Equipment Protection
Integrated	Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection
Over Voltage Category	DC TYPE II/AC TYPE III
Certifications and Standards
Grid Regulation	VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI021, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
Safety EMC/Standard	IEC/EN 61000-6-1/2/3/4, IEC/EN 6219-1, IEC/EN 621092
General Data
Operating Temperature Range (°C)	-40 to +60°C, >45°C Derating
Cooling	Smart Cooling
Noise (dB)	<30 dB
Communication with BMS	RS485;CAN
Weight (kg)	32
Cabinet Size (WxHxD mm)	420x670x233 (Excluding Connectors and Brackets)
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 Years(10 Years Optional)
