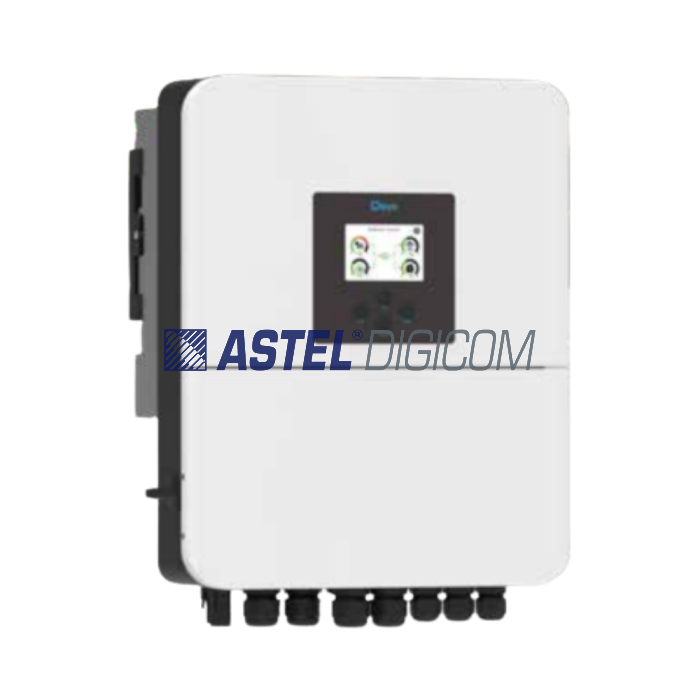

Deye 6KW Single Phase Solar Hybrid Inverter

AED 0.00
In stock
Product Model
SUN-6KSG04LP1-EU-SM2
    • Deye 6KW Single Phase Hybrid Inverter is a high-efficiency low-voltage hybrid inverter designed for residential and commercial solar energy systems. It supports lithium-ion and lead-acid batteries, AC coupling for retrofit installations, and parallel operation up to 16 units. Featuring IP65 protection, smart battery management, advanced monitoring interfaces, and up to 97.6% efficiency, it delivers reliable and flexible solar energy performance.

    Key Features and Functionality:

    • Colorful touch LCD, IP65 protection degree
    • AC couple to retrofit existing solar system
    • Max. 16 pcs parallel for on-grid and off-grid
      operation; Support multiple batteries parallel
    • Max. charging/discharging current of 140A
    • 6 time periods for battery charging/discharging
    • Support storing energy from diesel generator
    More Information
    Technical specification
    Model SUN-6K-SG04LP1
    -EU-SM2
    Battery Input Data
    Battery Type Lead-acid or Lithium-ion
    Battery Voltage Range (V) 40-60
    Max. Charging Current (A) 135
    Max. Discharging Current (A) 135
    Charging Strategy for Li-ion Battery Self-adaption to BMS
    Number of Battery Input 1
    PV String Input Data
    Max. PV Access Power (W) 12000
    Max. PV Input Power (W) 9600
    Max. PV Input Voltage (V) 500
    Start-up Voltage (V) 125
    MPPT Voltage Range (V) 150-425
    Rated PV Input Voltage (V) 370
    Max. Operating PV Input Current (A) 18+18
    Max. Input Short-Circuit Current (A) 27+27
    No. of MPP Trackers/
    No. of Strings MPP Tracker    		 2/1+1
    AC Input/Output Data
    Rated AC Input/Output Active Power (W) 6000
    Max. AC Input/Output Apparent Power (VA) 6600
    Rated AC Input/Output Current (A) 27.3/26.1
    Max. AC Input/Output Current (A) 30/28.7
    Max. Continuous AC Passthrough (grid to load) (A) 40
    Peak Power (off-grid) (W) 2 times of rated power, 10s
    Power Factor Adjustment Range 0.8 leading to 0.8 lagging
    Rated Input/Output Voltage/Range (V) 220/230 0.85Un-1.1Un
    Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
    Grid Connection Form L+N+PE
    Total Current Harmonic Distortion THDi <3% (of nominal power)
    DC Injection Current <0.5% In
    Efficiency
    Max. Efficiency 97.6%
    Euro Efficiency 96.5%
    MPPT Efficiency >99%
    Equipment Protection
    Integrated DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage  Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
    Surge Protection Level TYPE II(DC), TYPE II(AC)
    Interface
    Communication Interface RS485/RS232/CAN
    Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
    General Data
    Operating Temperature Range (°C) -40 to +60°C, >45°C Derating
    Permissible Ambient Humidity 0-100%
    Permissible Altitude 2000m
    Noise (dB) <30
    Ingress Protection(IP) Rating IP 65
    Inverter Topology Non-Isolated
    Over Voltage Category OVC II(DC), OVC III(AC)
    Cabinet Size (WxHxD mm) 376×470×241.5 (Excluding Connectors and Brackets)
    Weight (kg) 19
    Type of Cooling Natural Cooling
    Warranty

    5 Years/10 Years

    The Warranty Period depends on the Final Installation Site of the Inverter. More Info: Please Refer to the Warranty Policy
    Grid Regulation

    IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,

    OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
    Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
