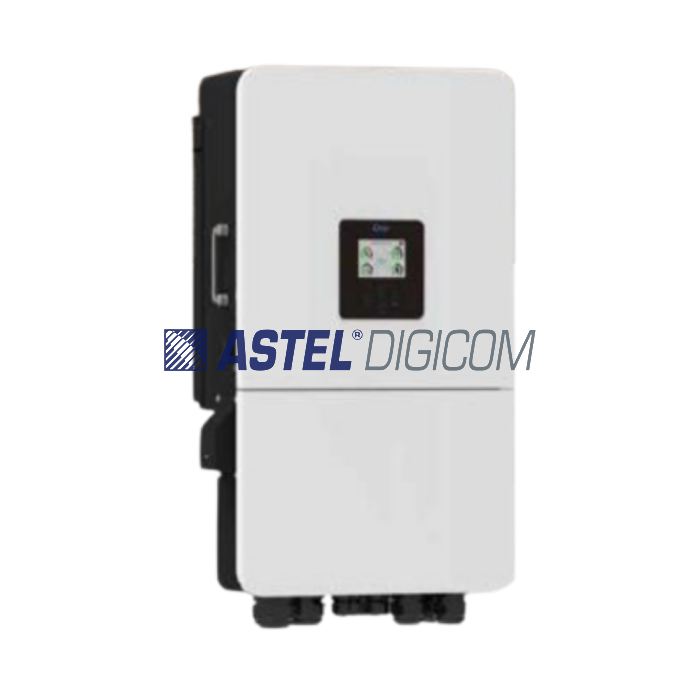

main product photo

Deye 20KW Three Phase LV Hybrid Solar Inverter

AED 0.00
In stock
Product Model
SUN-20KSG05-LP3-EU-SM2
    • Deye 20KW Three Phase LV Hybrid Inverter is a high-performance low-voltage hybrid inverter designed for commercial and industrial solar energy systems. It supports lithium-ion and lead-acid batteries, dual MPPT technology, and intelligent energy storage management for stable solar performance. Featuring IP65 protection, intelligent air cooling, parallel operation support, and up to 97.6% efficiency, it delivers reliable on-grid and off-grid power management for demanding energy applications.

    Key Features and Functionality:

    • Colorful touch LCD, IP65 protection degree
    • AC couple to retrofit the existing solar system
    • Max. 16 pcs parallel for on-grid and off-grid
      operation; Support multiple batteries in parallel
    • Max. charging/discharging current of 350A
    • 48V low-voltage battery, transformer isolation design
    • 6 time periods for battery charging/discharging
    • Support storing energy from the diesel generator



    .

    More Information
    Technical specification
    Model SUN-20K-SG05LP3
    -EU-SM2
    Battery Input Data
    Battery Type Lead-acid or Lithium-ion
    Battery Voltage Range (V) 40-60
    Max. Charging Current (A) 350
    Max. Discharging Current (A) 350
    Charging Strategy for Li-ion Battery Self-adaption to BMS
    Number of Battery Input 1
    PV String Input Data
    Max. PV Access Power (W) 40000
    Max. PV Input Power (W) 32000
    Max. PV Input Voltage (V) 800
    Start-up Voltage (V) 160
    MPPT Voltage Range (V) 160-650
    Rated PV Input Voltage (V) 550
    Max. Operating PV Input Current (A) 36+36
    Max. Input Short-Circuit Current (A) 54+54
    No. of MPP Trackers/
    No. of Strings MPP Tracker    		 2/2+2
    AC Input/Output Data
    Rated AC Input/Output Active Power (W) 20000
    Max. AC Input/Output Apparent Power (VA) 22000
    Rated AC Input/Output Current (A) 30.4/29
    Max. AC Input/Output Current (A) 33.4/31.9
    Max. Continuous AC Passthrough (grid to load) (A) 70
    Peak Power (off-grid) (W) 2 times of rated power, 10s
    Power Factor Adjustment Range 0.8 leading to 0.8 lagging
    Rated Input/Output Voltage/Range (V) 220/230, 230/400V 0.85Un-1.1Un
    Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
    Grid Connection Form 3L+N+PE
    Total Current Harmonic Distortion THDi <3% (of nominal power)
    DC Injection Current <0.5% In
    Efficiency
    Max. Efficiency 97.6%
    Euro Efficiency 97.0%
    MPPT Efficiency >99%
    Equipment Protection
    Integrated DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection, Thermal Protection, AC Output Overvoltage Protection, AC Output Short Circuit Protection, DC Component Monitoring, Overvoltage  Load Drop Protection, Ground Fault Current Monitoring, Arc Fault Circuit Interrupter (optional), Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch, DC Terminal Insulation Impedance Monitoring, Residual Current (RCD) Detection, Surge protection level
    Surge Protection Level TYPE II(DC), TYPE II(AC)
    Interface
    Communication Interface RS485/RS232/CAN
    Monitor Mode GPRS/WIFI/Bluetooth/4G/LAN(optional)
    General Data
    Operating Temperature Range (°C) -40 to +60°C, >45°C Derating
    Permissible Ambient Humidity 0-100%
    Permissible Altitude 3000m
    Noise (dB) <60
    Ingress Protection(IP) Rating IP 65
    Inverter Topology Non-Isolated
    Over Voltage Category OVC II(DC), OVC III(AC)
    Cabinet Size (WxHxD mm) 456×750×268.5 (Excluding Connectors and Brackets)
    Weight (kg) 50.6
    Type of Cooling Intelligent Air Cooling
    Warranty

    5 Years/10 Years

    The Warranty Period depends on the Final Installation Site of the Inverter. More Info: Please Refer to the Warranty Policy
    Grid Regulation

    IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,

    OVE-Richtlinie R25, G99, G99, VDE-AR-N 4105
    Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
