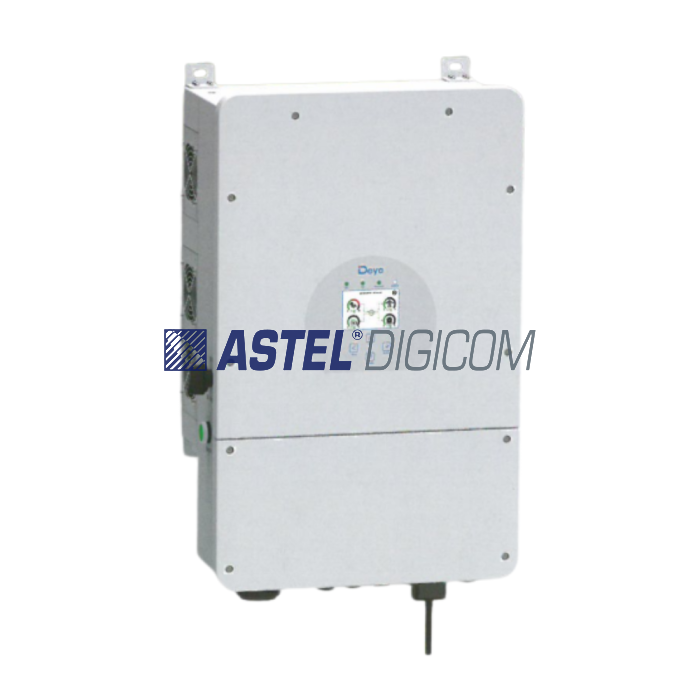

main product photo

Deye 12KW Three Phase LV Hybrid Solar Inverter

AED 0.00
In stock
Product Model
SUN-12KSG04-LP3
    • Deye 12KW Three Phase Hybrid Inverter is a high-efficiency low-voltage inverter designed for residential and commercial solar energy systems. It supports lithium-ion and lead-acid batteries, dual MPPT tracking, and intelligent energy management for on-grid and off-grid applications. Featuring IP65 protection, parallel operation support, advanced safety functions, and up to 97.6% efficiency, it delivers reliable and flexible solar power performance.

    Key Features and Functionality:

    • 100% unbalanced output, each phase; Max. output
    • up to 50% rated power
    • AC couple to retrofit the existing solar system
    • Max. 16 pcs parallel for on-grid and off-grid
      operation; Support multiple batteries in parallel
    • Max. charging/discharging current of 240A
    • 6 time periods for battery charging/discharging
    • Support storing energy from the diesel generator
    More Information
    Technical specification
    Model SUN-12K-SG04-LP3
    Battery Input Data
    Battery Type Lead-acid or Lithium-ion
    Battery Voltage Range (V) 40-60
    Max. Charging Current (A) 240
    Max. Discharging Current (A) 240
    Charging Strategy for Li-ion Battery Self-adaption to BMS
    Number of Battery Input 1
    PV String Input Data
    Max. DC Input Power (W) 15600
    Max. DC Input  Voltage (V) 800
    Start-up Voltage (V) 160
    MPPT Voltage Range (V) 200-650
    Rated DC Input Voltage (V) 550
    Max. Operating PV Input Current (A) 26+13
    Max.Input Short-Circuit Current (A) 34+17
    No. of MPP Trackers/
    No. of Strings Per MPP Tracker    		 2/2+1
    AC Input/Output Data
    Rated AC Input/Output Active Power (W) 12000
    Max AC Input/Output Active Power (W) 13200
     Rated AC Input/Output Current (A) 18.2/17.4
    Max. AC Input/Output Current (A) 20/19.1
    Max. Three-Phase Unbalanced Output Current (A) 27.3/26.1
    Max. Continuous AC Passthrough (grid to load)(A) 45
    Peak Power (off-grid)(W) 2 times of rated power, 10s
    Power Factor Adjustment Range 0.8 leading to 0.8 lagging
    Rated Input/Output Voltage/Range (V) 220/380V, 230/400 0.85Un-1.1Un
    Rated Input/Output Grid Frequency/Range(Hz) 50/45-55, 60/55-65
    Grid Connection Form 3L+N+PE
    Total Current Harmonic Distortion THDi <3% (of nominal power)
    DC Injection Current  <0.5% In
    Efficiency
    Max. Efficiency 97.6%
    Euro Efficiency 97.0%
    MPPT Efficiency >99%
    Equipment Protection
    Integrated DC Polarity Reverse Connection Protection, AC Output Overcurrent Protection AC Output Overvoltage Protection, AC Output Short Circuit Protection, Thermal Protection DC Terminal Insulation Impedance Monitoring, DC Component Monitoring, Ground Fault Current Monitoring Power Network Monitoring, Island Protection Monitoring, Earth Fault Detection, DC Input Switch Overvoltage Load Drop Protection, Residual Current (RCD) Detection, Surge protection level
    Surge Protection Level  TYPE II(DC), TYPE II(AC)
    Interface
    Communication Interface WIFI, RS485, CAN
    General Data
    Operating Temperature Range (°C) -40 to +60°C, >45°C Derating
    Permissible Ambient Humidity 0-100%
    Permissible Altitude 2000m
    Noise (dB) <55 dB(A)
    Ingress Protection(IP) Rating IP 65
    Inverter Topology Non-Isolated
    Over Voltage Category OVC II(DC), OVC III(AC)
    Cabinet Size (WxHxD mm) 422×658×254 (Excluding Connectors and Brackets)
    Weight (kg) 38
    Type of Cooling Intelligent Air Cooling
    Warranty

    5 Years/10 Years

    The Warranty Period depends on the Final Installation Site of the Inverter. More Info: Please Refer to the Warranty Policy
    Grid Regulation

    IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002,

    OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105
    Safety / EMC Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2
    Disclaimer
    1. Astel Digicom Electronics reserves the right to change or modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly, caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
    5. Deye is registered trademark of Ningbo Deye Inverter Technology Co., Ltd., Shenzhen, China.
    •
