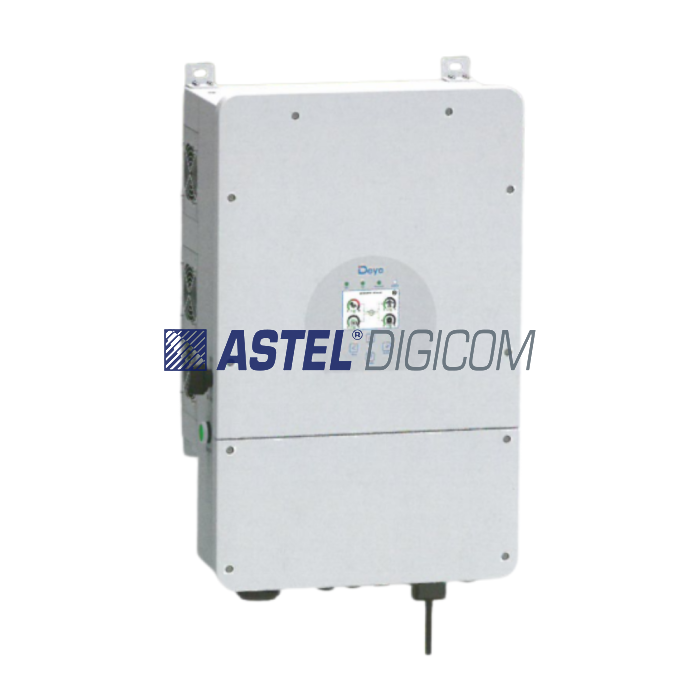

main product photo

Deye 12KW Single Phase Hybrid Solar Inverter

AED 0.00
In stock
Product Model
SUN-12KSG02-LP1-EU-AM3
    • Deye 12KW Single Phase Hybrid Inverter is a high-performance low-voltage hybrid inverter designed for residential and commercial solar energy systems. It supports lithium-ion and lead-acid batteries, intelligent energy storage management, and parallel operation for flexible on-grid and off-grid installations. Featuring IP65 protection, advanced monitoring, and high conversion efficiency, it delivers reliable and efficient solar power performance.

    Key Features and Functionality:

    • Colorful touch LCD, IP65 protection degree
    • AC couple to retrofit the existing solar system
    • Max. 16 pcs parallel for on-grid and off-grid
      operation; Support multiple batteries in parallel
    • Max. charging/discharging current of 250A
    • 6 time periods for battery charging/discharging
    • Support storing energy from the diesel generator
    More Information
    Technical specification
    Model SUN-12K-SG02-LP1-EU-AM3
    Battery Input Data
    Battery Type Lead-acid or Lithium-ion
    Battery Voltage Range (V) 40-60
    Max. Charging Current (A) 250
    Max. Discharging Current (A) 250
    External Temperature Sensor Yes
    Charging Curve 3 Stages/Equalization
    Charging Strategy for Li-ion Battery Self-adaption to BMS
    PV String Input Data
    Max. DC Input Power (W) 15600
    Rated PV Input Power (V) 370(125-500)
    Start-up Voltage (V) 125
    MPPT Voltage Range (V) 150-425
    Full Load DC Voltage Range(V) 200-425
    PV Input current (A) 26+26+26
    Max. PV ISC (A) 44+44+44
    No. of MPP Trackers 3
    No. of Strings MPP Tracker 2+2+2
    AC Output Data
    Rated AC Output Active Power (W) 12000
    Max AC Output Active Power (W) 13200
     AC Output Rated Current (A) 54.6/52.2
    Max. AC Output Current (A) 60/57.4
    Max. Continuous AC Passthrough (A) 70
    Peak Power (off-grid) 2 times of rated power, 10s
    Power Factor Adjustment Range 0.8 leading to 0.8 lagging
    Power Factor  1
    Output Frequency and Voltage 50/60HZ: L/N/PE 220/230Vac
    Grid Type Split Phase:2/3 Phase; Single Phase
    Total Harmonic Distortion THDi <3% (of nominal power)
    DC Current Injection  <0.5% In
    Efficiency
    Max. Efficiency 97.60%
    Euro Efficiency 97.00%
    MPPT Efficiency 99.90%
    Equipment Protection
    Integrated Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection, Surge Protection
    Over Voltage Category  DC TYPE II/AC TYPE III
    Certifications and Standards
    Grid Regulation VDE4105, IEC61727/62116, VDE0126, AS4777.2, CEI021, EN50549-1, G98, G99, C10-11, UNE217002, NBR16149/NBR16150
    Safety EMC/Standard IEC/EN 61000-6-1/2/3/4, IEC/EN 6219-1, IEC/EN 621092
    General Data
    Operating Temperature Range (°C) -40 to +60°C, >45°C Derating
    Cooling Smart Cooling
    Noise (dB) <30 dB
    Communication with BMS RS485;CAN
    Weight (kg) 32
    Cabinet Size (WxHxD mm) 420x670x233 (Excluding Connectors and Brackets)
    Protection Degree IP65
    Installation Style Wall-mounted
    Warranty

    5 Years(10 Years Optional)
    Disclaimer
    1. Astel Digicom Electronics reserves the right to change or modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly, caused by any error in publishing.
    4. E&OE (Errors and Omissions are excepted)
    5. Deye is registered trademark of Ningbo Deye Inverter Technology Co., Ltd., Shenzhen, China.
    •
