Control Signals RS 232/422/485 to Fiber
AED0.00
In stock
Product Model

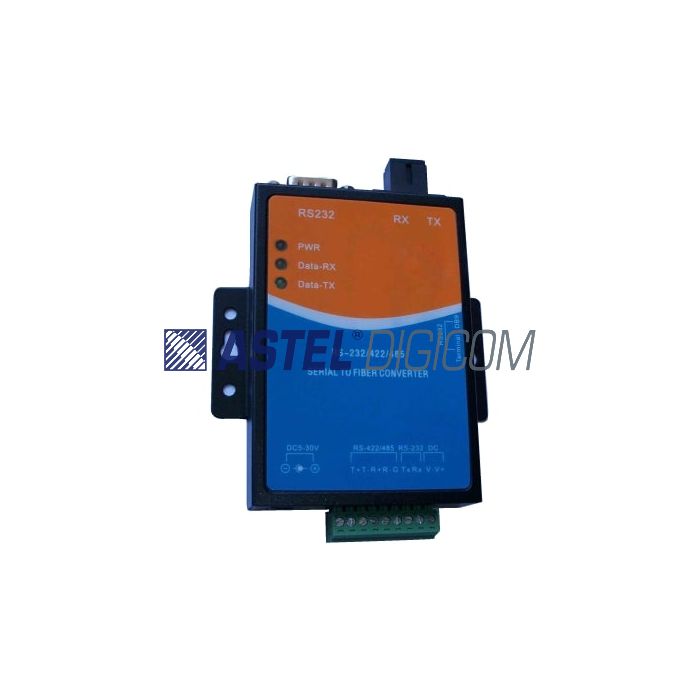

Industrial RS-485/422/232 to Fiber Converter
The RS232/422/485 serial bus to fiber converter adopts RS-232/RS-422/RS-485 triple mode circuits with auto baud rate and direction control. It extends the serial signal link distance to 2KM (Multi-mode Optical Fiber) or 100KM (Single-mode Optical Fiber) and also provides good immunity of EMI/EMS. It is widely used in industrial control and data gather areas, especially for electric automation system and traffic control department where RS232/422/485 need to long haul transmission.
The RS232/422/485 serial bus to fiber converter adopts RS-232/RS-422/RS-485 triple mode circuits with auto baud rate and direction control. It extends the serial signal link distance to 2KM (Multi-mode Optical Fiber) or 100KM (Single-mode Optical Fiber) and also provides good immunity of EMI/EMS. It is widely used in industrial control and data gather areas, especially for electric automation system and traffic control department where RS232/422/485 need to long haul transmission.
| Technical specification | Main Features 1) Point-to-Point transmission2) RS-232/RS-422/RS-485 to fiber all in one design3) Converting serial to Multi-mode or Single-mode fiber4) RS232 with DB9 and Terminal connector selectable by DIP switch5) LED indicator for data port communication6) Auto baud rate detection 300~115.2Kbps7) Extend serial signal through fiber cable(simplex or duplex both ok)8) Provide DIN-Rail installation9) Operating temperature range -10°C to 60°C10) With DC power and AC power connection optional11) RoHS Compliance
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
