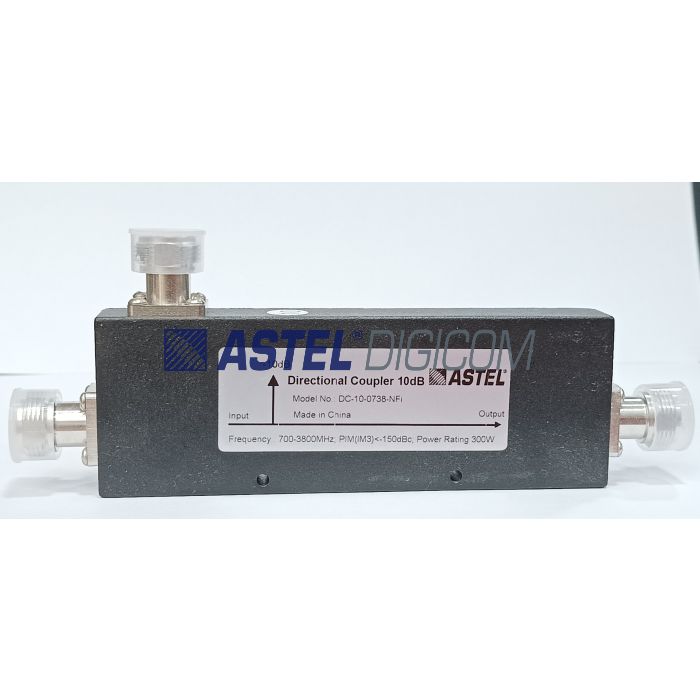

Power Directional Coupler 698-3800 MHz Cavity type
AED 55.00
In stock
Product Model
DC-X-0738-NF
Power Directional Coupler is used to Split the RF Power signal in unequal ratios. The OUT branch carries the larger portion of the signal while the Tapoff branch carries the smaller portion of the RF input signal. The split of signal depends on the Tapoff dB value. Higher the dB value of the coupler, the lesser is the RF signal in the output branch. Main advantages of Astel Power Directional couplers are, frequency range 698 MHz-3.8 GHz, Low PIM, and low VSWR. Astel Directional couplers offers great vibration performance, excellent mechanical and electrical performance etc. This type is most widely used in Radio communication equipment, microwave test and ground launch systems, and electronic instruments.
Power Directional Coupler is used to Split the RF Power signal in unequal ratios. The OUT branch carries the larger portion of the signal while the Tapoff branch carries the smaller portion of the RF input signal. The split of signal depends on the Tapoff dB value. Higher the dB value of the coupler, the lesser is the RF signal in the output branch. Main advantages of Astel Power Directional couplers are, frequency range 698 MHz-3.8 GHz, Low PIM, and low VSWR. Astel Directional couplers offers great vibration performance, excellent mechanical and electrical performance etc. This type is most widely used in Radio communication equipment, microwave test and ground launch systems, and electronic instruments.
| Technical specification | Main features: 1. Wide bandwidth2. Low Insertion Loss3. Low PIM4. Low VSWR5. Cavity structure6. High Power Handling
