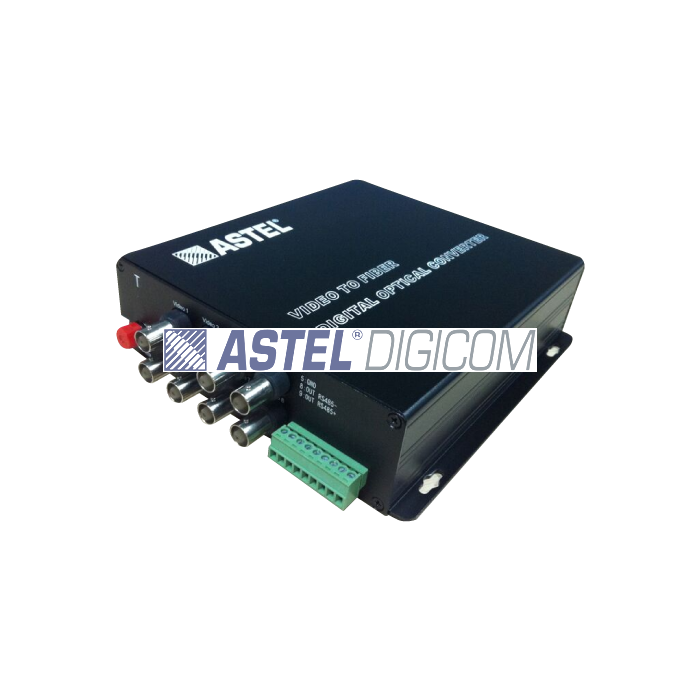

main product photo

Video to Fiber Converter V2F

AED 0.00
In stock
Product Model
AST-V2F-1V1D-SM-20KM / AST-V2F-4V1D-SM-20KM
    • ASTEL series of Video to Fiber Converter (V2F) adopt the advanced digital video and optical fiber transmission technology, and implement the transmission of real-time video and synchronisation signals with no-distortion and high quality video effect.
    ASTEL series of Video to Fiber Converter adopt the advanced digital video and optical fiber transmission technology, and implement the transmission of real-time video and synchronization signals with no-distortion and high quality video effect. The play-and-plug design makes the installation more convenient and easier, and no user adjustments are require
    More Information
    Technical specification
    Main Features

    1) Stand alone design
    2) 8-bit digital code and non-compression video transmission
    3) 5Hz-10MHz video channel
    4) Automatic compatible PAL, NTSC and SECAM video system
    5) With AGC circuit, constant input optical power, and large dynamic range

    Parameter AST-V2F-1V1D-SM-20KM AST-V2F-4V1D-SM-20KM
    Video
    Video interface number 1 Channel Video + 1 Data 4 Channel Video + 1 Data
    Bandwidth of video 8MHz 8MHz
    Video input & output impedance 75 Ω (imbalance), BNC 75 Ω (imbalance), BNC
    Video input & output voltage 1Vpp 1Vpp
    Di erential gain DG <1% ( typical value) DG <1% ( typical value)
    Di erential phase DP <0.6° ( typical value) DP <0.6° ( typical value)
    Weighted signal-to-noise ratio S/N ≥ 67dB (Weighted） S/N ≥ 67dB (Weighted）
    Data
    Physical interface The industry standardconnecting terminal The industry standardconnecting terminal
    Interface Signal RS485/RS422/RS232/Manchester RS485/RS422/RS232/Manchester
    Code rat 0-400Kbps 0-400Kbps
    BER < 10 -9 < 10 -9
    Audio
    Interface port Industrial standard port Industrial standard port
    Audio input/output impedance 600Ω(balance/imbalance) 600Ω(balance/imbalance)
    Audio input/output voltage 2Vpp (typical value) 2Vpp (typical value)
    Audio input/output level 0 dbm (typical value) 0 dbm (typical value)
    Audio bandwidth 10Hz~20kHz 10Hz~20kHz
    Audio digital bandwidth 24 bit 24 bit
    Audio signal-to-noise ratio S/N ≥95Db ( weighted) S/N ≥95Db ( weighted)
    Ethernet
    Physical interface RJ45 RJ45
    Operating mode Full duplex / half duplex Full duplex / half duplex
    Operating mode Full duplex/ full-duplex Full duplex/ full-duplex
    Support agreement IEEE802.3, 10M,10/100M adaptive IEEE802.3, 10M,10/100M adaptive
    Phone
    Physical interface RJ11 RJ11
    Voice bandwidth 8kHz 8kHz
    Special function Supportthecall display，
    With hands-free function    		 Supportthecall display，
    With hands-free function
    Working mode Pointtopointlink,
    SPC Exchanges method    		 Pointtopointlink,
    SPC Exchanges method
    Optical
    Connector FC/ST (optional) FC/ST (optional)
    Fiber type single-mode fiber, single fiber single-mode fiber, single fiber
    Transmission distance single mode 20Km single mode 20Km
    Environmental demand
    Environmental temperature -30°C+75°C -30°C+75°C
    Storage environment -40°C+85°C -40°C+85°C
    Relative humidity 0-95% ( no condensation) 0-95% ( no condensation)
    Power supply voltage AC220V/50Hz AC220V/50Hz
    Dimensions 10.8*10.6*2.7(cm) 17.3*17.3*3(cm）
