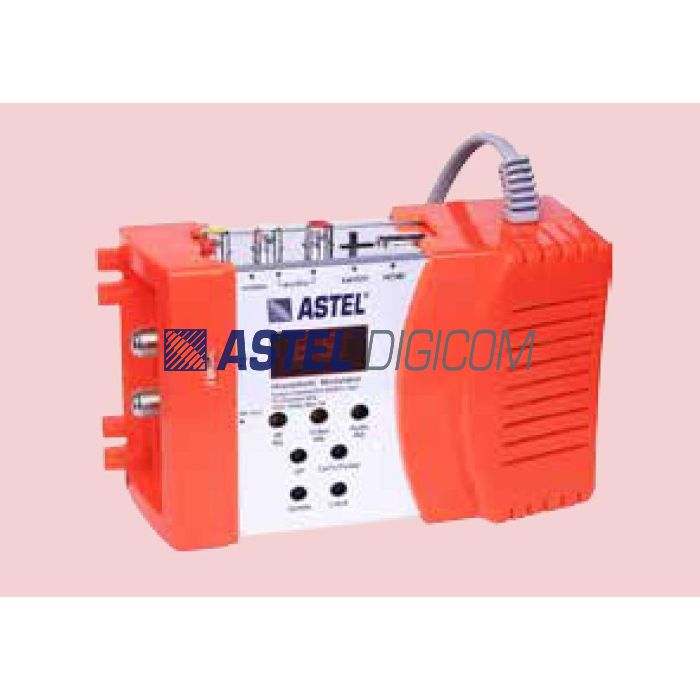

ASTEL HDMI/AV to RF modulators are manufactured with high quality SMD components to provide high output and superior RF performance. These modulators can be used for small CATV systems and CCTV applications.
ASTEL HDMI/AV to RF modulators are manufactured with high quality SMD components to provide high output and superior RF performance. These modulators can be used for small CATV systems and CCTV applications.
Main Features1) MCU Controlled PLL, High accuracy and stability of visual carrier and audio subcarrier. 2) Audio Subcarrier selectable 5.5 MHz, 6.0 MHz, 6.5 MHz 3) With RF Loop input and auto store when power outage. 4) LED Channel number display. 5) Double Side band modulation for non adjacent usage.
Model
MOD-HDMI-RF
RF
RF Frequency Output
47-870 MHz
RF Output level
90 dBuV
Visual Carrier Frequency accuracy
± 5KHz
AV Ratio
-15±2 dB
Output return loss
14 dB
Spurios Rejection
50 dB
Output Impedance
75 Ω
Video
TV format
B,G, D,K, M,N, H, I,
Video input | Frequency Range
20 Hz-6.0 MHz
Video Input Level
0.8 Vpp for 80% Modulation
S/N Ratio
55 dB
Frequency response
±2.5 dB (50 Hz-4.2 MHz)
Input Impedance
75 Ω
Audio
Audio input | Frequency Range
20 Hz-15 kHz
Audio Frequency deviation
±50 KHz
Audio Frequency Response
± 2 db
Audio Input impedance
600 Ω
RF output | Level/ Impedance/
90dBuV/75Ω
HDMI
HDMI Resolution
640x480@60 Hz, 480i, 480p,
576i, 576p, 720p, 1080i,
1080P @50/60 Hz
HDMI Version
HDMI V1.4
HDCP Version
HDCP 1.4
General
Power consumption
AC100-240V/50HZ/5VA
Operating temperature range
-20 deg C ~+ 40 deg C
Dimensions, weight/unit
120(l)x128(w)x54(h)mm/0.5kg
Dimensions, / master carton (20 units)
610(l)x295(w)x255(h)mm
Weight / master carton (20 units)
14 kg (net), 15 kg (gross)
