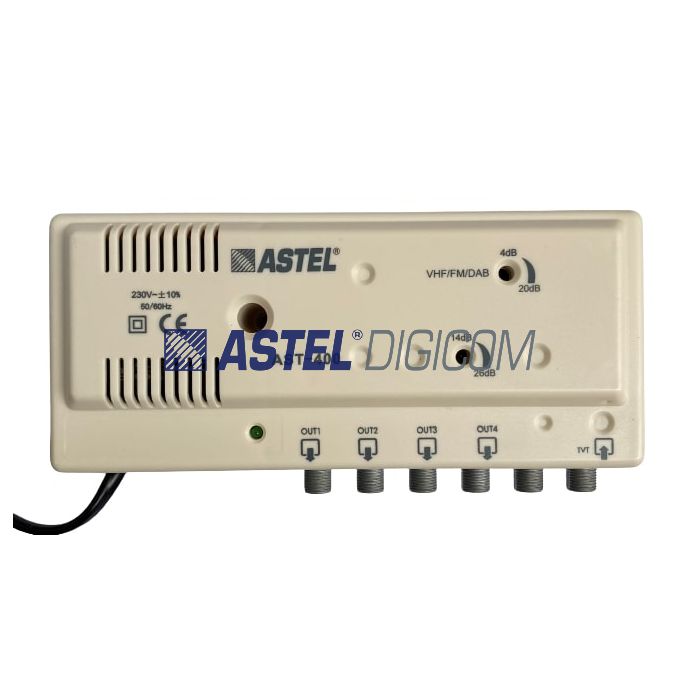

TV HOME AMPLIFIER 4 WAY

AED60.00
In stock
Product Model
AMPAST400

ASTEL introduced 1 input 4 output amplifier in a compact Die cast housing with plastic case. It has built in adjustable gain regulators and built in Power supply.





ASTEL introduced 1 input 4 output amplifier in a compact Die cast housing with plastic case. It has built in adjustable gain regulators and built in Power supply.

Main Features:

1) Full 862 MHz bandwidth amplifier.
2) Built in Power Supply.
3) Gain 20 dB.
4) Built in Gain control.
5) Die Cast Housing

More Information
Technical specification
Technical Characteristics
Frequency Range Band  VHF  UHF
MHz 47-318 470-862
Gain dB 20±1 28±2
Gain adjusment dB 16 12
Output Level dBuV 102 (DIN45004B)
99 (IMD3-60dB)
82 (XMOD-60dB)
86 (IMD2-60dB)
86 (CTB-60dB)
81 (CSD-60dB)
Noise Figure dB 4.2 3.5
Return Loss dB ≥10
Power VAC 230VAC±10% 50/60Hz
VA 6
Operating
Temperature
°C -10~+65
