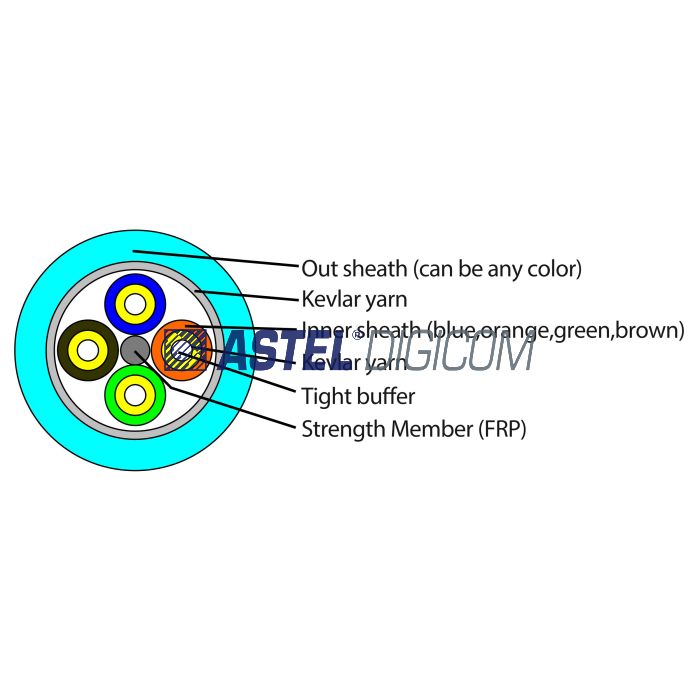

The ASTEL Breakout Fiber Optic Cable (FOC-BC-XX-YY) is designed for indoor optical fiber installations requiring increased tensile strength, crush resistance and mechanical protection. Its breakout construction incorporates individually protected cable elements with independent strength members and a dual-jacket design. Available in 2 to 12 fiber counts, the cable is suitable for indoor vertical installations, ceiling routing and surface laying. The manufacturer lists LSZH inner jackets and LSZH outer jacket options with rodent protection, along with a black TPU outer jacket option offering anti-crush properties. The series includes single-mode G.652D and multimode OM1, OM3 and OM4 fiber options. These configurations support professional indoor fiber optic infrastructure and optical connector interconnection applications.
The manufacturer's technical table provides the following numerical values for the 4-core configuration.
Parameter
Specification
Fiber count
4
Outer sheath diameter
7.5mm
Inner sheath diameter
2mm
Published weight value
47 (unit shown as KG; basis not specified)
Minimum allowable tensile strength – short term
1500N
Minimum allowable tensile strength – long term
600N
Minimum allowable crush load – short term
1000N/100mm
Minimum allowable crush load – long term
300N/100mm
Minimum bending radius – short term
20D
Minimum bending radius – long term
10D
D refers to cable diameter. The manufacturer's page does not clearly state the weight measurement basis, so the value 47 should be confirmed before publishing a weight attribute.
Available Fiber Types and Jacket Colors
Fiber Type
Fiber Specification
Published Color
Single Mode
G.652D
Yellow
Multimode OM1
62.5/125µm
Orange
Multimode OM3
50/125µm
Aqua
Multimode OM4
50/125µm
Aqua
The color associations are published with the LSZH jacket options. The alternative TPU outer jacket is listed in black only.
Main Applications
Indoor fiber optic cable installations
Vertical fiber cable routing
Ceiling fiber cable installations
Surface-mounted optical cable routing
Structured fiber optic cabling systems
Optical connector interconnections
Commercial building fiber infrastructure
Indoor optical network distribution
Note: Fiber attenuation for tight buffer cables is little higher than bare fibers.Note 2: For more detailed specification on Fiber Core Characteristics, please write to us at asteldigicom@eim.ae or visit fiber core manufacturer’s website.Disclaimer 1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted)
