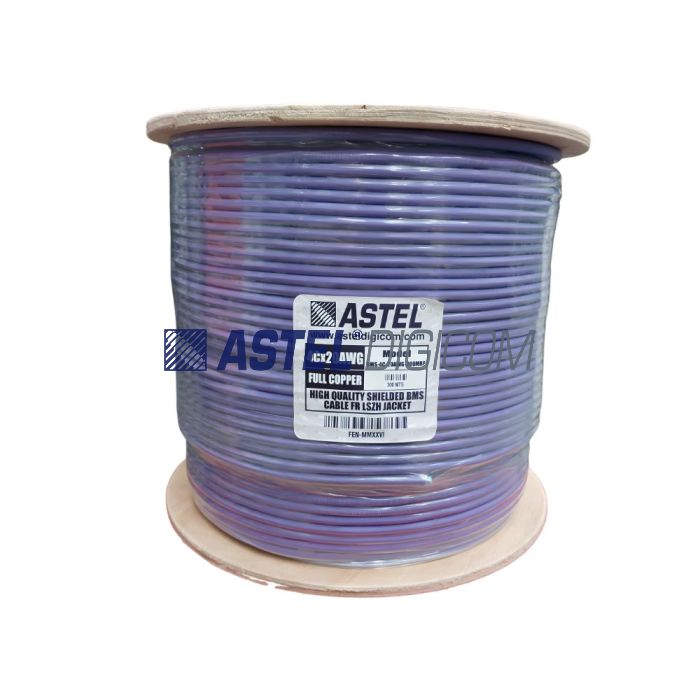

4 Core 20AWG LSZH Building Management System Cable

Details

Astel BMS Control Cables are manufactured from High Purity Stranded Copper and High
Quality HDPE Material. Astel BMS Control Cables are manufactured with LSZH Jacket and
compatible with IEC-60332 standards

Technical specification

More Information

Technical specification

Main Applications

1)Multiple strand annealed bare copper twisted and compacted for more homogeneity.

2) PE Insulated
3) LSZH jacket
4) Rated voltage: U/Uo-300V/300V
5) Operation Temperature: -30°C to +70°C for long duration.

Key Applications of BMS Cables:

HVAC Systems: Used to connect thermostats, sensors, and controllers for heating,
ventilation, and air conditioning management.
Lighting Control: Facilitates automated lighting systems to enhance energy
efficiency and scheduling.
Security & Surveillance: Connects access control devices, CCTV cameras, motion
detectors, and alarm systems.
Fire & Safety: Integrates smoke detectors and fire alarm systems for coordinated
emergency responses.
Energy Management: Connects energy meters, power monitors, and sensors to monitor
and optimize power usage.
Data & Communication: Provides high-speed, low-voltage signal transmission for
various building automation systems

Model Product Model Description	BMS-4C-20AWG 4 Core- 20AWG
Conductor	Bare Copper Stranded
Conductor Structure	23x0.17±0.01
No of Cores	4C
Conductor Cross Section Area	0.50 mm2
Conductor AWG	20 AWG
Insulation thickness	0.30±0.05 mm
Insulation OD	1.60±0.10
Insulation Color	Red/Black/White/Green
Wrapping	PET Tape
Collective Screen	Yes
Shielding Type	AL Foil
Shielding Foil	100%
Coverage with overlap
Drain Wire	Yes
Drain Wire Material	Tinned Copper
Drain Wire OD	1C x 0.5mm
Overall Jacket Thickness	0.70mm
Overall Jacket Diameter	5.00±0.30 mm
Jacket	LSZH
Jacket Color	Purple (Voilet)
Elongation (%)	>300
Tensile Strength (MPa)	>10
Operation Temp °C	-30°C to +80°C
Electric Specifications
Rated Voltage Dielectric Strength	300V 1500V/5min
Nominal DC Res @ 20°C (Ohms/Km)	≤34.60 Ω/Km
Insulation Resistance(M Ohms/Km)	150
Packing
Length each coil	300M
Number of coils in Carton	1
Weight of each carton (Kgs)	16.70 kgs

Notes:
* DC resistance changes at the rate of 0.393% / Deg C.
* Sequential meter marking on all cables.
* Higher core sizes cables also available.
* All measurements adjusted for ambient Temp of 20 deg C

Notes:
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss,
directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted
