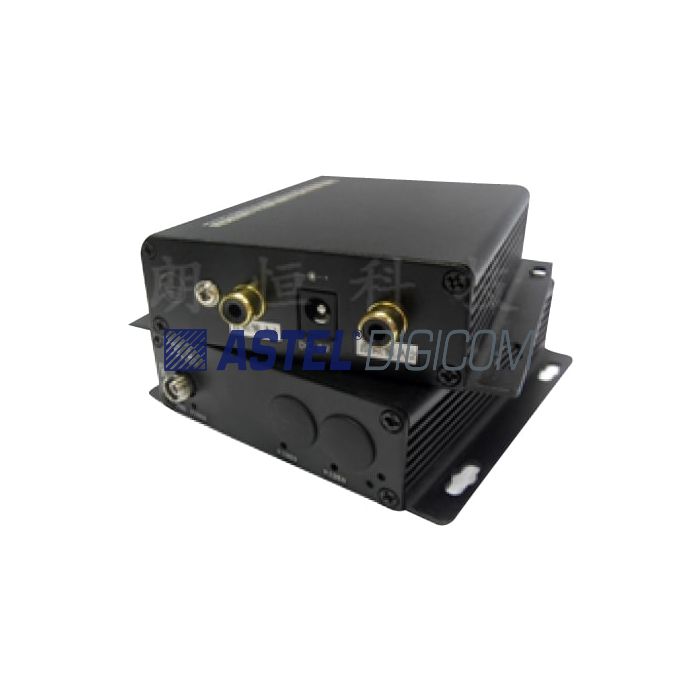

Audio to Fiber Converter

AED 0.00
In stock
Product Model
AST-A2F-SMF-20KM
The product adapts high speed fiber optic transmission technology to transmit stereo audio signal over single fiber optic cable; without signal loss. Modular design allows customers to choose or configure the device based on their applications. Small size, low power consumption, reliable performance, and easy to install
The product adapts high speed fiber optic transmission technology to transmit stereo audio signal over single fiber optic cable; without signal loss. Modular design allows customers to choose or configure the device based on their applications. Small size, low power consumption, reliable performance, and easy to install
More Information
Technical specification
Main Features

1) Aluminum case, stand alone design
2) Adopt high level anti-static and anti surge protection
3) Small design, stable performance
4) Wide optical dynamic range and advanced  automatic adaptive technology.
5) Low EMI and RFI interference
6) Support hot plug and play
7) Low power consumption, high anti-interference ability

Parameter Specifications
Input/Output Impedance 600ohm (unbalanced)
Max input/output voltage 3.0Vp-p
Frequency 10 Hz20kHz @±3dB
SNR > 70dB
Audio interface RCA
Optical interface FC, ST for option
Wavelength 850nm/1310nm/1550nm
Voltage DC5V
Working temperature -40°C+85°C
Working humidity 0~95% (non-condensing)
MTBF ≥100 thousand hours
