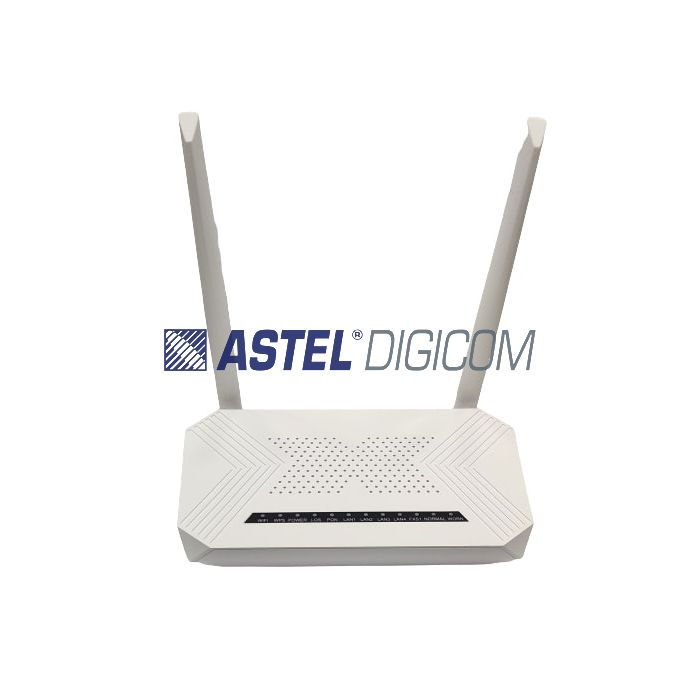

HGU-XPON-RT9602-GE is designed as HGU (Home Gateway Unit) in different FTTH solutions. The carrier class FTTH application provides different services access. ASTEL XPON-HGU model is based on mature and stable cost effective XPON technology. ASTEL XPON-HGU model is adopts hiigh reliability, easy management, configuration flexibility and good quality of service guarantess to met the technical performance of GPON Standard ITUTG 984.X.
1 x 10/100/1000Mbps(GE) and 1 x 10/100Mbps(FE) auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
Wireless
Compliant with IEEE802.11b/g/n,
Operating frequency: 2.400-2.4835GHz
support MIMO, rate up to 300Mbps,
2T2R,2 external antenna 5dBi,
Support: Multiple SSID
Channel: Auto
Modulation type: DSSS, CCK and OFDM
Encoding scheme: BPSK, QPSK, 16QAM and 64QAM
CATV Interface
RF, WDM, optical power : +2~-15dBm
Optical reflection loss: ≥45dB
Optical receiving wavelength: 1550±10nm
RF frequency range: 47~1000MHz, RF output impedance: 75Ω
RF output level: 78dBuV
AGC range: -13~+1dBm
MER: ≥32dB@-15dBm
LED
9 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、 Worn、 Normal(CATV)
Push-Button
3,For Function of Reset, WLAN, WPS
Operating Condition
Temperature: 0℃~+50℃
Humidity: 10%～90%（non-condensing）
Storing Condition
Temperature: -30℃~+60℃
Humidity: 10%~90%（non-condensing）
Power Supply
DC 12V/1A
Power Consumption
≤6W
Dimension
180mm×107mm×28mm（L×W×H）
Net Weight
0.2Kg
Disclaimer
Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. E&OE (Errors and Omissions are excepted).
