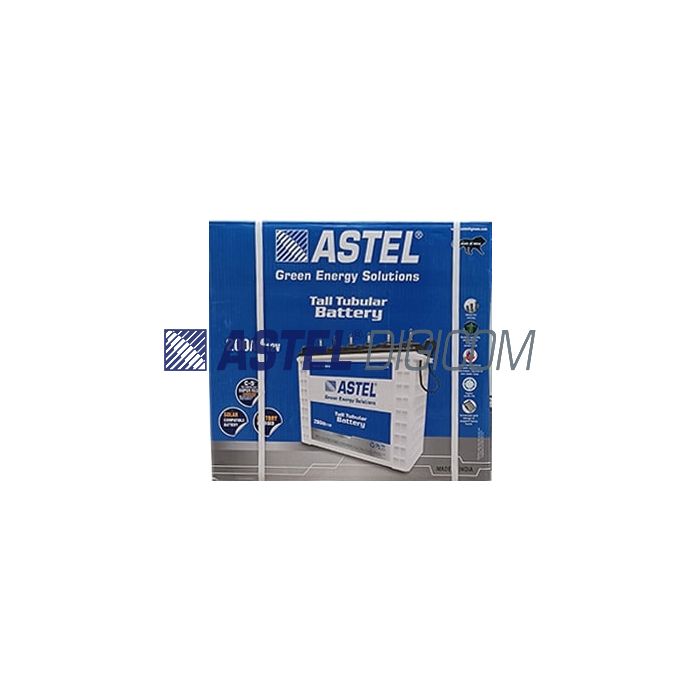

Astel Tall Tubular Battery are designed for deep cycle design technolgoy. With advance grid design and super active alloy material they are compatible with C-5 Technology resulting in super fast charging or high current charging. Astel TTB offers low maintenance with higher electrolyte voluem and low water loss.
Main Features1) Tall Tubular Technology. 2) Deep cycle design. 3) Conform to IS 13369-1992 BIS standards.4) Electrolyte level indicator5) High cyclic6) Low maintenance with higher electrolyte volume and low water loss.7) battery specially designed for frequency power cuts8) Enhanced grid design to support heavy loads9) C-5 technology super fast charging (Battery chargind compatiable on high currrent)10) Value for money
Product performance compatible to IS 1651-1991, IS 13369
Product performance compatible to IS 1651-1991, IS 13369
400W Backup (Min) Average current 32-33A
270 minutes
315 minutes
Electrolyte Volume
21.3±3%
21.3±3%
AH Efficiency
>90%
>90%
WH Efficiency
>80%
>80%
Recommended max period of storage
3 months @ 27°C
3 months @ 27°C
Operating Temp range
0°C to 50°C
0°C to 50°C
Grid Alloy
Lead Antinmony Alloy
Lead Antimony Alloy
Container and lid material
PPCP
PPCP
Sealing Method
Heat Sealing
Heat Sealing
Plate type
Tubular +(Pos)
Flat - (Neg)
Tubular +(Pos) Flat - (Neg)
Separator
Polyethylene
Polyethylene
Terminals
Bolted type terminals with lead coated fastners
Bolted type terminals with lead coated fasteners
Mounting
Vertical
Vertical
Acid Level indicator
Provided
Provided
Supply condition
Factory charged
Factory Charged
Packing
Carton with holders
Carton with Holders
Carton Dimensions
520x2100x485 cms
520x210x485 cms
Gross weight
64∼65 kgs
68∼69 Kgs
Qty in 1 pallet
20 pcs/ pallet400 pcs per 20FCL
20 pcs / pallet380 pcs per 20 FCL
Statutory Notice: 1. All batteries container lead, which is harmful for humans and environment. As per statutory requirements, the used battery must be returned to the authorized dealer, manufacturer or at the designated collection center.2. Please do not throw or discard the battery in standard or regular garbage dust bins provided at home or by your local municipal corporation. 3. This is not a toy and the empty battery casing/housing/container should not be used as a toy or for any storage of any kind or any other purpose.4. All batteries should be stored in safe place and should not be within the reach of children, They should be kept away from the reach of children and young adults below 18 years of age. All safety precautions must be followed irrepective of the status of the battery is filled or empty, charged or discharged, defective or working, in use or not in use. 5. MSDS (Material safety data sheet) is available and shall be provided on request. All instructions for usage/storage/discard of battery must be followed. Disclaimer 1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted)5. Longi is registered trade mark of Longi, China.
