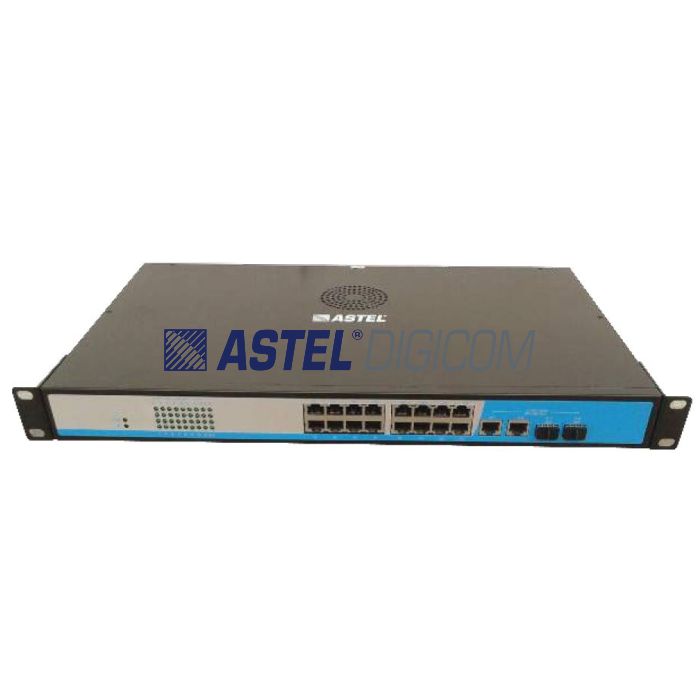

ASTEL PoE Switch 16P 16 x 10/100 with 2 GB SFP or RJ45 Combo Ports

AED 550.00
In stock
Product Model
AST-PoE-2F16E-PSE-AF
    • ASTEL-PSE-2F16E 16 Port Switch offers advance switching controls and provides power to network devices using Ethernet cables. This scalable and cost effective solution allows a managed network to efficiently expand to previously unattainable level

    LED displays show device status for easy power management and troubleshooting

    PoE technology conveniently eliminates the need to install networked devices, such as IP cameras and access points thereby reducing equipment and installation costs.

    .

    ASTEL-PSE-2F16E 16 Port Switch offers advance switching controls and provides power to network devices using Ethernet cables. This scalable and cost effective solution allows a managed network to efficiently expand to previously unattainable levels

    LED displays show device status for easy power management and troubleshooting

    PoE technology conveniently eliminates the need to install networked devices, such as IP cameras and access points thereby reducing equipment and installation costs.

    More Information
    Technical specification
    Main Features

    1. Up to 15.4W of Power on each port
    2. 16x10/100 Mbps ports with AutoUplink
    3. PoE Power Budget 360W
    4. Complies to IEEE 802.3AF PoE Standard and Backward
    5. Compatible with All IEEE 802.3af or Legacy devices
    6. Low Power Devices receive Only the Power they need
    7. Safe and Reliable Power to WLAN Access Points
    8. Automatic Detection and Protection of Non-standard Ethernet Terminals
    9. Supports 10/100 Base-T applications
    10. Supports IEEE 802.3x flow control for full duplex mode and back pressure for Half duplex mode
    11. 8K Entry MAC address table
    12. LED Indicators for monitoring power, link, activity and speed.
    13. Compact Design Fits Easily in WLAN Access
    14. Plug-and-Play no configuration required
    15. Internal power supply
    16. Fan Less Heat dissipation design.
    17. Save up to 83% power with Green Technology
    .

    PARAMETER
    		 AST-PoE-2F16E-PSE-AF
    Connector Type 16x 10/100M copper cable RJ45 ports
    (all ports support MDI/MDIX) + 2x 10/100/1000M SFP RJ45 ports)
    Network Media 10BASE-T: Cat3,4,5 UTP(≤100 meter)
    100BASE-TX: Cat5 or more UTP (≤100 meter)
    Bandwidth 8.8Gbps (non-blocking)
    MTBF 190,000 hours (about 21 years)
    Forwarding Mode Store-And-Forward
    Network Protocols IEEE 802.3i 10BASET; IEEE 802.3u 100BASETX;
    IEEE 802.3x Flow Control; IEEE 802.1af
    LED Display System: power supply; Every Port: connecting, PoE working status
    Power Supply Power input: AC100-240V 50/60Hz;
    (every country use a custom power plug)
    PoE Ports 16 ports support POE
    PoE Port Power 15.4W for each POE port,360W for total
    PoE Standard IEEE 802.3af
    PoE Feature All ports support MDI/MDIX
    Working Environment Operating Temperature: 0 ° ~ 55 ° C; Storage Temperature:
    -20 ° ~ 75 ° C; Operating Humidity:
    Certification CE Mark ,commercial; CE/LVD EN60950, RoHS
    Radiation CE mark, commercial; FCC Part 15 Class B;
    VCCI Class B; EN 55022 (CISPR 22), Class B
    Transmission Distance Cat.5 transmission distance: 100m , Optical:Depend on SFP
    Net weight 3.46kg
    Gross weight 4.5kg
    Product size 48.2cm*26.5cm*5.8cm
    Package Dimension 55cm*35cm*15cm
    Warranty 1 year warranty (3 months warranty for power adapter)



    Note 1: SFP module is not included in the accessories, please order is separately.
    Note 2: Only one type of uplink GB port can be used at any point of time. Either SFP or GB RJ45 can
    be used for uplink.
