ASTEL Optical Power Meter OPM with VFL

AED350.00
In stock
Product Model
AST-FO-OPM-SH350B
    • Pre Calibrated Wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm Absolute power measurement of dBm or uW Relative power measurement of dB Auto off function 270 Hz, 330 Hz, 1 KHz, 2 KHz Modulation frequency Low voltage indication, Applicable to versatile adapters (FC, ST, SC, LC), Handheld, large LCD backlight display, easy-to-use

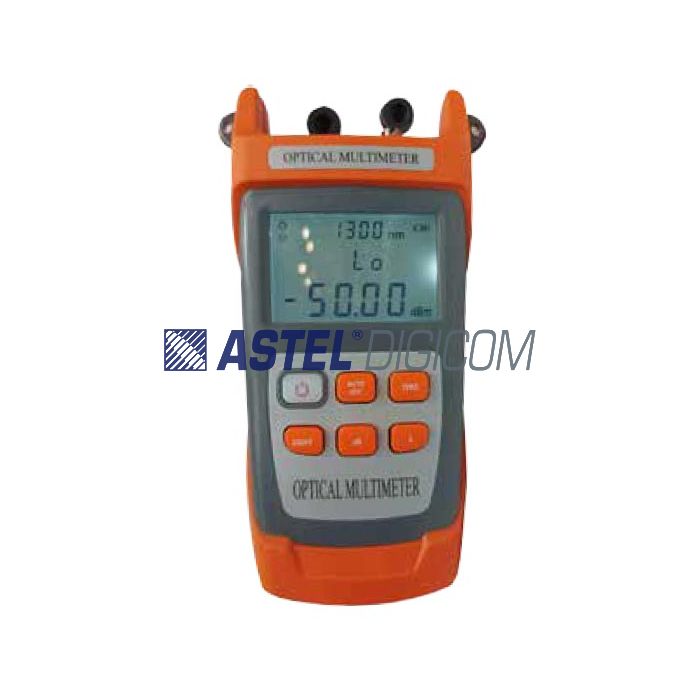

    main product photo
    Pre Calibrated Wavelengths: 850nm, 980nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm Absolute power measurement of dBm or uW Relative power measurement of dB Auto off function 270 Hz, 330 Hz, 1 KHz, 2 KHz Modulation frequency Low voltage indication, Applicable to versatile adapters (FC, ST, SC, LC), Handheld, large LCD backlight display, easy-to-use
    More Information
    Technical specification
    Model Product
    AST-FO-OPM-SH350B
    Wavelength range (nm)
    800~1700
    Detector type
    InGaAs
    Standard wavelength(nm)
    850, 980, 1300, 1310, 1490, 1550, 1625
    Power testing range (dBm)
    -50~+26
    Uncertainty
    ±5%
    Resolution
    Linearity: 0.1%,
    VFL Specifications:
    Wavelength (nm) 650±30 nm
    Output Power (mW) 10mW
    Mode CW/1 Hz/2 Hz
    Connector FC/SC/ST
    General specifications

    Connectors
    FC, ST, SC or FC, ST, (Option LC)
    Working temperature (°C)
    -10~+50 deg C
    Storage Temperature (°C)
    -30~+60 deg C
    Weight (gms)
    200 gms (without batteries)
    Dimension (mm)
    200×90×43 mm
    Battery
    3 pcs AA batteries (lithium battery is optional)
    Battery working duration(h)
    No less than 100 (according to battery volume)
    Auto power off time (min)
    10



    Disclaimer
    1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    2. All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
    3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
    4. Fujikura, FITEL, Sumitomo, AFL, JDSU, EXFO, or any other brand or its logo (anywhere mentioned in this catalogue) is owned by respective brand owners. These logo and trademarks are protected by intellectual property and copyright laws.
    5. E&OE (Errors and Omissions are excepted)
