Astel OLT EPON 4 PON Ports

AED0.00
In stock
Product Model
AST-PBB-EPON-OLT-4P

    • Product Description:

    ASTEL model AST-PBB-EPON-OLT-4P is economical and high performance EPON OLT. It is a 1U standard rack mounted equipment complying with IEEE 802.3ah, YD/T 14752006 and CTC 2.0.2.1 and 3.0. It has flexible, easy to deploy, small size, higher performance and other characteristics. The product is particularly suitable for residential broadband fiber access (FTTx), telephone and television, the power consumption information collection, video surveillance, networkin, private network applications and other applications.

    AST-PBB-EPON-OLT-4P has 4 PON Ports, 8 Uplink ports, (4xGE Copper RJ ethernet ports, 4xSFP(GE). Each of the PON Ports support upto 64 ONU's, the whole device support upto 256 ONU. This model is a small size OLT, easy to install, convenient, flexible, easy to deploy and high performance broadband access network.  It is appropriate to be deployed in compat room environment. This OLT can be used for Triple  play applications.

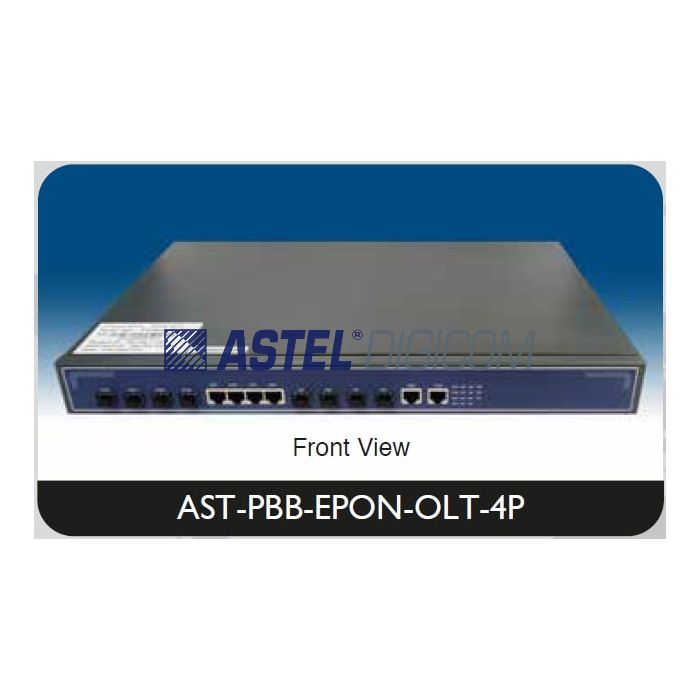

    main product photo

    Main Features:



    • 1U x 19 inch standard box EPON OLT with 4 PON Ports.
    • Compliant with IEEE802ah and YT/D1475-2006-EPON and China Telecom EPON Technical requirements.
    • QoS based port, VID, TOS, and MAC Address (32K Mac Address)
    • Support priority queue scheduling, support SP, WRR, or SP+WRR schedulding algorithm.
    • Support 4096 VLAN, transparent transmission and conversion, support VLAN stacking (QinQ).
    • Support 32K MAC line speed learning and aging, support AC address restriction.
    • Support IEEE 802.1D (STP), 802.1w ( RTSP) and MSTP Spanning tree protocols.
    • Support Multicast groups, IGMP V1/V2 snooping and IGMP Proxy.
    • Support Port based rate limitation and BW Control.
    • Support PON Line AES and triple curing encryption.
    • For more details please see the attached spec sheet.
    More Information
    Technical specification

    Technical Specification:

    Parameter AST-EPON-OLT-4 Port
    Management Rack  Type 1U 19-inch standard box
     PON Standard    4xEPON SFP Ports (PX20+), Receiving Sensitivity: <30 dBm, Transmission optical power +2 ~ +7 dBm, Transmission distance 20KM, Max Split ratio: 1:64
     PON Interface   Upstream SFP 1.25G
     Downstream SFP 1.25G
     Wavelength 1310 nm
    Uplink GE 4* RJ45 Copper Ethernet Ports 10//100/1000 Auto negotiation
     Uplink SFP 4*GE SFP
     Management Port    1 10/100BASE-Tx out band Ethernet Port
     1 CONSOL local management port.

     PON Port Attribute

    Transmission Distance

    Downstream: 1.25 Gbps
    Upstream: 1.25 Gbps

    		  20KM
     Port Rate  Downstream: 1.25Gbps
    Upstream: 1.25Gbps
     Wavelength  Forwarding: 1490nm
    Receiving: 1310nm
     Interface Type   SC/UPC
     Fiber Type  9/125μm SMF
    (Single Mode Fiber)
     Transmission
    Power    		   +2.0~+7dBm
     Receiving Sensitivity  ≤30dBm

     Network
    Management
    Method    		  Support CLI, SNMP, TELNET, SSH, WEB
     Backplane Bandwidth  128 Gbps
    MAC Table 32K
    Spanning Tree Protocol Support IEE 802.1d(STP), 802.1w (RSTP)
     QoS

    Support 802.1P (Priority queue scheduling

    Support SPWRR and S+WRR Scheduling algorithms.
     Size   440mm(L)*300mm(W)*44mm(H)
     Weight   3.5KG
     Power Supply  220AVC  AC: 90V~240V,47/63Hz

     Maximum Power  30W
    Ordering Information
     Ethernet SFP Optical Module    40KM twin-fiber type
     40KM single-fiber type
     10KM twin-fiber type


     Working Environment  Working Temperature  -5~+55°C
     Storage Temperature  -40~+85°C
    Relative humidity 5~90%(NonCondensing)



    Disclaimer
    Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
    All pictures are for illustrative purposes only. Actual product may be different in color and size, which may appear in product specifications.
    Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for
    any loss, directly or indirectly caused by any error in publishing.
    E&OE (Errors and Omissions are excepted).
