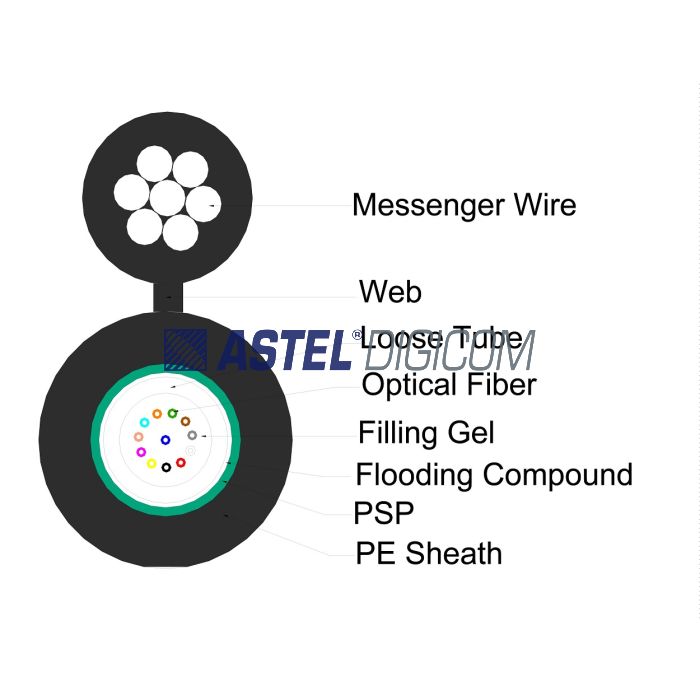

ASTEL cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.
ASTEL cable possesses high tensile strength and flexibility in compact cable sizes. At the same time, it provides excellent optical transmission and physical performance.
Note 1:Fiber attenuation for tight buffer cables is little higher than bare fibers. Note 2:For more detailed specification on Fiber Core Characteristics, please write to us at asteldigicom@eim.ae or visit fiber core manufacturer’s website.
Item
Test Method
Acceptance Requirements
Tensile Strength IEC 60794-1-2-E1
Sample length: No less than 50 metersLoading: 4000N Duration time: 10 minutes
Loss change ≤ 0.1dB @1550nm No fiber break and no sheath damage.
Crush Test IEC 60794-1-2-E3
Loading: 1000 N/100mmLoad time: ≥5minLoading: 3 point at 3 places
Loss change ≤ 0.1dB @1550 nm No fiber break and no sheath damage
Loss change ≤ 0.1 dB @1550 nm No fiber break and no sheath damage.
Water Penetration IEC 60794-1-2-F5
Height of water: 1m SaTmipmlee :l e2n4 ghtho:u r3 m
No water leakage at the end of the sample
Temperature Cycling IEC 60794-1-2-F1
Temperature step: +20oC→-40oC→+60oC→-40oC→+60oC→+20oC Number of cycle: 2 Time each step: 12 hours
Loss change ≤ 0.1 dB @1550 nm No fiber break and no sheath damage.
Bending Test IEC 60794-1-2-E11B
Bending Dia: 20 x cable diameter No. of cycle: 5
Loss change ≤ 0.1dB @1550nm No fiber break and no sheath damage
Drip Test IEC 60794-1-2-E14
Length: 0.3m Temperature: +70oC Duration of Test: 24 hrs
No filling compound shall drip from tubes
Disclaimer 1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice. 2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications. 3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing. 4. E&OE (Errors and Omissions are excepted)
