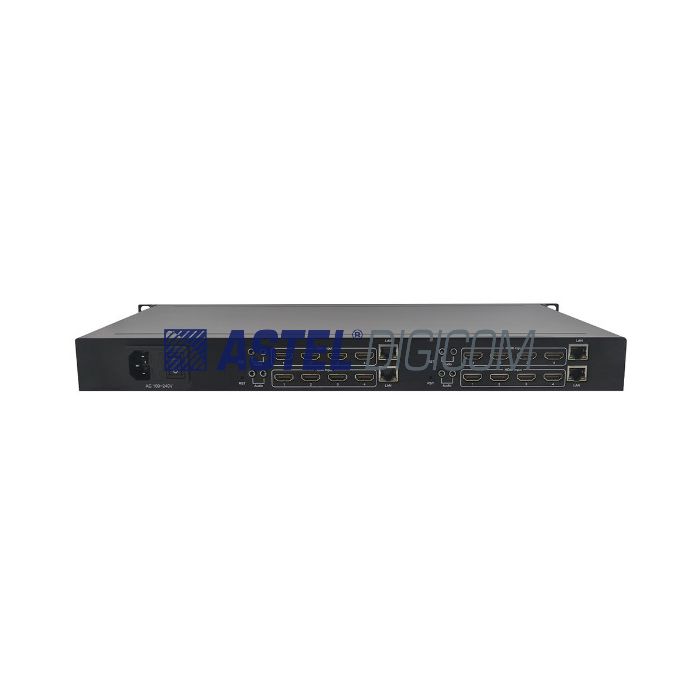

8xHDMI Inputs to IP Streaming Encoder H265
AED 4,450.00
In stock
Product Model
DHENH401PHU
DHE-NH401PHU 8xHDMI to IP Streaming Encoder H265 is a HD Audio and Video Encoding device with powerful functionality, which supports HDMI input with max resolution 3840x2160@ 30 fps and output stream resolution to 3840x2160@30 fps etc. It encodes HDMI video and audio signals into IP Streams that can be transmitted over the internet or a local network. This encoder works with SRT/ HTTP / HLS / FLV / RTSP / RTMP (S)/ UDP/ RTP (Unicast and Multicast) stream protocols and ONVIF too. This model can output mutliple streams simultaneously for each channel. The encoder can be used for online live broadcast, IPTV in Cable TV systems, Video Conferencing, digital signage, and other applications that required high quality video streaming. This encoder works with online live broadcast platforms such as YouTube, Facebook, Ustream and Twitter etc.
DHE-NH401PHU 8xChannel HDMI to IP Streaming Encoder H265 is a HD Audio and Video Encoding device with powerful functionality, which supports HDMI input with max resolution 3840x2160@ 30 fps and output stream resolution to 3840x2160@30 fps etc. It encodes HDMI video and audio signals into IP Streams that can be transmitted over the internet or a local network. This encoder works with SRT/ HTTP / HLS / FLV / RTSP / RTMP (S)/ UDP/ RTP (Unicast and Multicast) stream protocols and ONVIF too. This model can output mutliple streams simultaneously for each channel. The encoder can be used for online live broadcast, IPTV in Cable TV systems, Video Conferencing, digital signage, and other applications that required high quality video streaming. This encoder works withi online live broadcast platforms such as YouTube, Facebook, Ustream and Twitter etc.
| Technical specification | Main Features: 1) Support 1-8 channels HDMI input and encoding simultaneously. HDMI 1 & 2 support 3840x2160@30fps, HDMI 3 & 4 Support MAx 1080P @60fps2) Adopts Professional Encoding Chip, embedded Hi Linux system, high stability and efficiency. 3) User friendly web control UI, default IP is 192.168.168. 4) Support HTTP / HLS / FLV / RTSP / RTMP (S)/ UDP/ FTP (Unicast and Multicast) stream protocols and ONVIF. 5) Support output Multi RTMP (S) (Main stream and Sub Stream to different media streaming servers. 6) Mainstream suppot present resolution 3840x2160, 1920x1080, 1680x1200, 1600x900, 1440x1050, 1440x900, 1360x768, 1280x720, 1280x768, 1024x768, 1024x576, 960x540, 850x480, 800x600, 720x576, 720x540 720x480, 720x404, 704x576, 640x480, 640x360, 480x270 etc. 7) Support Text and Image insert as Stream logo for Main stream and Sub stream. 8) Automatic detect the input HDMI, output stream will show no signals when HDMi signals interrupted.9) Output stream bitrate adjustable.10) Support firmware upgrade. 11) Support Audio Digital gain12) Support remote control visa router port forward13) Support External Analog Audio Input14) Support TF/USB Recording Main Applications:1) IPTV (Wowza, X stream Codes, Media Server etc). 2) Online live broadcast (You Tube, Facebook, Upstream, Twitter). 3) NVR (Network Video Recorder).4) Recording System5) Digital Signage6) Teaching / Campus Broadcast7) Hotel IPTV System8) Video Conference
|
|---|
