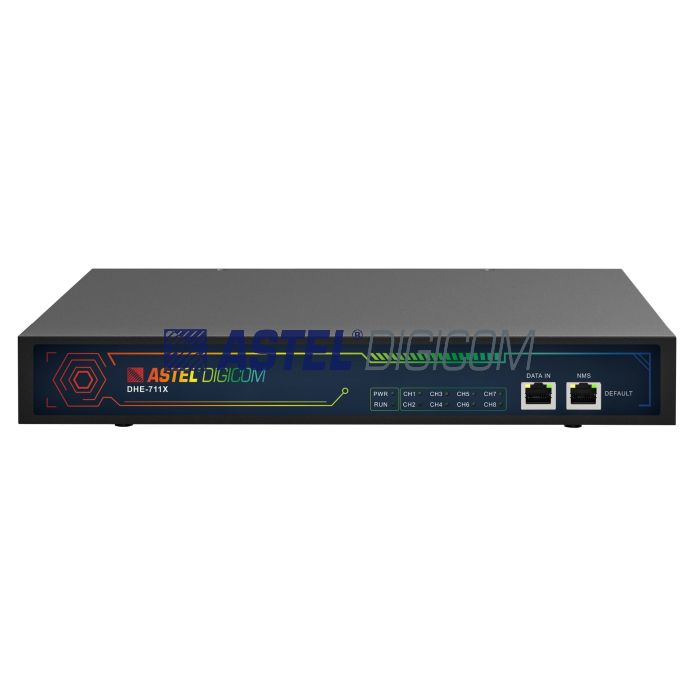

4/8 HDMI input to DVB-T/C Digital Encoder Modulator DHE-711X

AED 0.00

In stock

Product Model

DHE711X

DHE-711X (DHE-711X-0404, DHE-711X-0808) is a Encoder Modulator and converts 4/8 HDMI signals to DVB-T/C Modulator (COFDM/QAM Modulation). It incorporates H.264 Encoding and DVB-T/C Modulating functions in a single system. User can select the option of Digital RF Output as DVB-C or DVB-T. It has IP input and user can select channels from IP input and output it as Digital RF output. It is suitable for small Cable TV systems who want to provide few digital channels to their susbcribers. It is small and compact model and easy to set up and install. With the easy front panel control set up, and NMS access through an RJ45 Port, the system can be up and running in minutes..

Details

DHE-711X (DHE-711X-0404, DHE-711X-0808) is a Encoder Modulator and converts 4/8 HDMI signals to DVB-T/C Modulator (COFDM/QAM Modulation). It incorporates H.264 Encoding and DVB-T/C Modulating functions in a single system. User can select the option of Digital RF Output as DVB-C or DVB-T. It has an IP input to select the channels and output it as Digital RF Output. It is suitable for small Cable TV systems who want to provide few digital channels to their susbcribers. It is small and compact model and easy to set up and install. With the easy front panel control set up, and NMS access through an RJ45 Port, the system can be up and running in minutes.

Technical specification

More Information

Technical specification

Main Features:

1) Integrating H.264 encoding and modulating functions.
2) Compatible with multiple video formats.
3) 4/8 HDMI inputs source to DVB-T or C Digital RF Output.
4) Supports all major resolutions from 480i thru 1080Px60fps.
5) Supports CA PID Filtering, remapping, PSI/SI editing.

6) Offers 4 or 8 continuous output channels with 4 continuous channels in row.

7) Easy configuration with built in Web UI.

Technical Specifications	DHE-711X
Model Number	DHE-711X-0404 DHE-711X-0808
No of HDMI Inputs	4 8
No of RF Output Channels	4 8
Video
Video Encoding	H.264
Video Resolution	1920x1080P @ 60fps and 50 fps 1920x1080i @ 60 fps and 50 fps 1280x720P @ 60 fps and 50 fps 720x480p @ 60I 720x576 @ 50I
Video Bit Rate	2.000 ~ 18.000 Mbps
Audio
Audio Encoding	MPEG1, Layer II
Audio Sample rate	32/ 44.1/48 KHz
Audio Bit rate	64, 96, 128, 192, 25, 320, 384 Kbps


Modulator Section
Standard	DVB-C (QAM) DVB-T, COFDM
Bandwidth	6 MHz, 6 MHz,7 MHz, 8 MHz
Constellation	64QAM, 256QAM QPSK, 16 QAM, 64 QAM
Symbol Rate	3.6~6.96 Msps 6/7/8 Msps
Code Rate	1/2, 2/3, 3/4, 5/6, 7/8
Guard Interval	1/32, 1/16, 1/8, 1/4
FFT Mode	2K, 4K, 8K
MER	≥ 38 dB
Out-band rejection	≥60 dB
RF Frequency Output	50-999.99 MHz
RF Output Level	≥ 45 dBmV
Power supply
Input voltage to Adapter	100~240V AC
Input frequency	50/60Hz
Power Consumption (W)	≤60W
Environment
Work temperature	0°C~50°C
Storage temperature	-10°C~80°C
Work humidity	10%~90%
Physical characteristics
Size(W x H x D)	318mm x 260mm x 44mm
Weight	<3.7Kg

Disclaimer
1. Astel Digicom Electronics reserves the right to change, modify specifications without prior notice.
2. All pictures are for illustrative purposes only. Actual product may be different in color and size that may appear in product specifications.
3. Every effort is made to provide accurate information at the time of publishing, however Astel Digicom Electronics LLC is not responsible for any loss, directly or indirectly caused by any error in publishing.
4. E&OE (Errors and Omissions are excepted)
