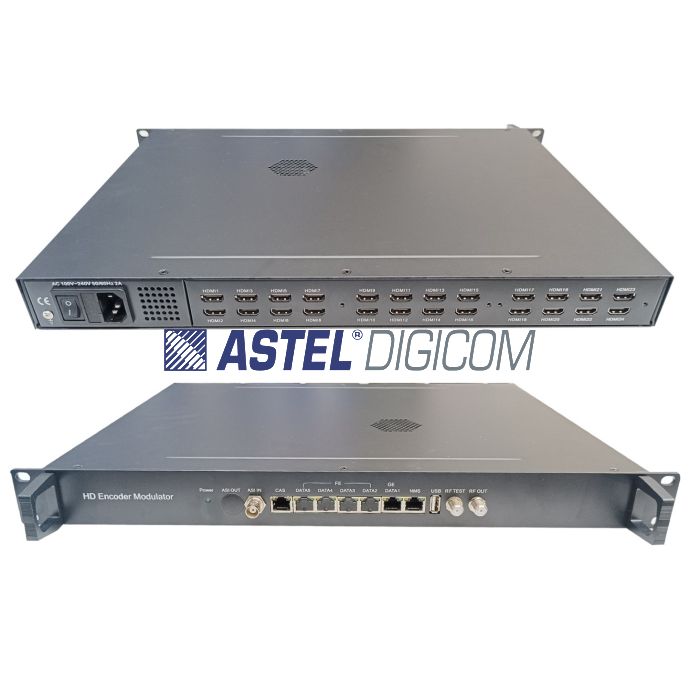

24xHDMI Input to DVBT Encoder Modulator DHE-NDS3544S
AED 0.00
In stock
Product Model
DHENDS3544S
DHE-NDS-3544S is a professional high intergration device which includes encoding, Multiplexing and Modulation. It support 16 HDMI inputs, 1 ASI input, 1 USB Player (Option), and 128 IP iputs via the GE Port. It also supports DVB-T RF Out with 8 non adjacent carriers and support 8/16 MPTS as mirror or 8/16 carriers through the GE port. This full function device makes it ideal for small Cable TV headend system, and its a smart choice for hotel IPTV system, entertainment system in sports bar, hospital and Multi Unit building. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.
DHE-NDS-3544S is a professional high intergration device which includes encoding, Multiplexing and Modulation. It support 24 HDMI inputs, 1 ASI input, 1 USB Player (Option), and 128 IP iputs via the GE Port. It also supports DVB-T RF Out with 8 non adjacent carriers and support 8/16 MPTS as mirror or 8/16 carriers through the GE port. This full function device makes it ideal for small Cable TV headend system, and its a smart choice for hotel IPTV system, entertainment system in sports bar, hospital and Multi Unit building. In conclusion, its high integrated and cost effective design makes the device widely used in varieties of digital distribution systems such as cable TV digital head-end, satellite digital TV broadcasting etc.
| Technical specification | Main Features: 1) 24 × HDMI video inputs 2) Support MPEG4 AVC/H.264 video encoding format. 3) 1 ASI Input for re-mux 4) 1xUSB Player (Insert the USB Flash drive with "xxx.ts" videos in NDS3536S and playback the content in an easy way. 5) IP input over UDP and RTP via GE Port 6) Each carrier out channel process maximum 32 IP from the GE Port (UDP/RTP Protocol)7) MPEG1 Layer II, LC-AAC and HE-AAC Audio Encoding, AC3 Pass thorugh and audio gain adjustment. 8) Support 8 groups DVB-T multiplexing. 9) Support 1 ASI out as mirror of one of the RF output carrier- Optional 10) Support 8 MPTS IP Out over UDP/RTP/RTSP-DVB-T RF Out.11) Support Logo, Caption and QR Code insertion (Language Supported, English, Arabic, Hindi, Chinese, Russian)12. Support PID Remapping and Accurate PCR adjusting/PSI/SI Editing and inserting.13) Control via web management, and easy updates via web.
|
|---|
