ASTEL 1-5/8 Inch Flexible RF Feeder Cable – 50 Ohms

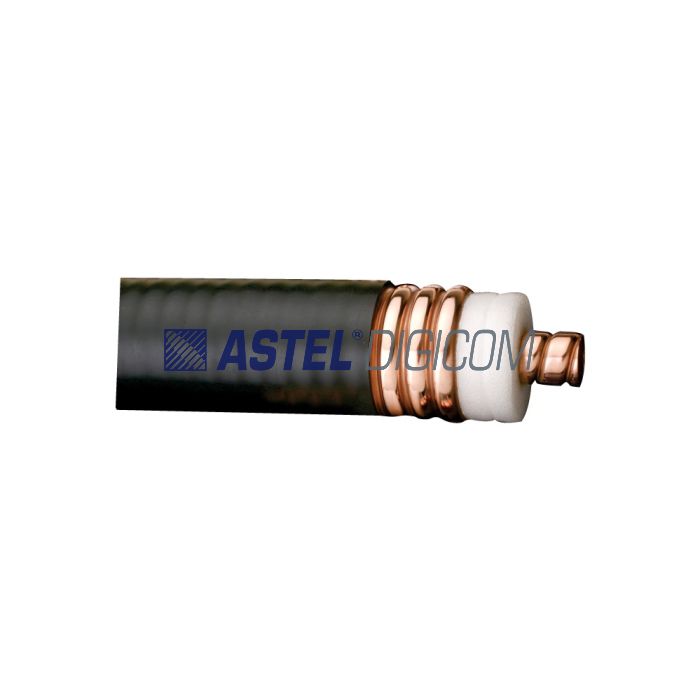

ASTEL 1-5/8 Inch Flexible Series is a 50 Ohm RF coaxial feeder cable designed for professional antenna feeder and wireless communication infrastructure. Its construction features a helical copper tube inner conductor, foamed PE dielectric, longitudinally welded spiral copper tube outer conductor and durable PE jacket.
The cable provides 50 ± 2 Ohm impedance, return loss of ≥23 dB, VSWR of 1.15 and an 88% propagation velocity ratio. With a 49.50mm nominal jacket diameter and operating temperature range of -40°C to +70°C, it is suitable for large RF feeder installations requiring stable electrical performance and mechanical durability.
Key Features
-
1-5/8 inch flexible RF coaxial feeder cable
-
Product model: 1 5/8" Flex
-
Characteristic impedance: 50 ± 2 Ohms
-
Helical copper tube inner conductor
-
Centre conductor diameter: 17.30 ± 0.3mm
-
Foamed PE dielectric
-
Dielectric diameter: 42.70mm
-
Longitudinally welded spiral copper tube outer conductor
-
Outer conductor diameter: 46.50 ± 0.5mm
-
PE outer jacket
-
Overall jacket diameter: 49.50 ± 0.5mm
-
Inner conductor DC resistance: 1.50 Ohms/km at 20°C
-
Outer conductor DC resistance: 0.60 Ohms/km at 20°C
-
Nominal capacitance: 76.60 pF/m
-
Return loss: ≥23 dB
-
VSWR: 1.15
-
Propagation velocity ratio: 88%
-
Insulation resistance: ≥10,000 MΩ·km
-
DC breakdown voltage: 15,000V
-
Test voltage: 10,000V
-
Specified tensile strength: ≤3,000N
-
Minimum bending radius (repeated): 500mm
-
Minimum bending radius (single): 280mm
-
Operating temperature: -40°C to +70°C
-
Installation temperature: -20°C to +70°C
-
500m reel weight: approximately 498kg
-
Suitable for professional RF antenna feeder installations
-
Designed for wireless communication infrastructure
